Connector End Views
Connector End Views

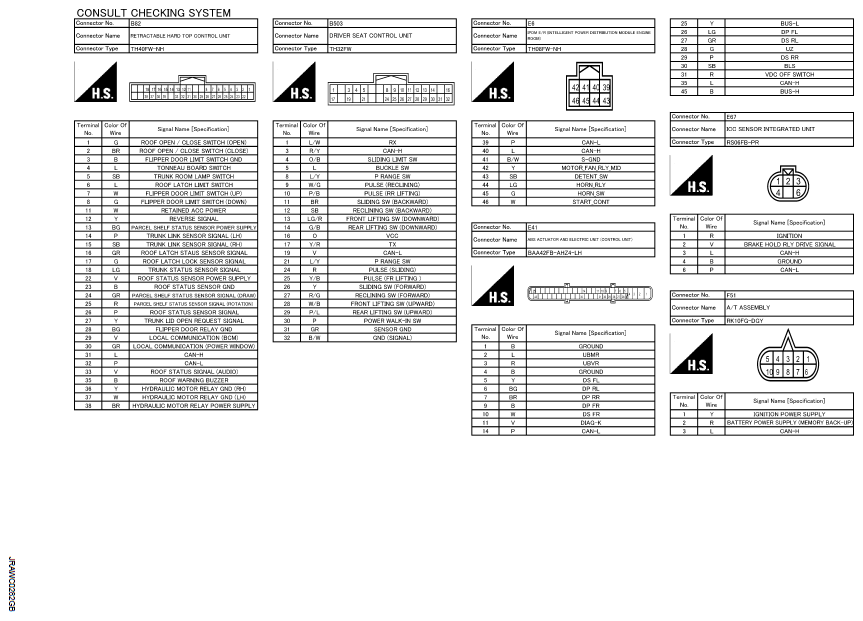

Fig 1: Consult/GST Checking System Connector End Views (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

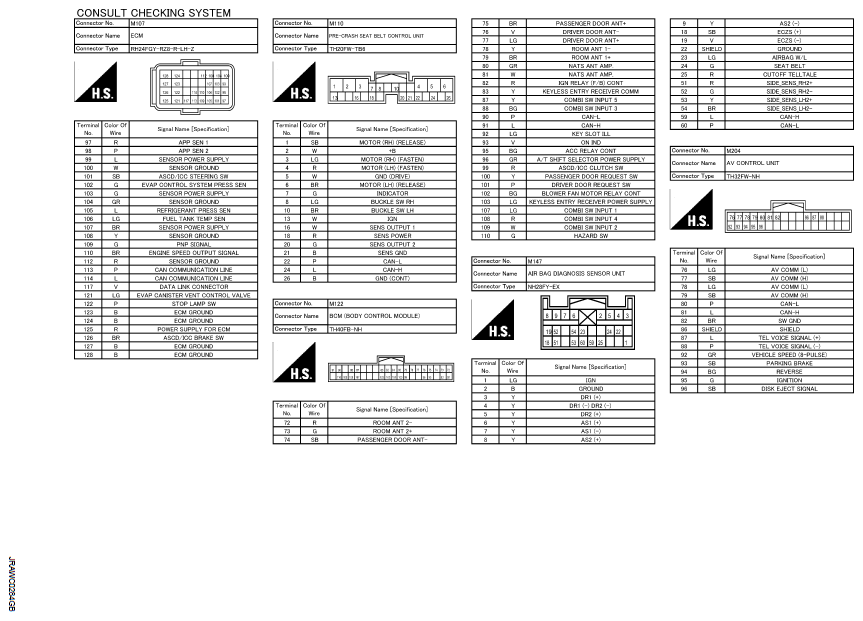

Fig 2: Consult/GST Checking System Connector End Views (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

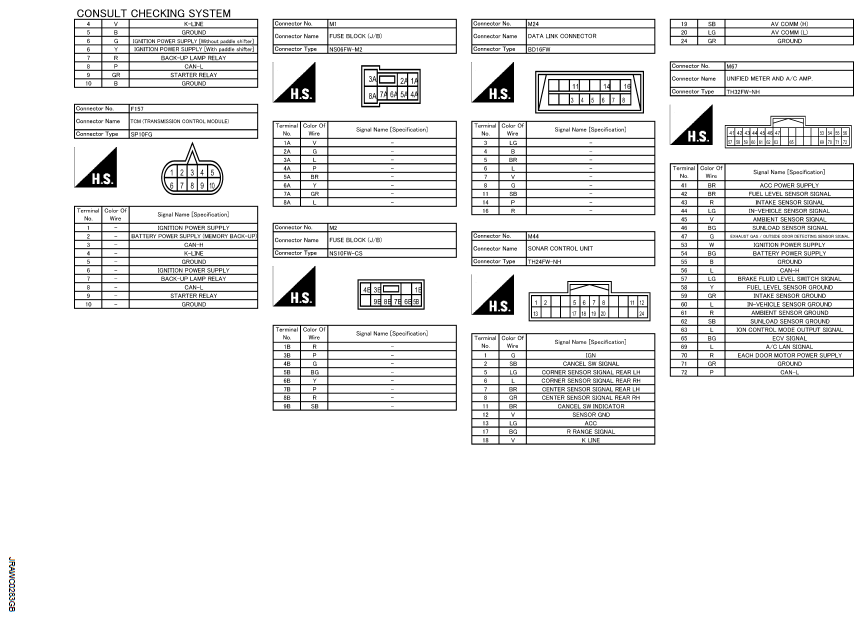

Fig 3: Consult/GST Checking System Connector End Views (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Consult/GST Checking System Connector End Views (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
