Drive Belt
›
DRIVE BELT: Exploded View
DRIVE BELT: Exploded View

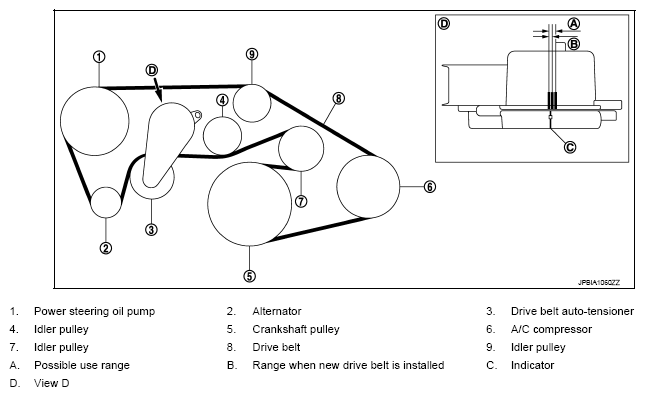

Fig 1: Exploded View Of Drive Belt With Routing
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
