Home
›
Infiniti
›
2014
›
Q60 Base, 2D Convertible, Automatic Trans
›
Repair and Diagnosis
›
Steering
›
Power Steering
›
Steering System (Convertible)
›
Removal And Installation
›
Lower Shaft
›
Exploded View
Exploded View

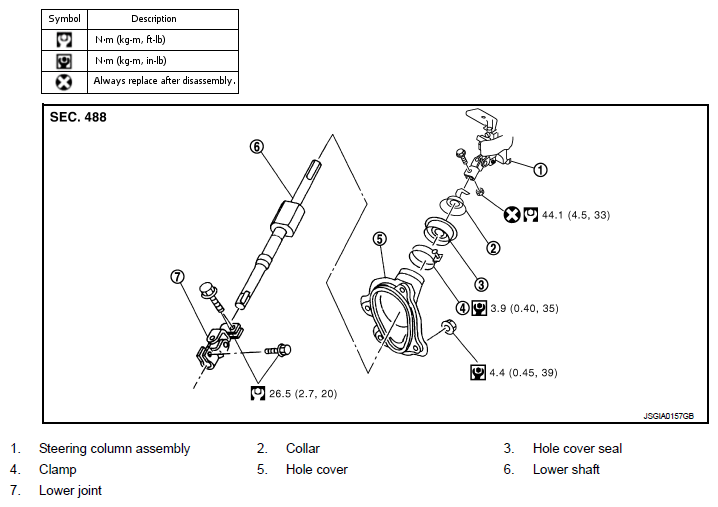

Fig 1: Exploded View Of Lower Shaft With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
