Removal and Installation: Installation

Note the following, and install in the reverse order removal.

CAUTION:

Insert the tip of parking rod between the parking pole and the parking actuator support when assembling the rear extension assembly.
Never reuse drain plug gasket.

Refer to the followings when installing output speed sensor.
CAUTION:
- Never subject it to impact by dropping or hitting it.
- Never disassemble.
- Never allow metal filings, etc. to get on the sensor's front edge magnetic area.
- Never place in an area affected by magnetism.
Refer to the followings when installing rear extension assembly.
- Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in the figure below.
  Sealant starting point and endpoint (A): Start and finish point shall be in the center of two bolts.

  Overlap width of sealant starting point and endpoint (B): 3 - 5 mm (0.12 - 0.20 in)

  Sealant width (C): 1.0 - 2.0 mm (0.04 - 0.08 in)

  Sealant height (C): 0.4 - 1.0 mm (0.016 - 0.04 in)

  Fig 1: Identifying Sealant Starting Point And Endpoint Overlap Width
  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION: Completely remove all moisture, oil and old sealant, etc. from transmission case and rear extension assembly mounting surfaces.
- Tighten rear extension assembly bolts to the specified torque.

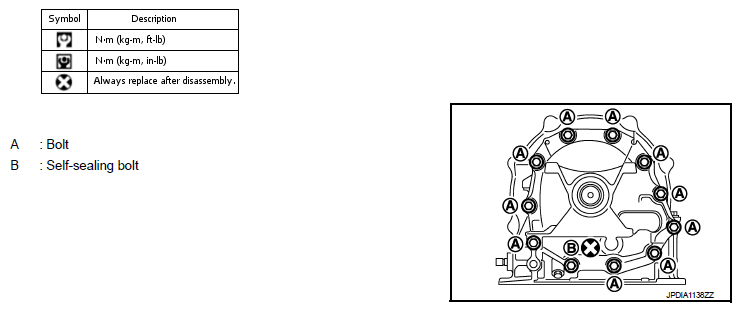

  Fig 2: Tightening Of Bolts Rear Extension Assembly
  Courtesy of NISSAN NORTH AMERICA, INC.
Refer to the followings when installing oil pan (2) (with oil pan gasket) and clips (1) to transmission case.

Fig 3: Locating Oil Pan Mounting Bolt
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Never reuse oil pan gasket and oil pan mounting bolts.
- Install oil pan gasket in the direction to align hole position.
- Install it so that drain plug comes to the position as shown in the figure below.
- Be careful not to pinch harnesses.
- Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
- Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure below after temporarily tightening them. Tighten necessary oil pan mounting bolts with specified torque.

  Fig 4: Tightening Oil Pan Mounting Bolts To Specified Torque
  Courtesy of NISSAN NORTH AMERICA, INC.
