Case And Extension

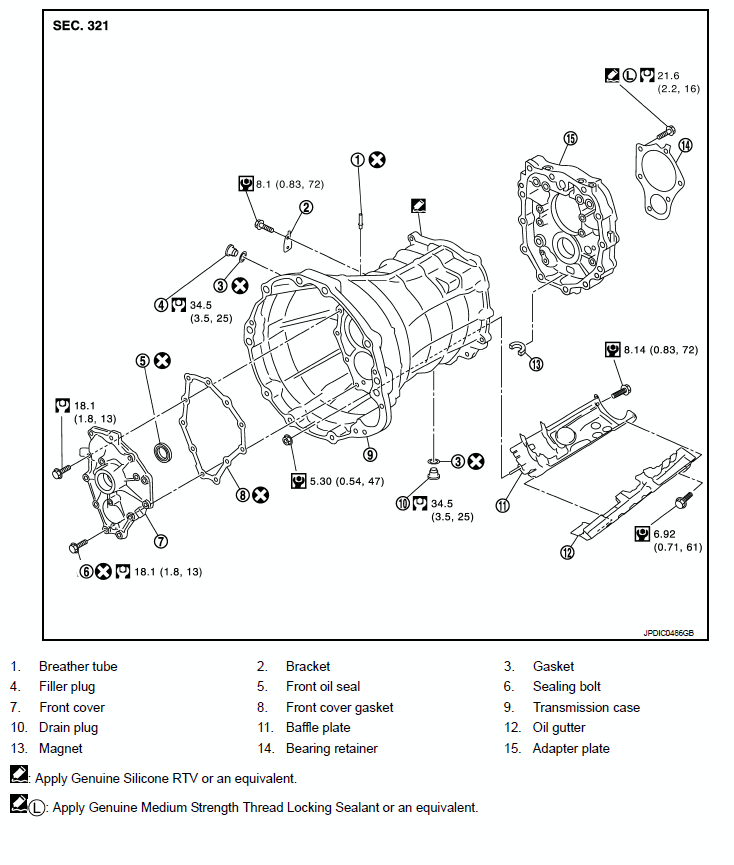

Fig 1: Exploded View Of Transmission Assembly (Case And Extension) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Triangle: Refer to "CASE AND EXTENSION" in "ASSEMBLY " for the locations.

Refer to "COMPONENTS " for symbols not described on the above.

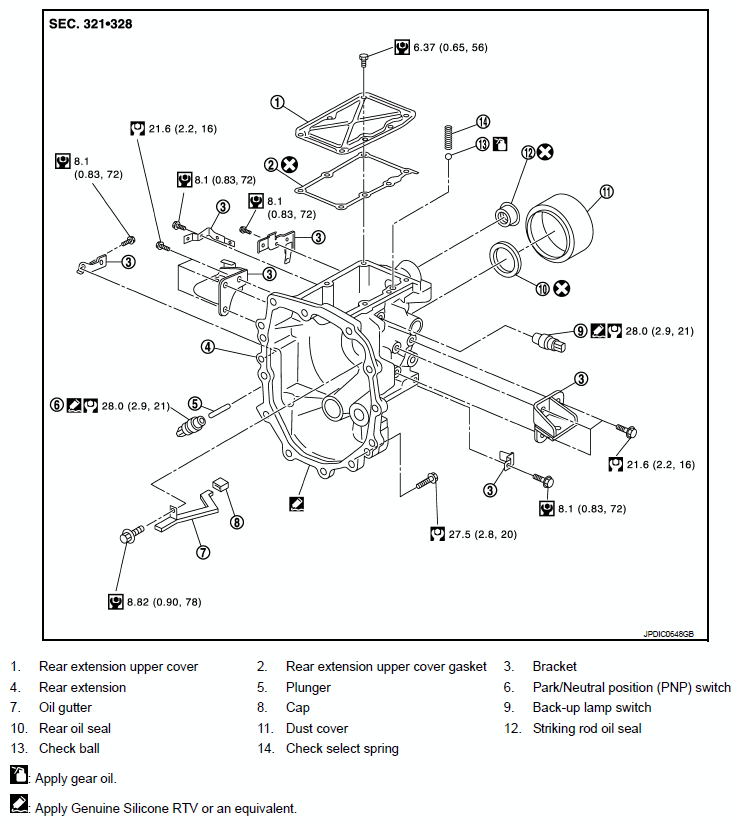

Fig 2: Disassembled View Of Transmission Assembly (Case And Extension) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
