Shift Fork And Fork Rod

Fig 1: Exploded View Of Shift Fork And Fork Rod With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

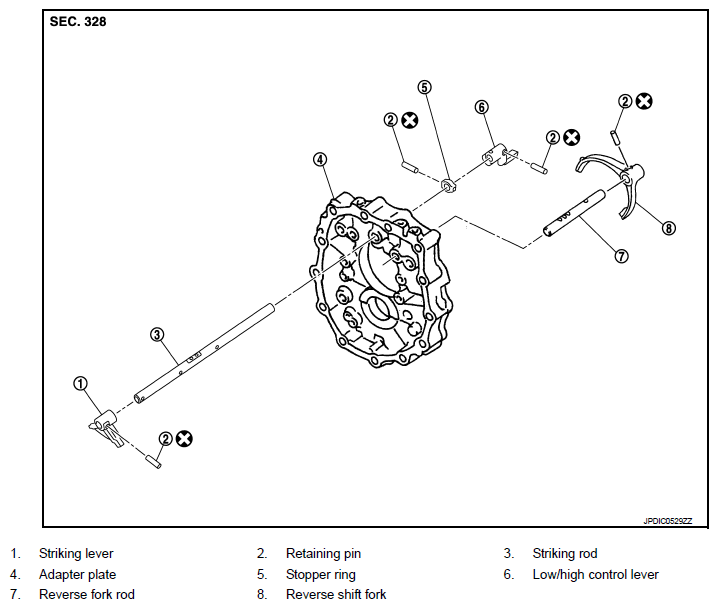

Fig 2: Disassembled View Of Shift Fork And Fork Rod

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for the symbols in the figure.

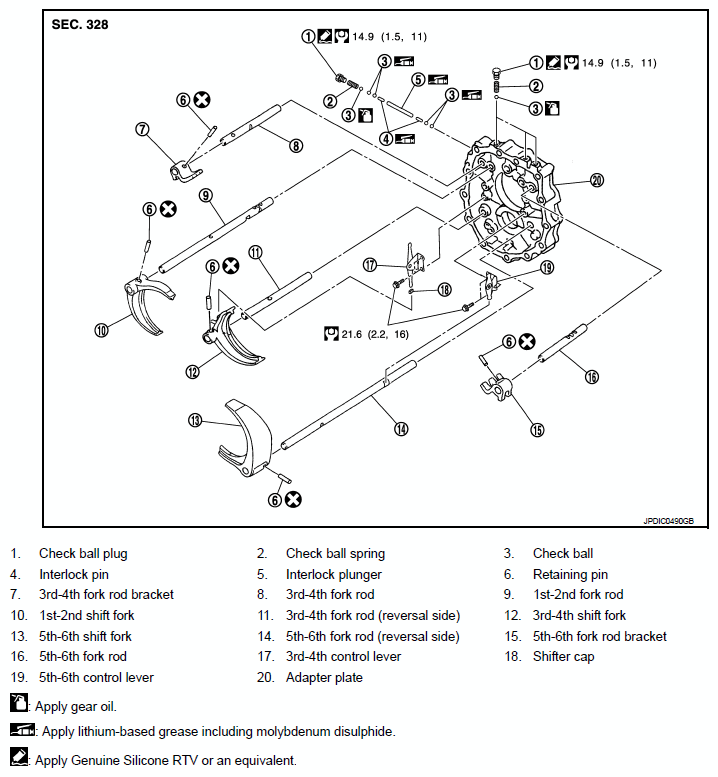

Fig 3: Disassembled View Of Shift Fork And Fork Rod With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
