Exploded View

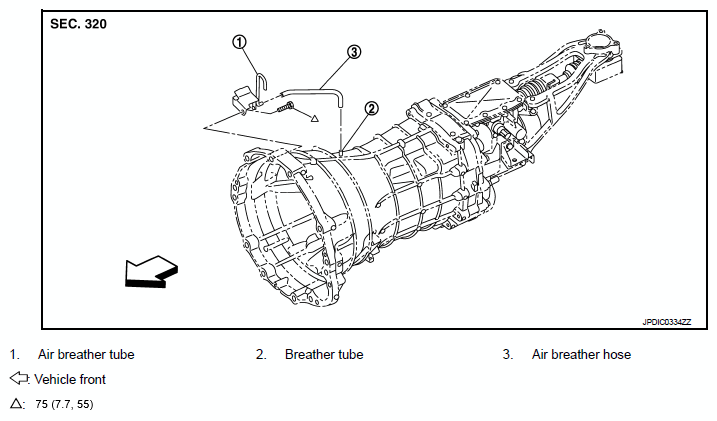

Fig 1: Exploded View Of Transmission Assembly

Courtesy of NISSAN NORTH AMERICA, INC.

Triangle: Refer to "INSTALLATION" in "REMOVAL AND INSTALLATION " for the locations and tightening torque.
