Section 30 (Security Control System (Convertible))
›
Ecu Diagnosis Information
›
IPDM E/R (Intelligent Power Distribution Module Engine Room)
›
Connector End Views
Connector End Views
WARNING:
This page is about a different variant/trim than selected.

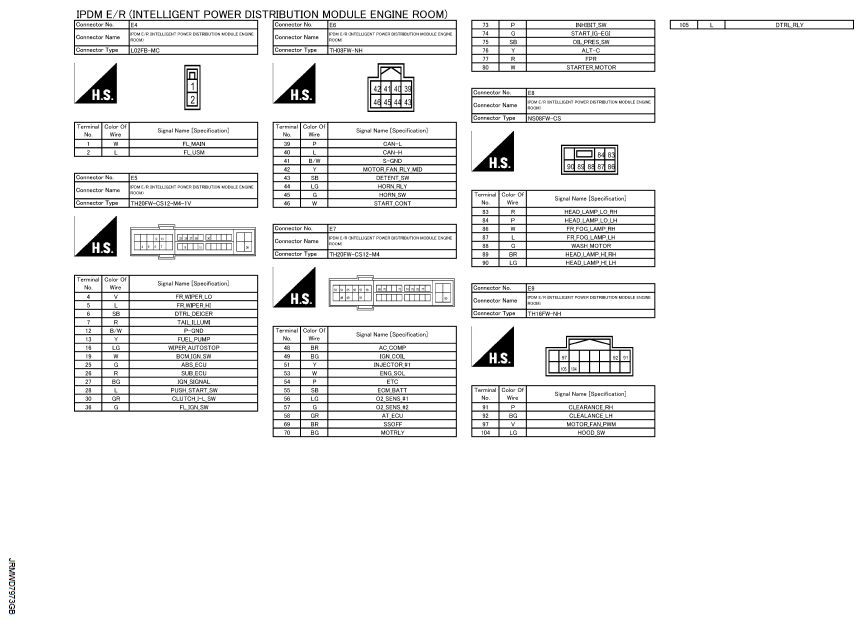

Fig 1: Intelligent Power Distribution Module Engine Room Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
