Engine Control System (Introduction) (VK56VD) (Except Hybrid)
›
System Description
›
Component Parts
›
Engine Control System
›
ENGINE CONTROL SYSTEM: Component Parts Location
›
Engine Compartment
Engine Compartment

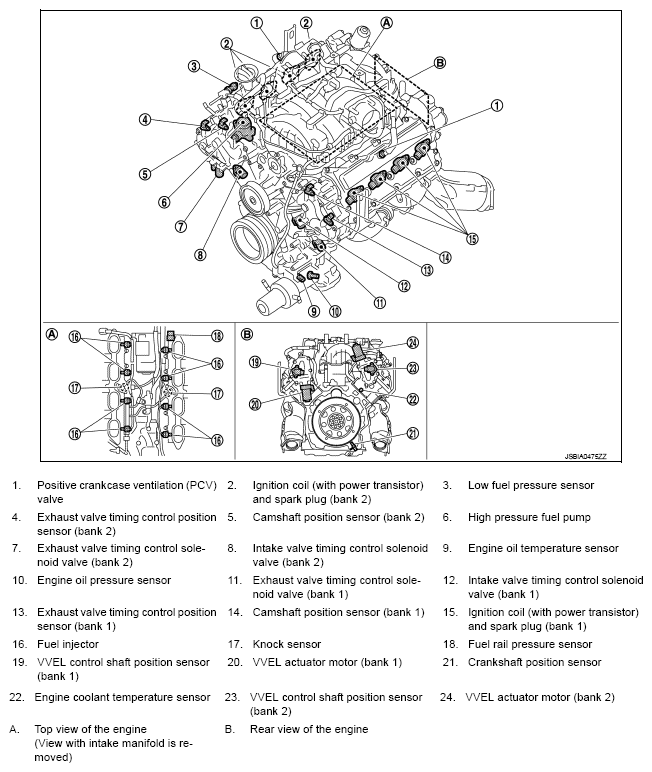

Fig 1: Engine Control System Components Location (Engine Compartment)
Courtesy of NISSAN NORTH AMERICA, INC.
