Intelligent Key System/Ready Set Function
›
INTELLIGENT KEY SYSTEM/READY SET FUNCTION: System Diagram
INTELLIGENT KEY SYSTEM/READY SET FUNCTION: System Diagram
WARNING:
This page is about a different variant/trim than selected.

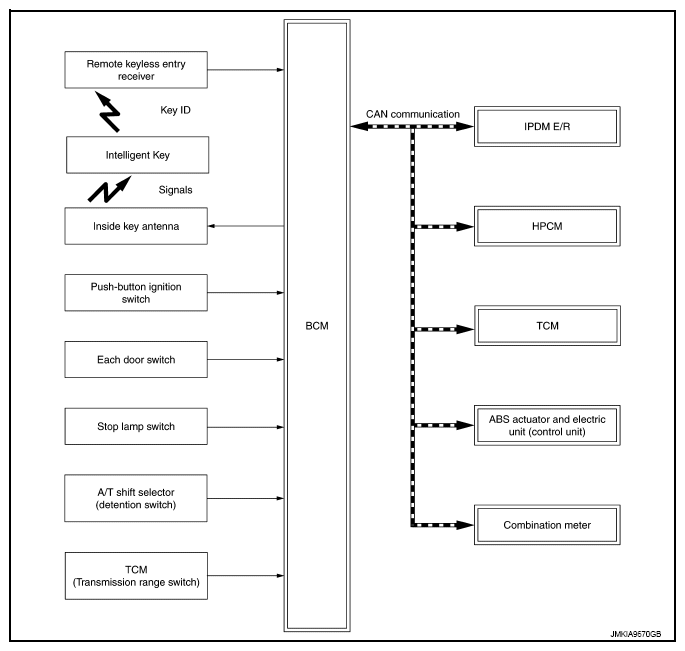

Fig 1: Intelligent Key System/Ready Set Function - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
