Connector End Views

WARNING: This page is about a different variant/trim than selected.

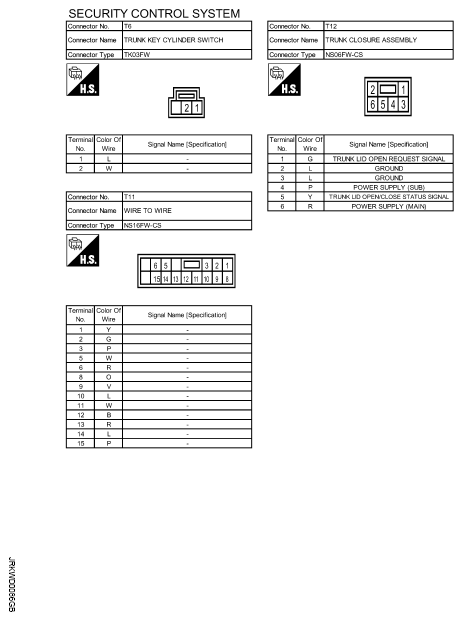

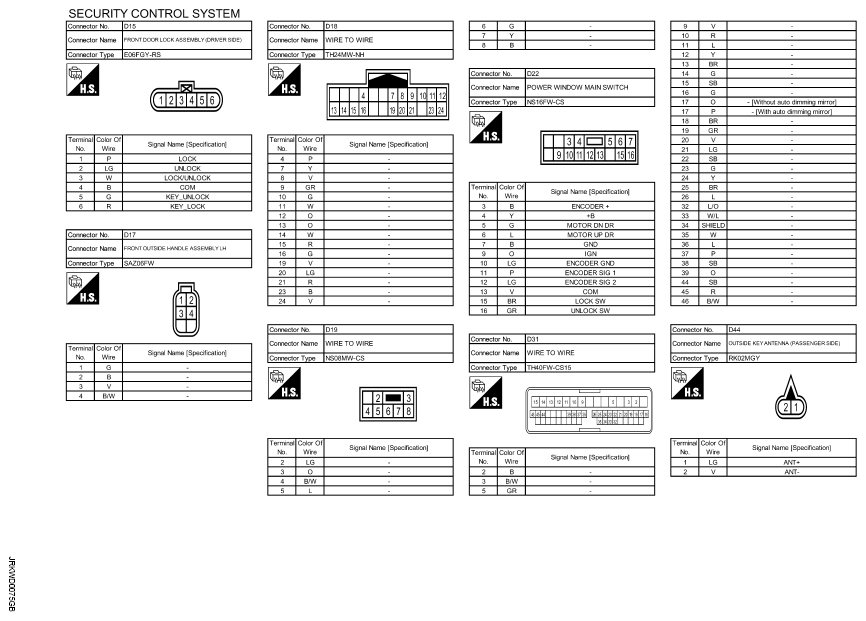

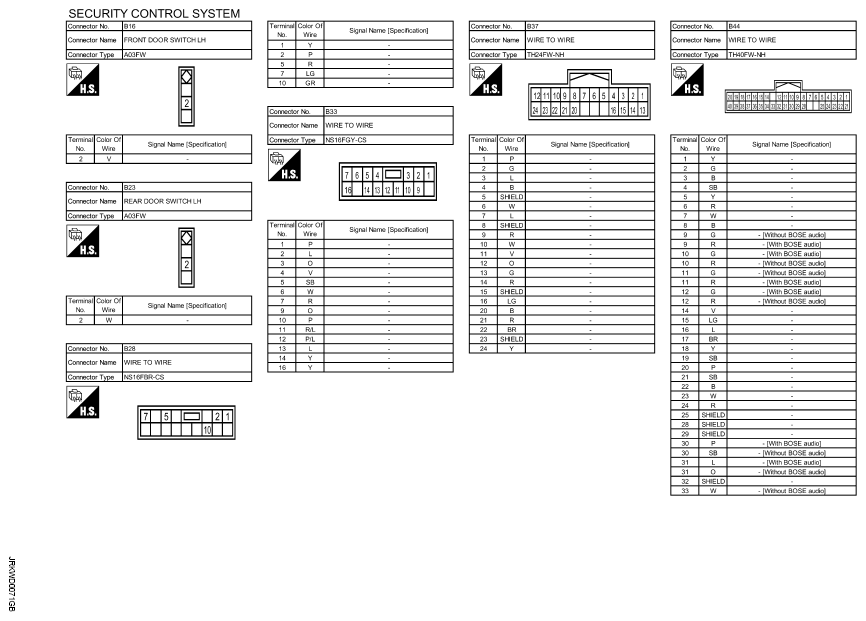

Fig 1: Security Control System Connector End Views (1 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

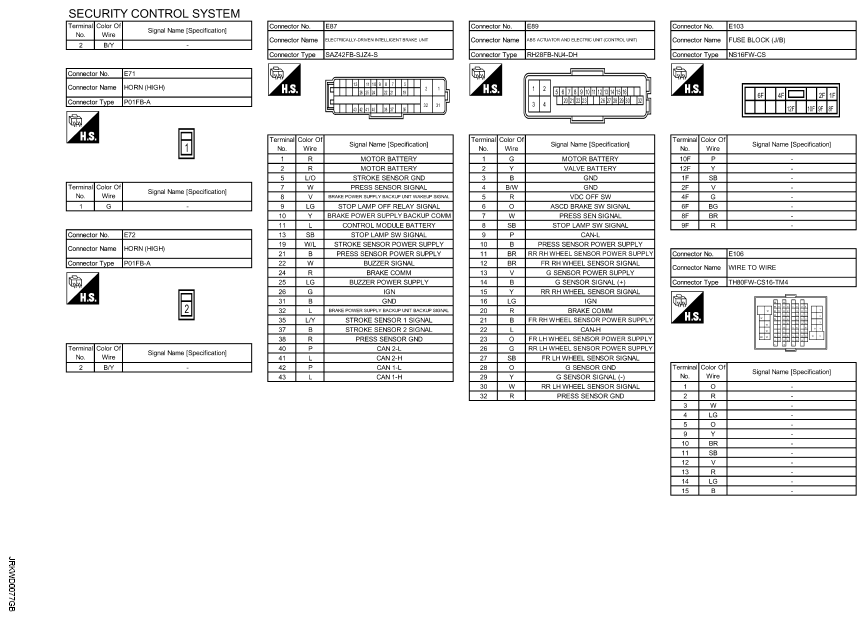

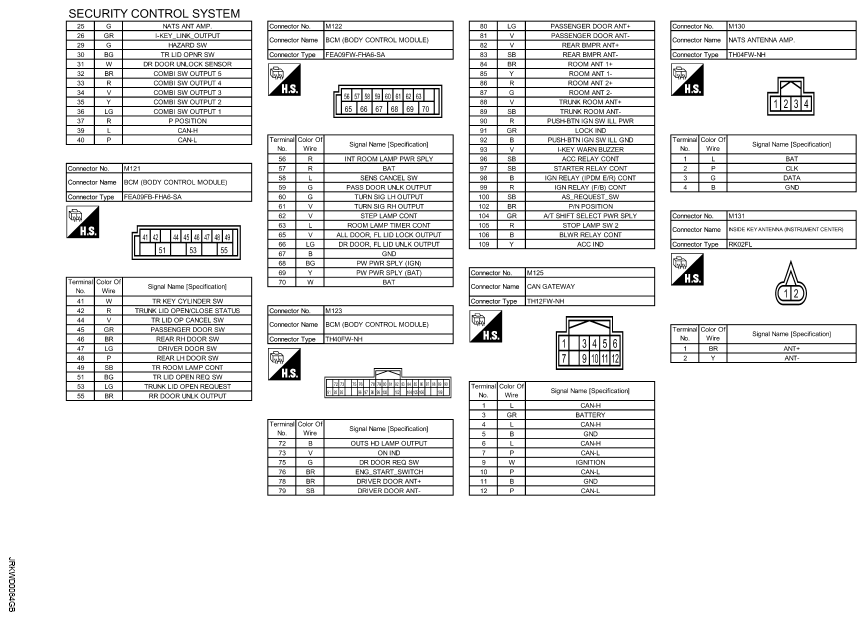

Fig 2: Security Control System Connector End Views (2 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

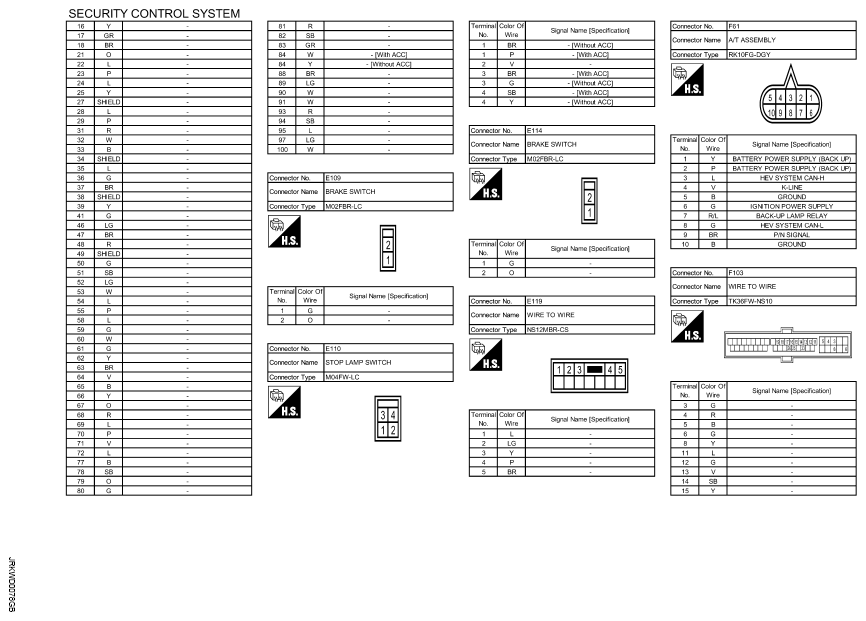

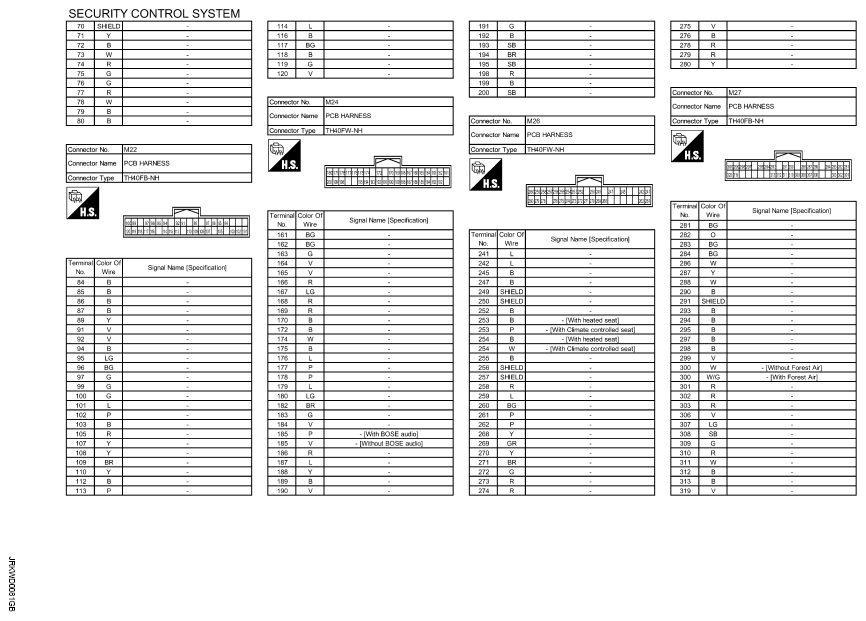

Fig 3: Security Control System Connector End Views (3 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

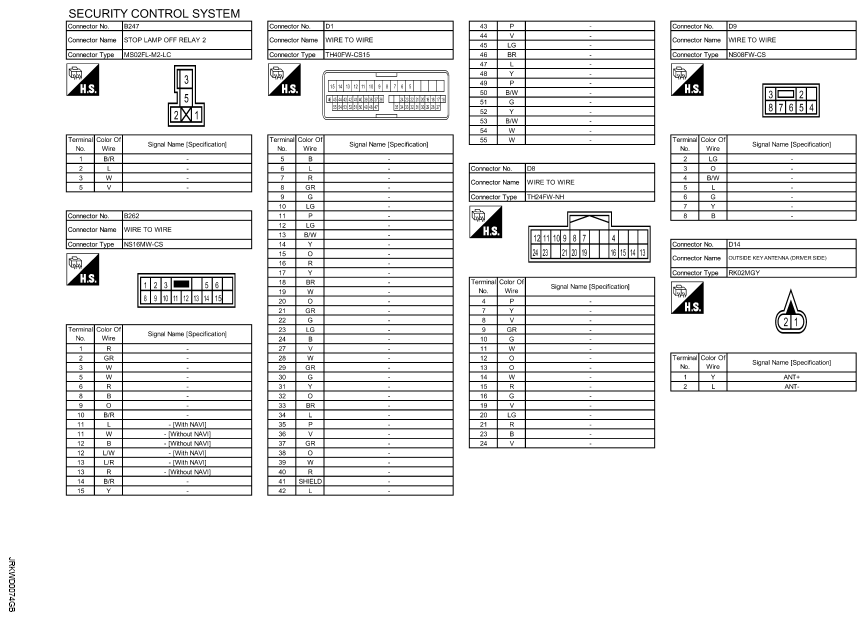

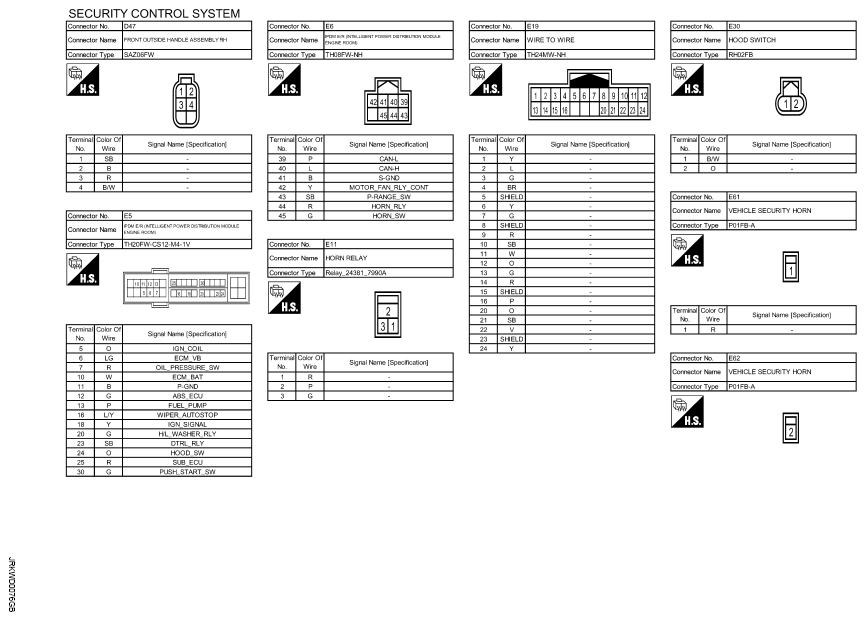

Fig 4: Security Control System Connector End Views (4 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

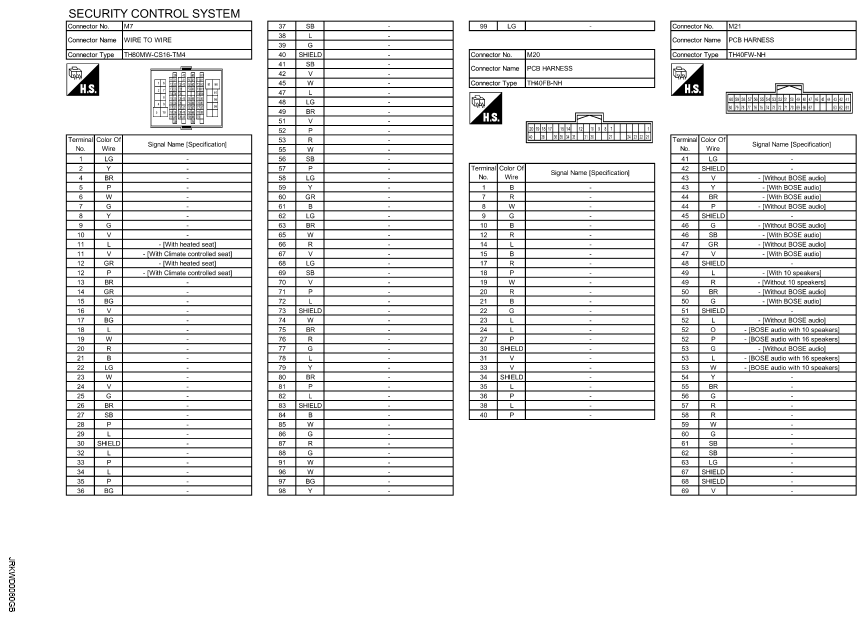

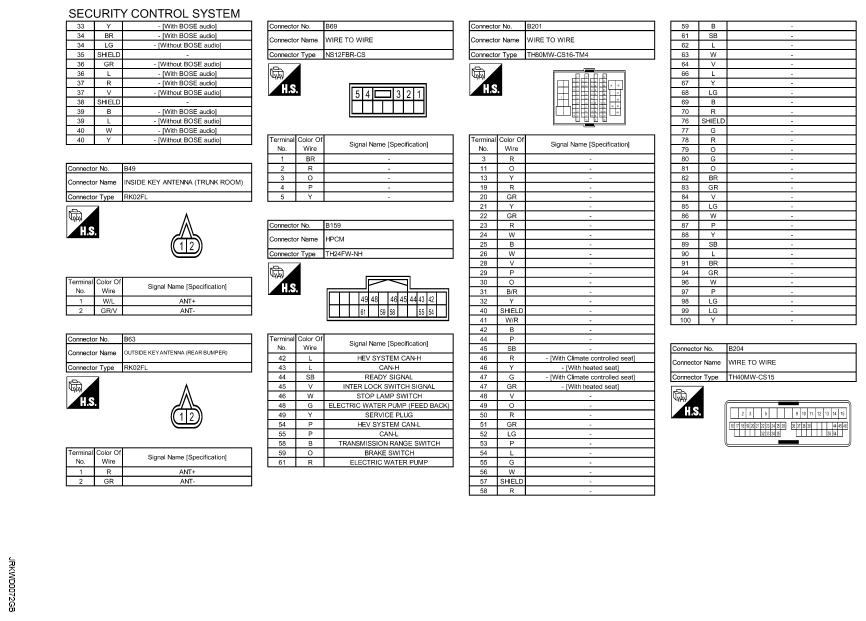

Fig 5: Security Control System Connector End Views (5 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

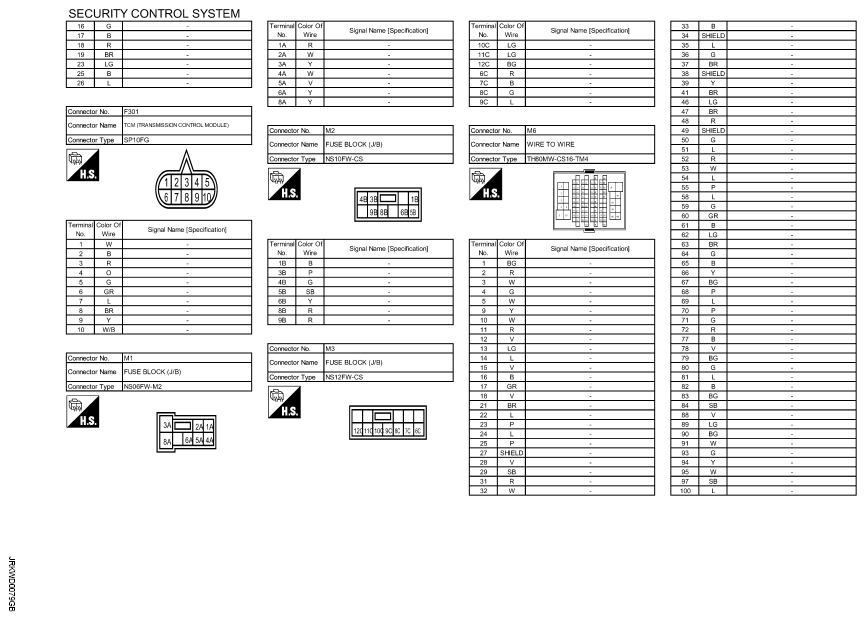

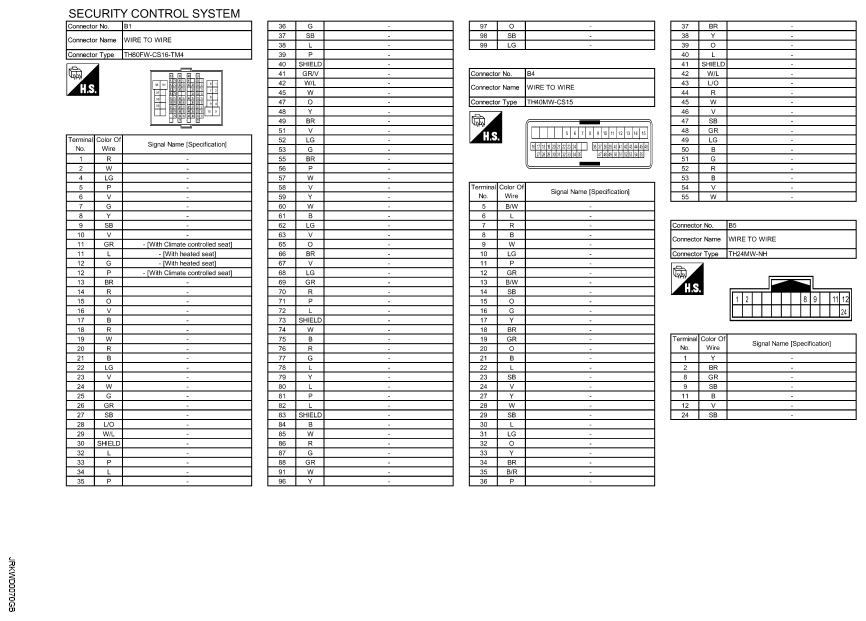

Fig 6: Security Control System Connector End Views (6 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

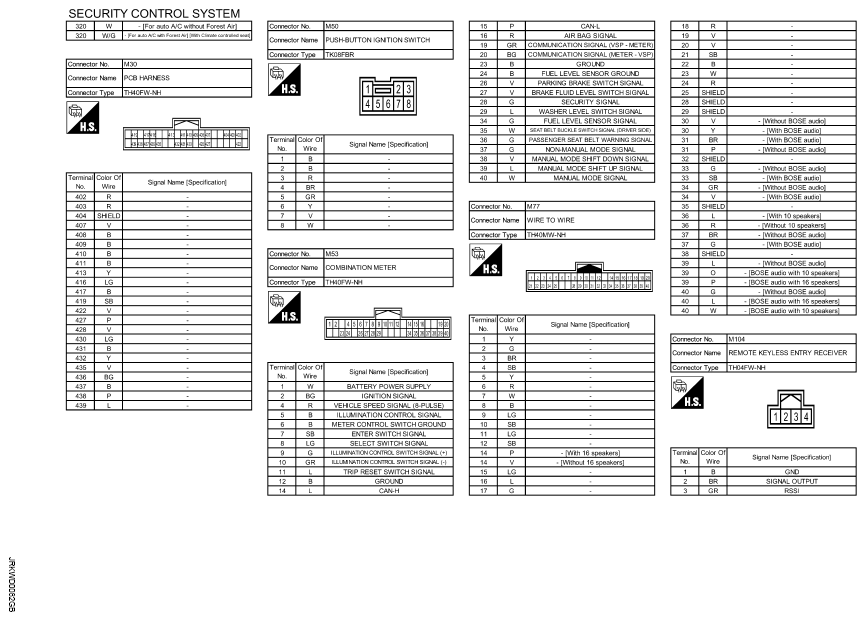

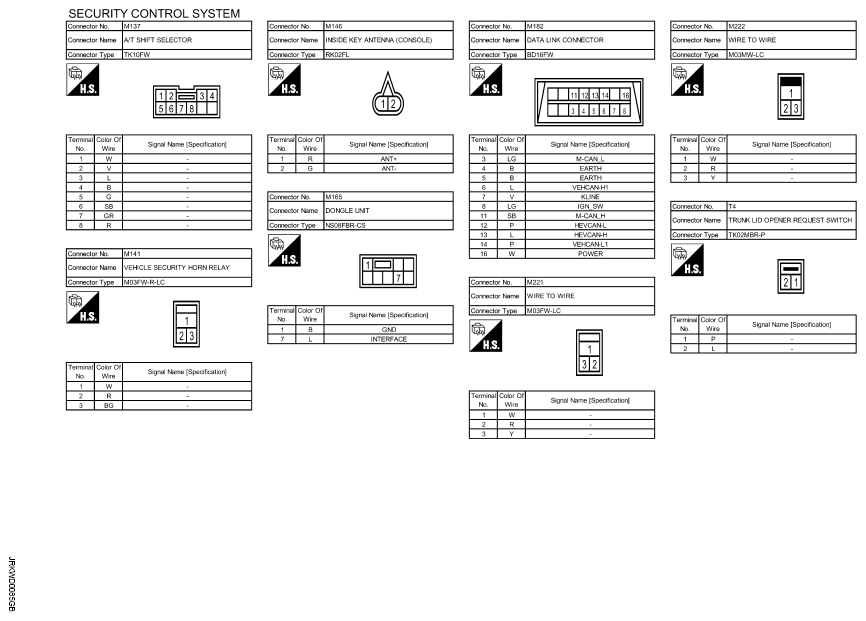

Fig 7: Security Control System Connector End Views (7 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

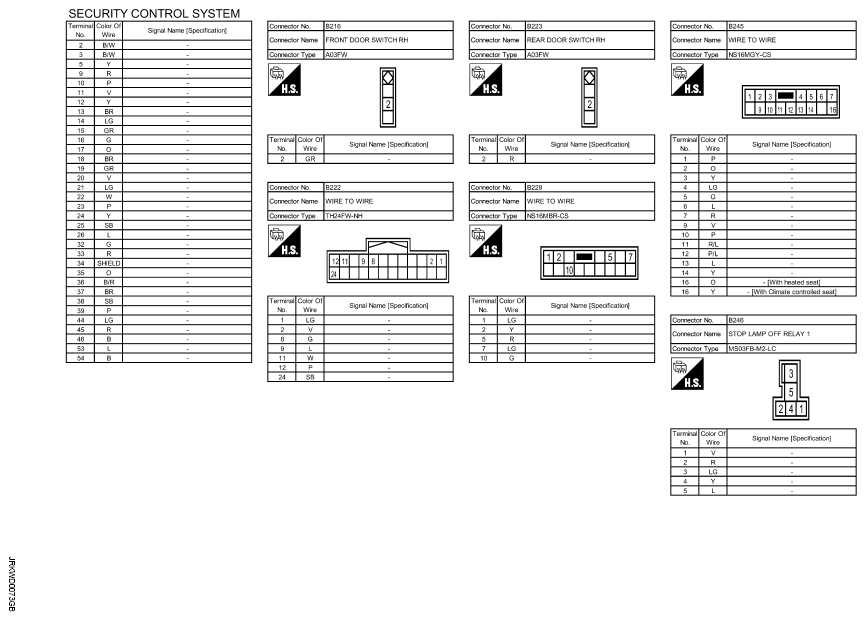

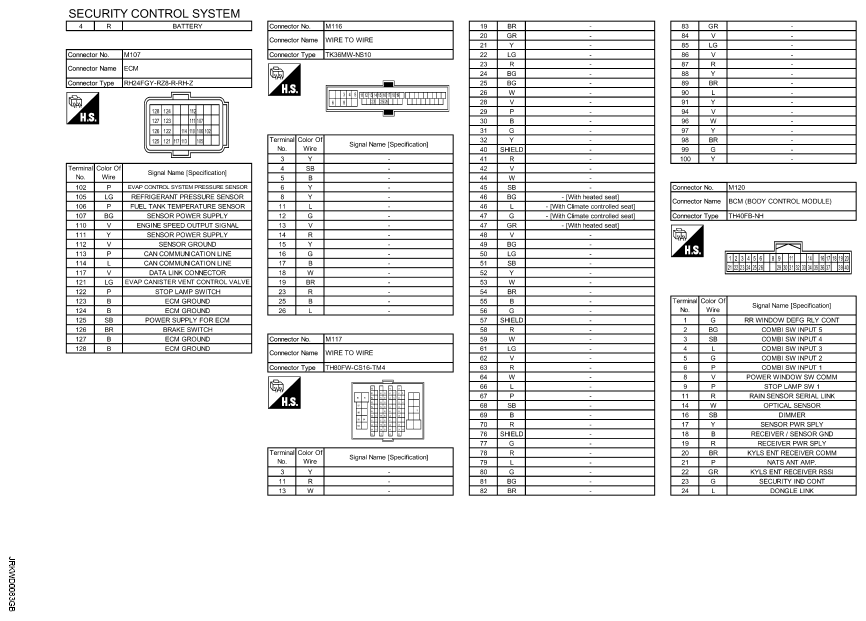

Fig 8: Security Control System Connector End Views (8 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Security Control System Connector End Views (9 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Security Control System Connector End Views (10 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Security Control System Connector End Views (11 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Security Control System Connector End Views (12 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Security Control System Connector End Views (13 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Security Control System Connector End Views (14 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Security Control System Connector End Views (15 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Security Control System Connector End Views (16 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Security Control System Connector End Views (17 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.
