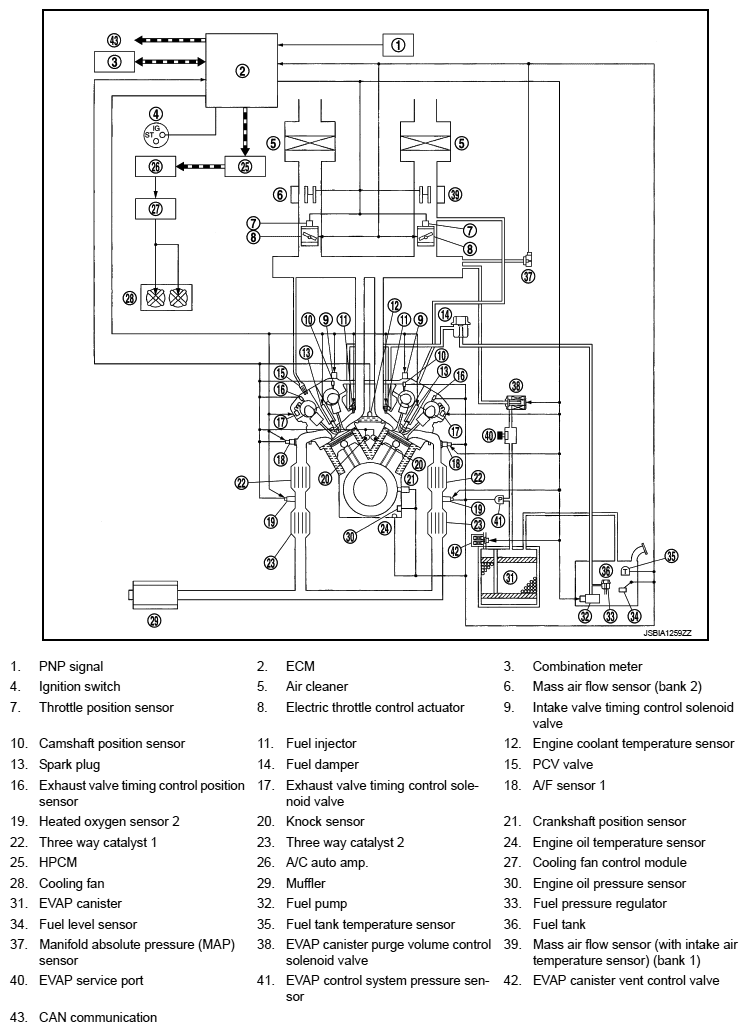

Home › Infiniti › 2014 › Q70 Hybrid › Repair and Diagnosis › Engine Performance › Testing & Diagnosis › Engine Control System (Introduction) (Hybrid) › System Description › System › Engine Control System › ENGINE CONTROL SYSTEM: System Description › System Diagram
