Removal And Installation
›
Around View Monitor Control Unit
›
Exploded View
Exploded View

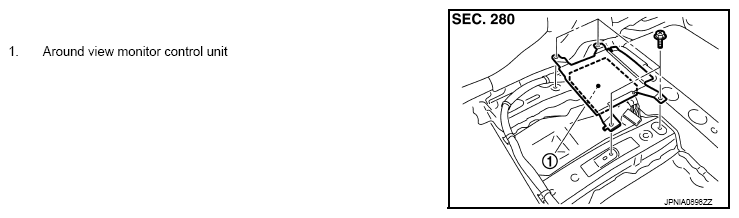

Fig 1: Exploded View Of Around View Monitor Control Unit
Courtesy of NISSAN NORTH AMERICA, INC.
