Exploded View: Notes

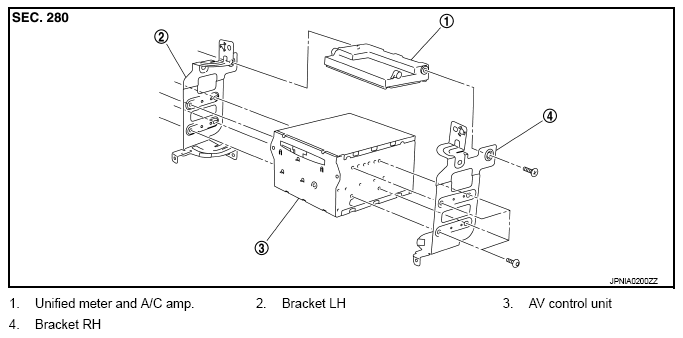

Fig 1: Exploded View Of AV Control Unit

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

Before replacing AV control unit, perform "Read/Write Configuration" to save or print current vehicle specification. For details, refer to "ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT: WORK PROCEDURE ".
Remove battery terminal and AV control unit after a lapse of 30 seconds or more after turning the ignition switch OFF.
