Connector Terminal Identification

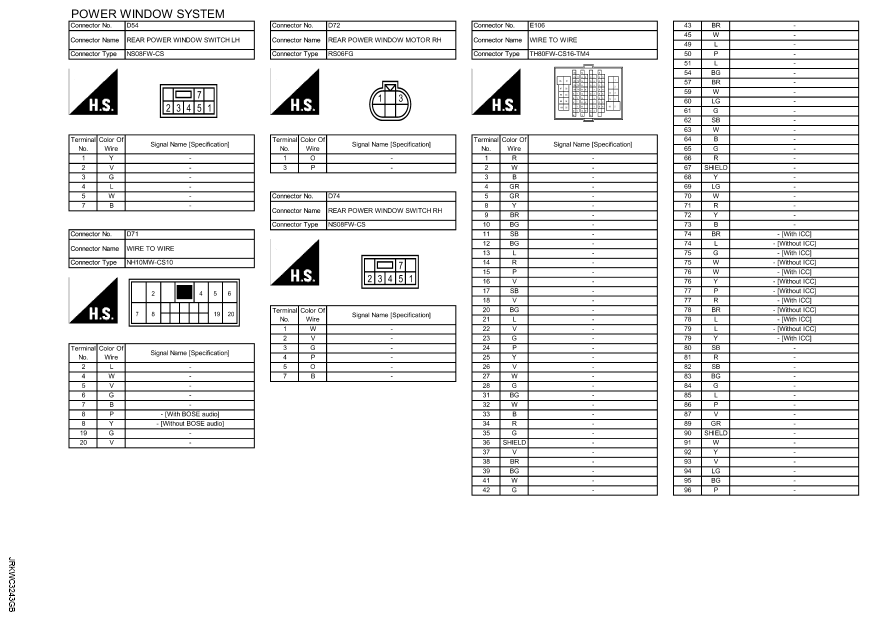

Fig 1: Power Window System Connector End View (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

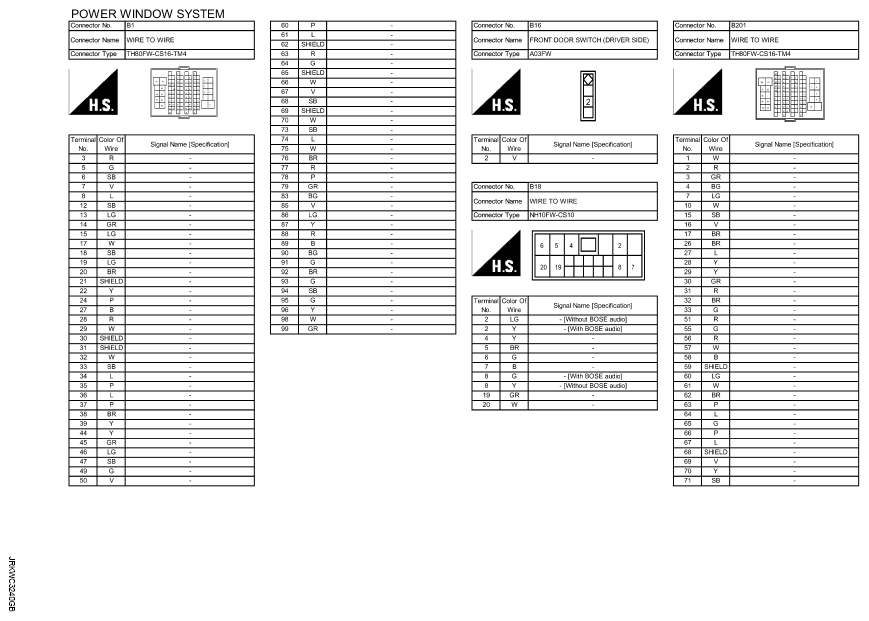

Fig 2: Power Window System Connector End View (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

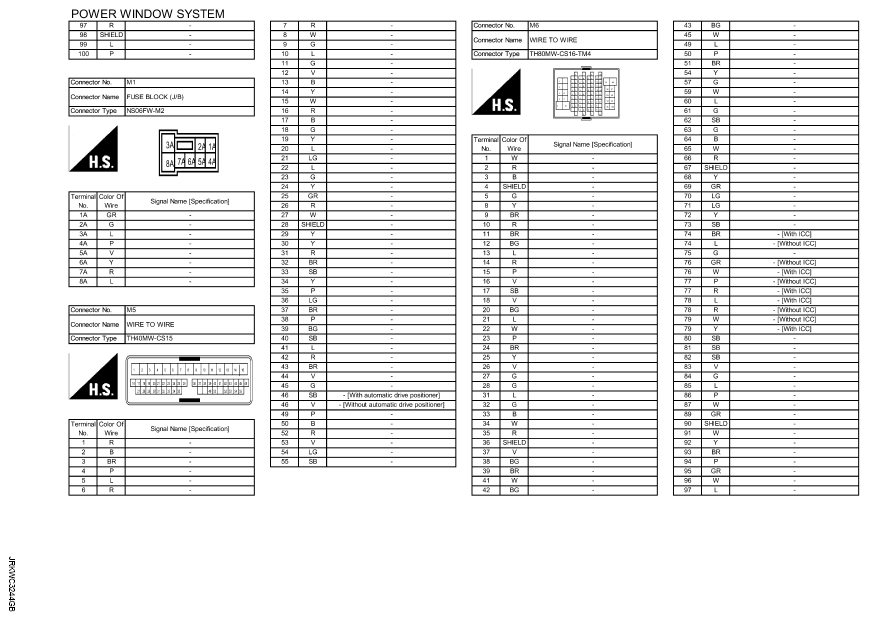

Fig 3: Power Window System Connector End View (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

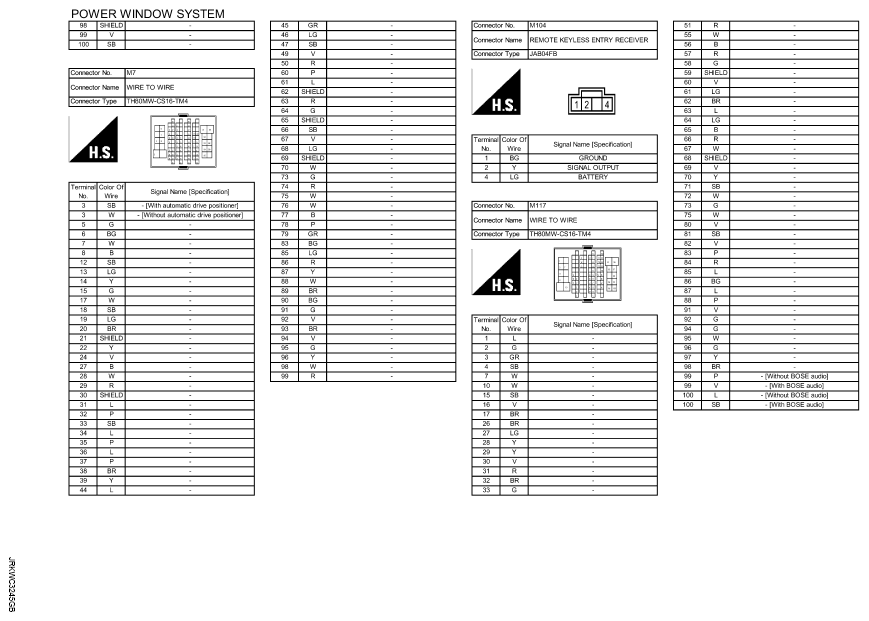

Fig 4: Power Window System Connector End View (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

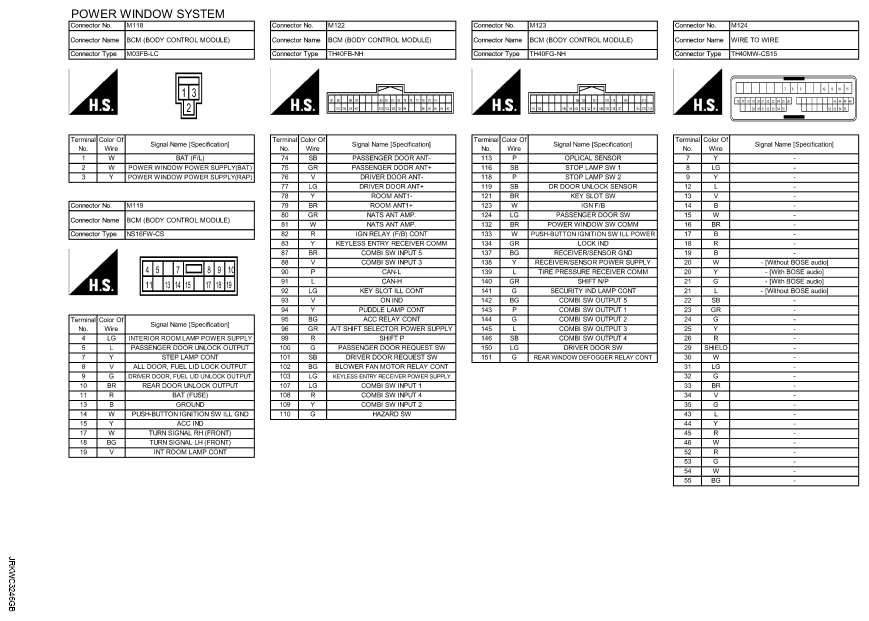

Fig 5: Power Window System Connector End View (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

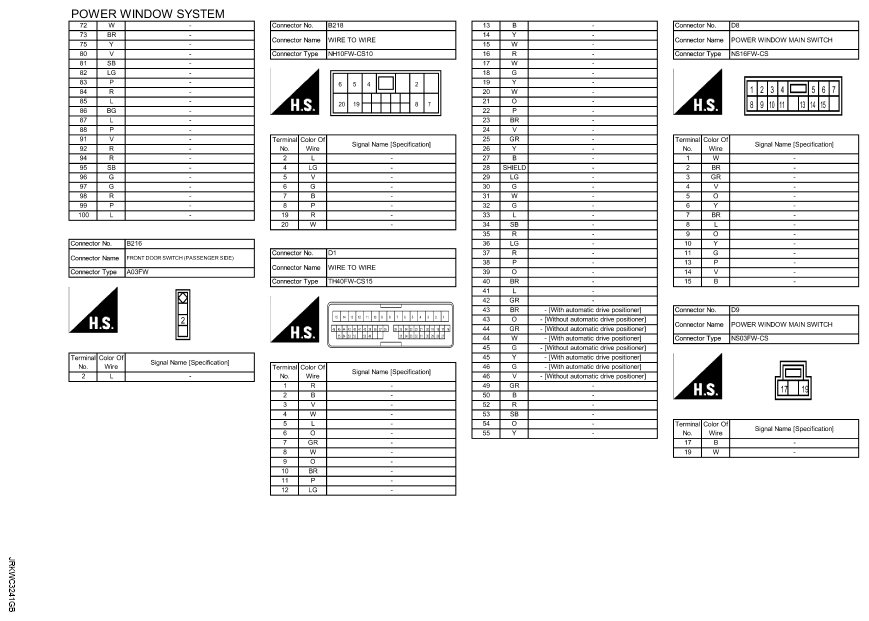

Fig 6: Power Window System Connector End View (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

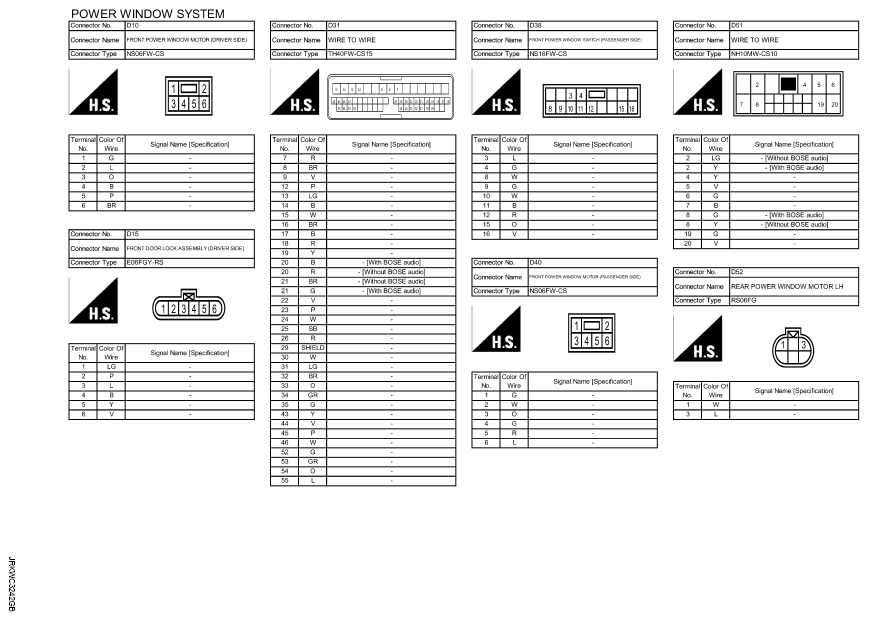

Fig 7: Power Window System Connector End View (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Power Window System Connector End View (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
