Exploded View

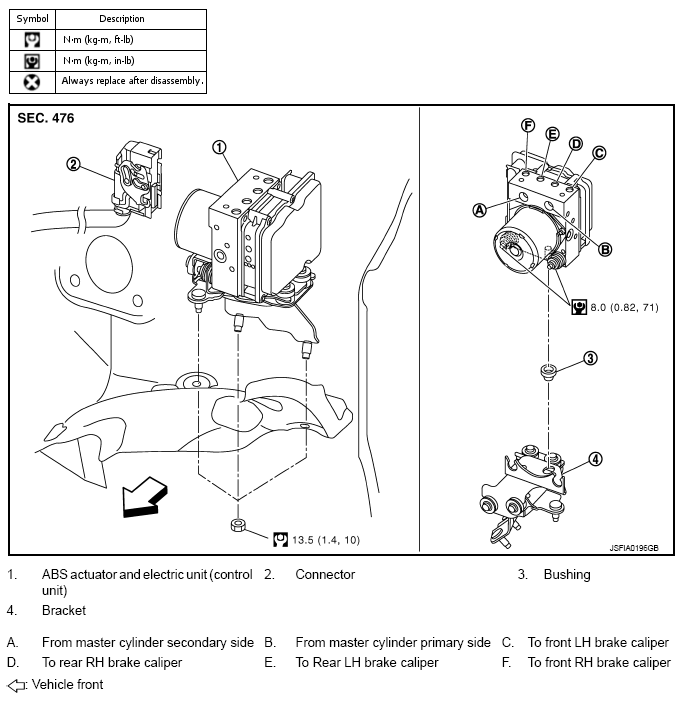

Fig 1: Exploded View Of ABS Actuator And Electric Unit With Torque Specifications (Control Unit)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol marks in the figure.
