Connector Terminal Identification

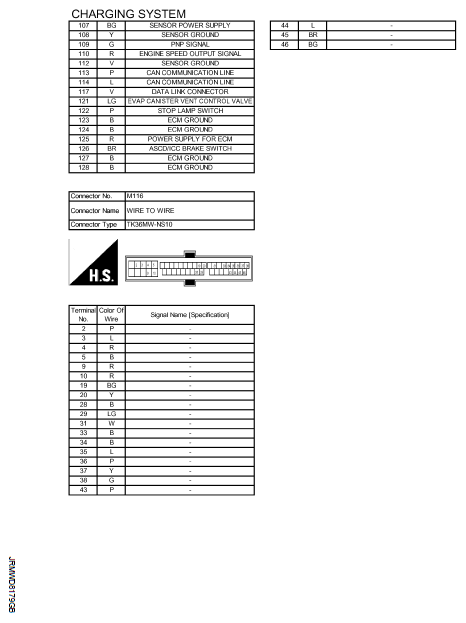

Fig 1: Charging System Connector End View (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

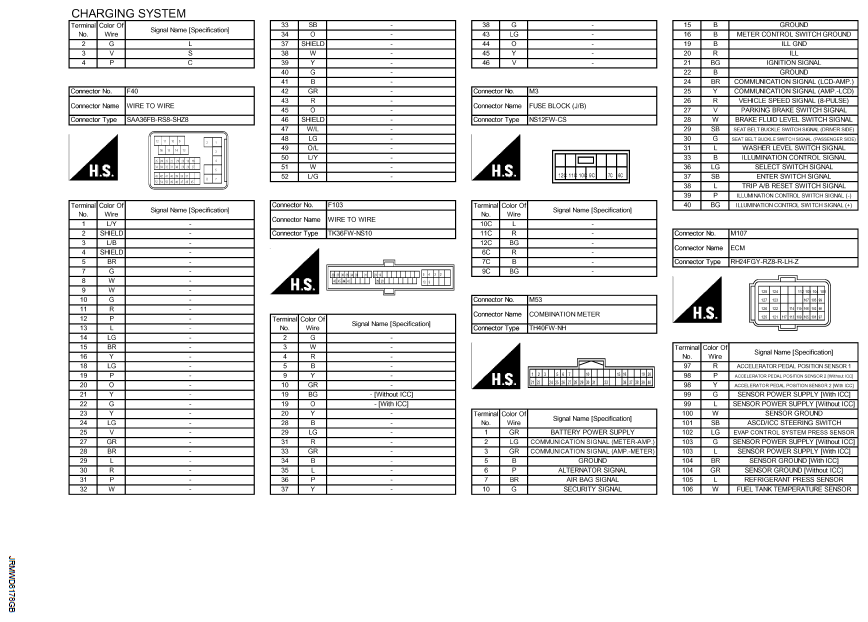

Fig 2: Charging System Connector End View (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

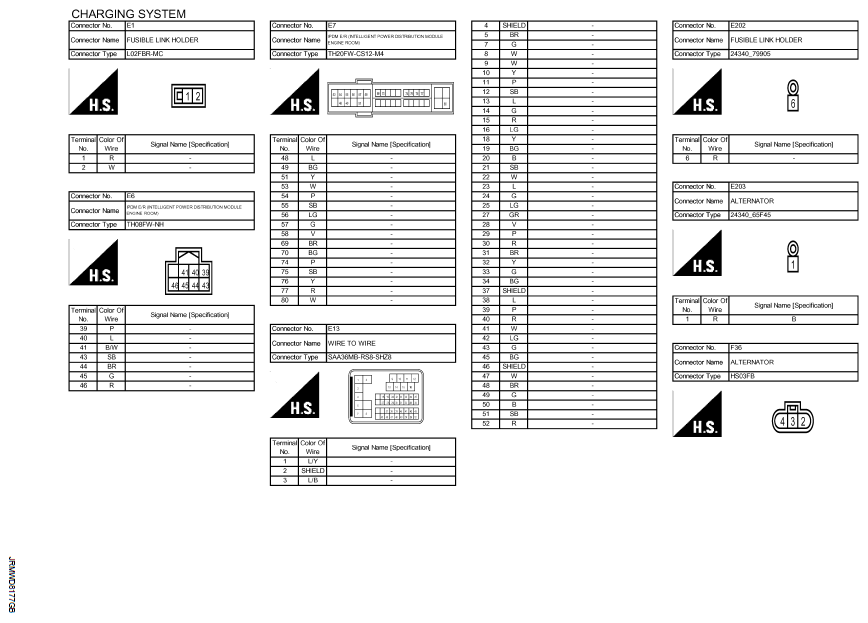

Fig 3: Charging System Connector End View (3 Of 3)
