2WD: Exploded View: Removal

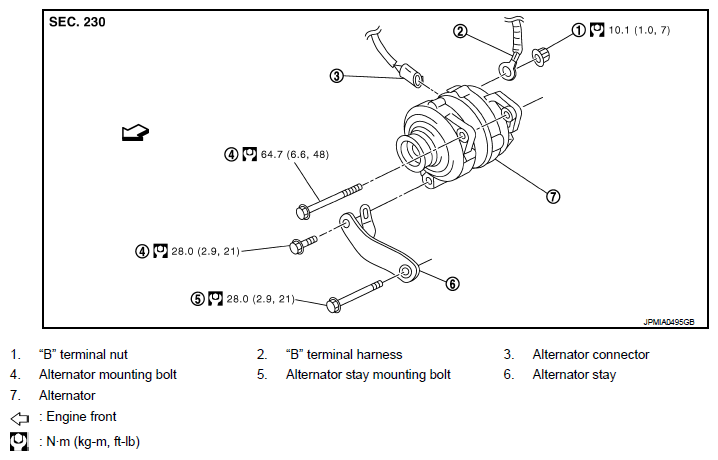

Fig 1: Exploded View Of Alternator (2WD) With Torque Specifications
G09175195Courtesy of NISSAN NORTH AMERICA, INC.
