AWD: Exploded View
›
Disassembly
AWD: Exploded View: Disassembly

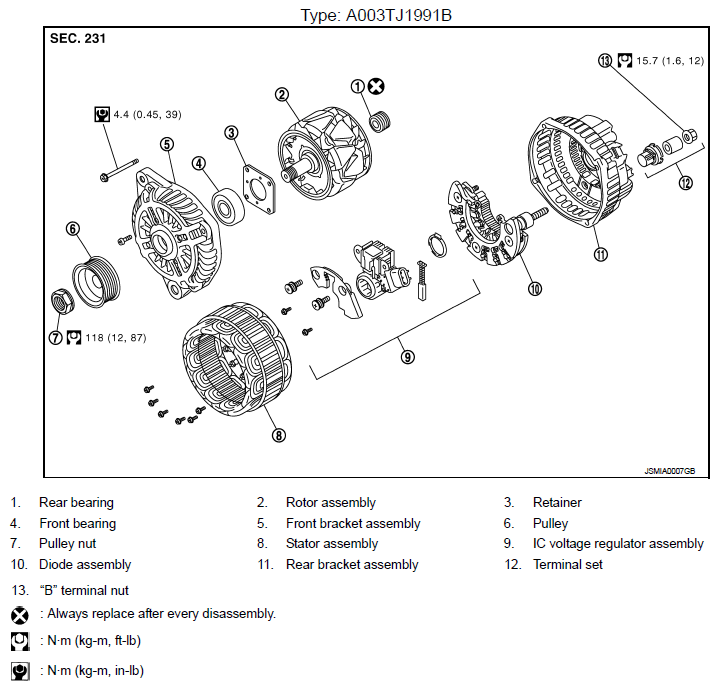

Fig 1: Disassembled View Of Alternator (Type: A003TJ1991B) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
