Repair and Diagnosis
›
Engine Mechanical
›
Engine Mechanical
›
Periodic Maintenance
›
Drive Belt
›
Exploded View
Exploded View

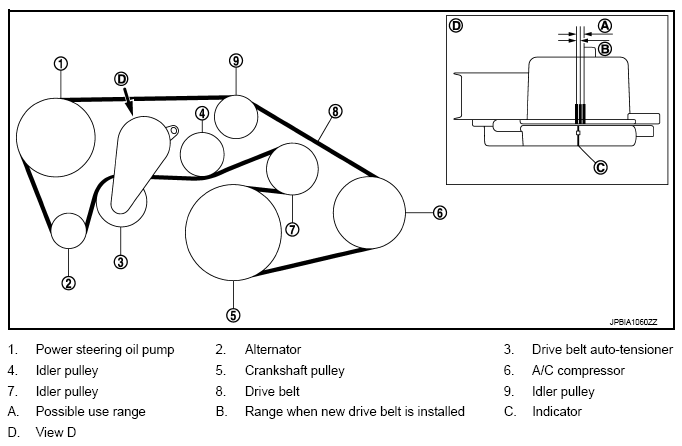

Fig 1: Drive Belt Routing Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
