IGNITION TIMING: Special Repair Requirement

CHECK IGNITION TIMING
1. Attach timing light to loop wire as shown.

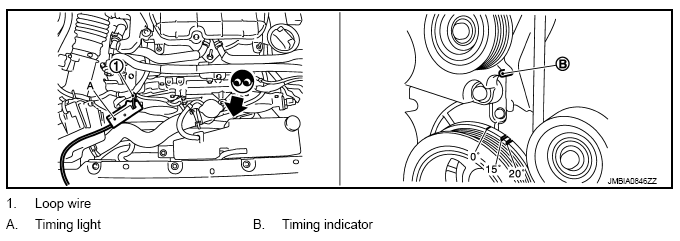

  Fig 1: Attaching Timing Light To Loop Wire And Locating Timing Indicator
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.
  : INSPECTION END
