Infiniti
›
2014
›
QX50 Base, RWD
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Glass & Window System
›
Removal And Installation
›
Rear Door Glass
›
Exploded View
Exploded View

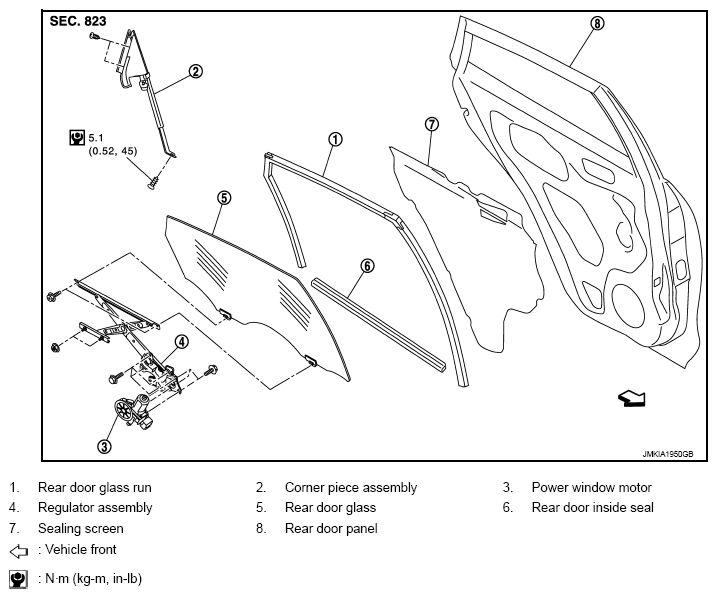

Fig 1: Exploded View Of Rear Door Glass With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
