Infiniti
›
2014
›
QX50 Journey, AWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission
›
Removal And Installation
›
Control Valve And TCM
›
Exploded View
Exploded View

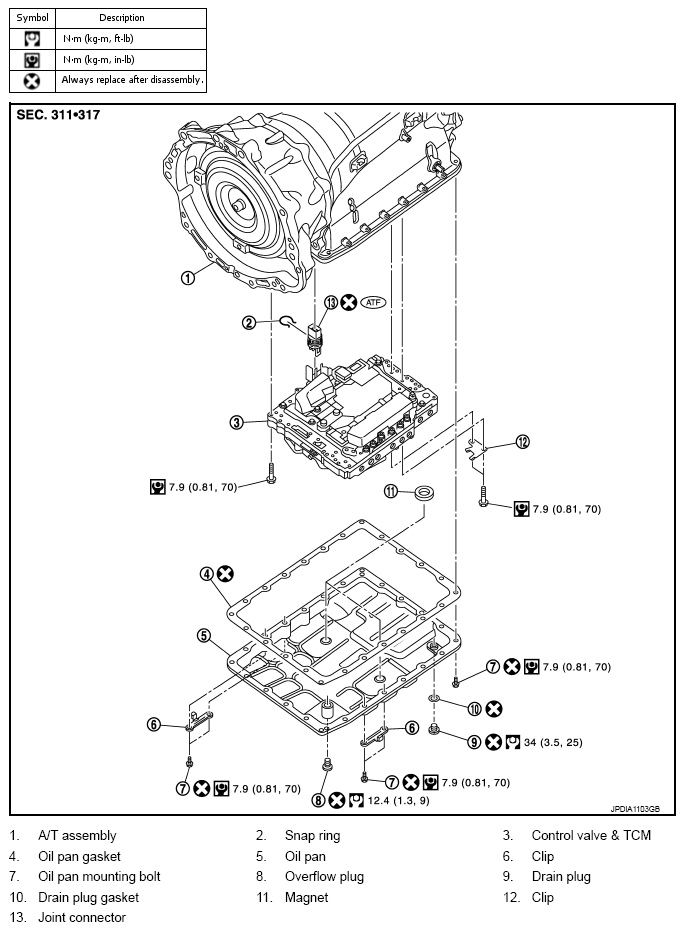

Fig 1: Exploded View Of Control Valve And TCM With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
