System Description
›
Shift Mechanism
›
Cross-Sectional View
›
AWD Models
AWD Models

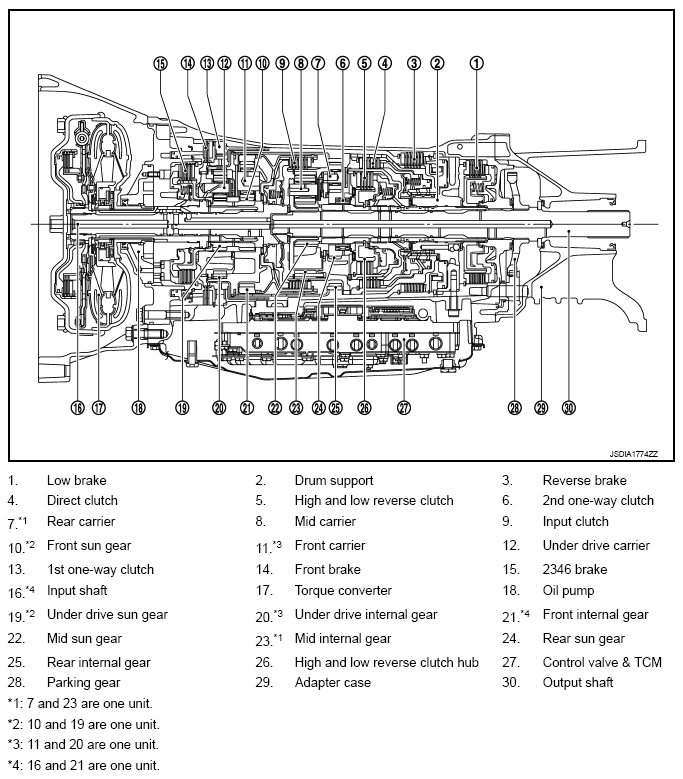

Fig 1: Cross-Sectional View Of Shift Mechanism (AWD Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
