Engine Control System (Introduction) (Except Hybrid)
›
System Description
›
System
›
Engine Control System
›
ENGINE CONTROL SYSTEM: System Description
›
System Diagram
System Diagram

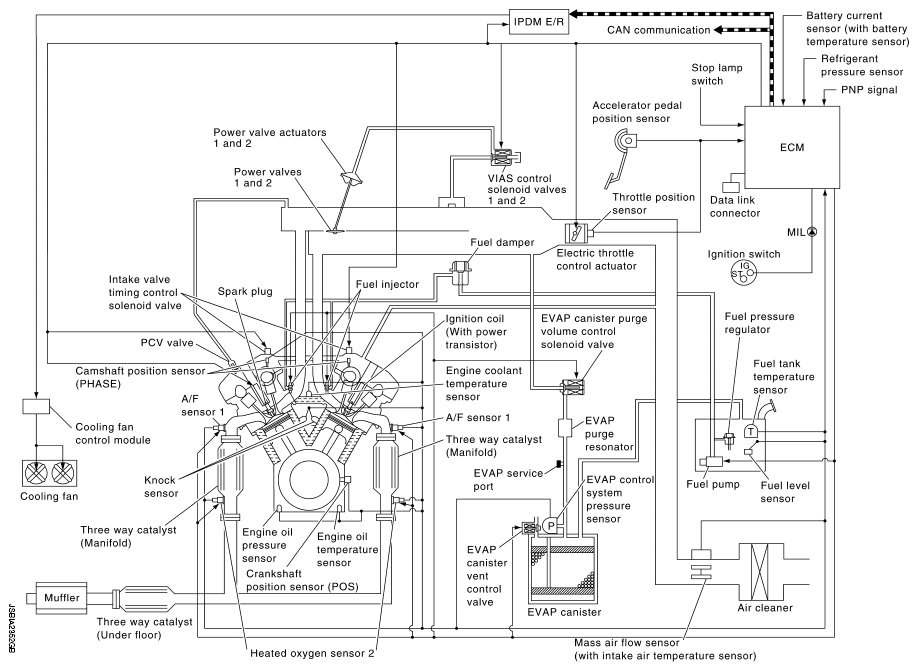

Fig 1: Engine Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Battery current sensor (with battery temperature sensor) is not used for engine control system.
Courtesy of NISSAN NORTH AMERICA, INC.
