FixVault
Home
›
Infiniti
›
2014
›
QX60 Base, AWD
›
Repair and Diagnosis
›
General Information
›
Identification
›
General Information (Except Hybrid)
›
Basic Inspection
›
Consult Checking System
›
CONSULT Function and System Application
CONSULT Function and System Application

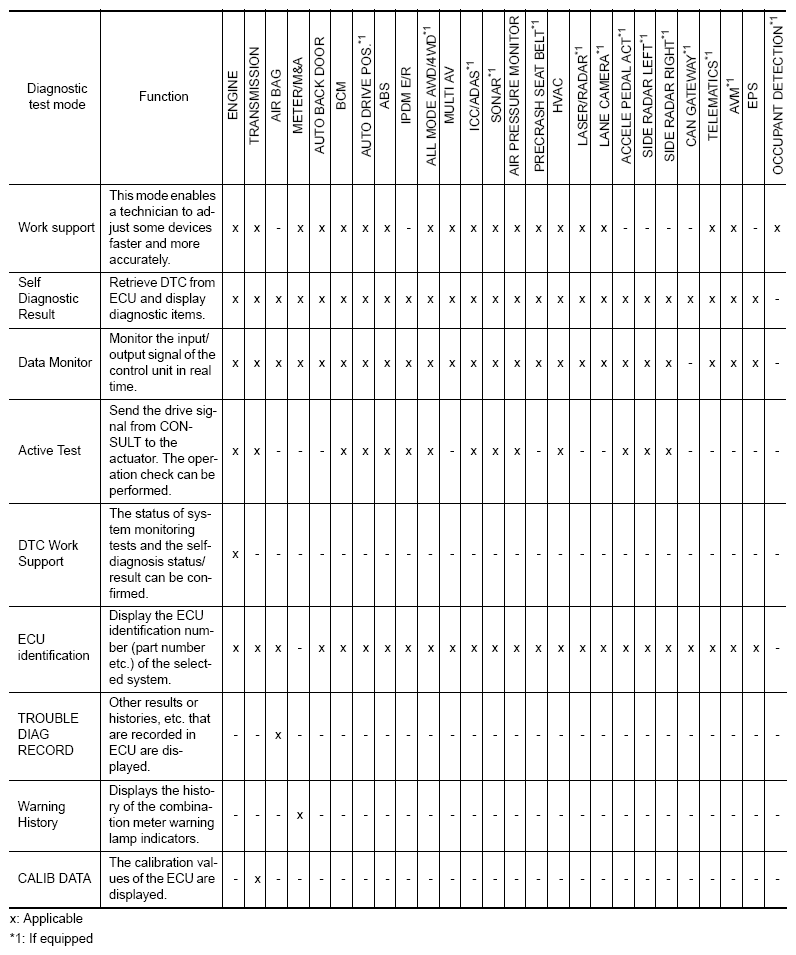

Fig 1: Consult Function And System Application Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
