Component Parts Location

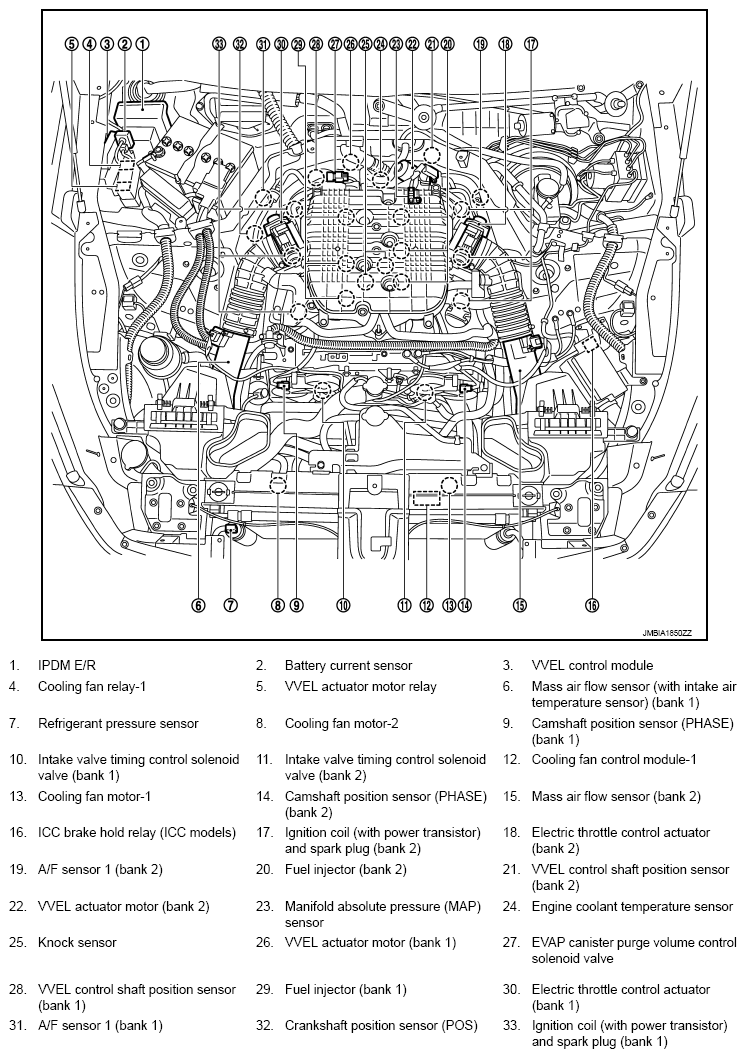

Fig 1: Automatic Speed Control Device Components Location (1 Of 22)

G09498967

Courtesy of NISSAN NORTH AMERICA, INC.

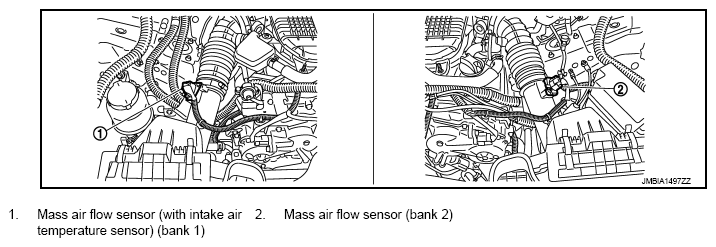

Fig 2: Automatic Speed Control Device Components Location (2 Of 22)

G09498968

Courtesy of NISSAN NORTH AMERICA, INC.

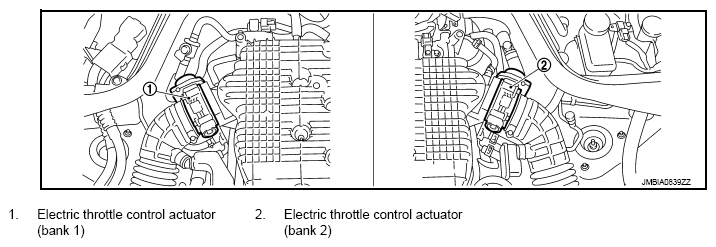

Fig 3: Automatic Speed Control Device Components Location (3 Of 22)

G09498969

Courtesy of NISSAN NORTH AMERICA, INC.

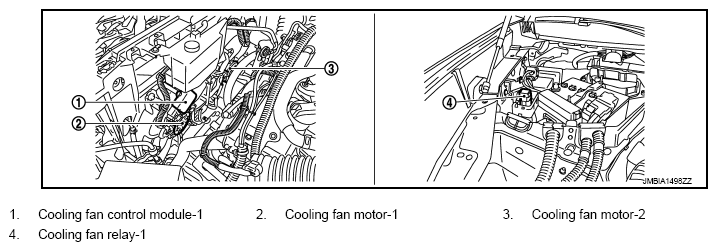

Fig 4: Automatic Speed Control Device Components Location (4 Of 22)

G09498970

Courtesy of NISSAN NORTH AMERICA, INC.

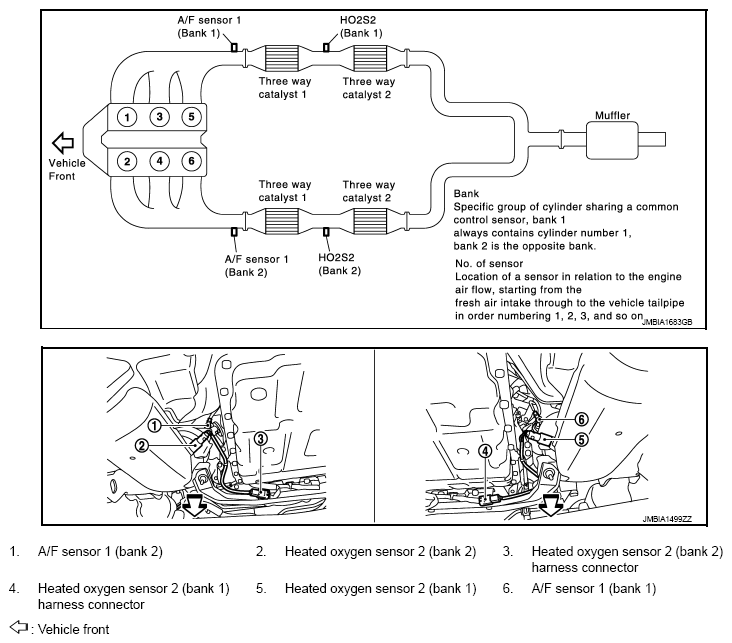

Fig 5: Automatic Speed Control Device Components Location (5 Of 22)

G09498971

Courtesy of NISSAN NORTH AMERICA, INC.

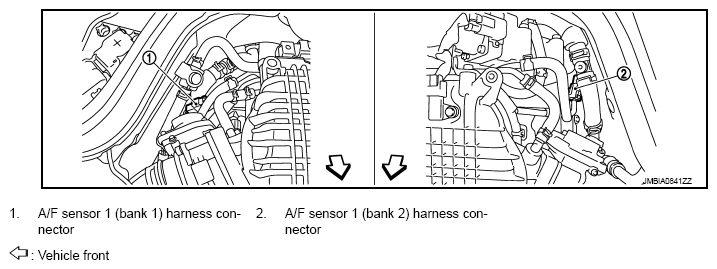

Fig 6: Automatic Speed Control Device Components Location (6 Of 22)

G09498972

Courtesy of NISSAN NORTH AMERICA, INC.

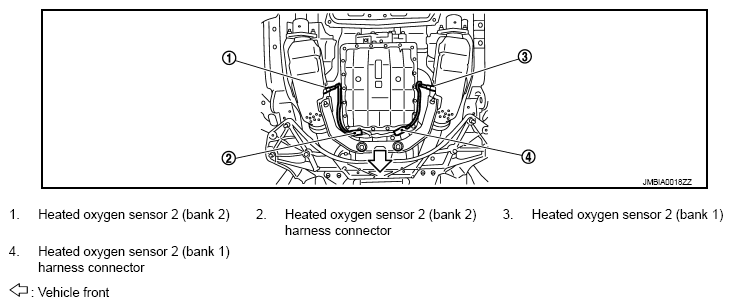

Fig 7: Automatic Speed Control Device Components Location (8 Of 22)

G09498973

Courtesy of NISSAN NORTH AMERICA, INC.

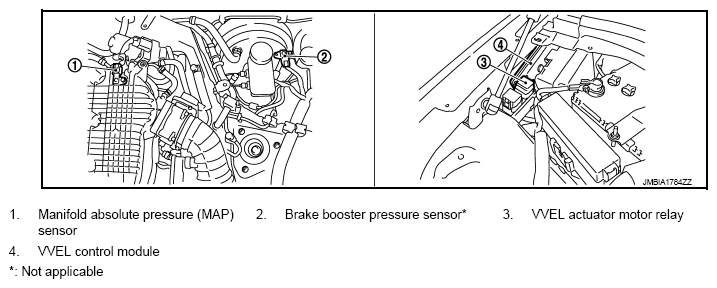

Fig 8: Automatic Speed Control Device Components Location (9 Of 22)

G09498974

Courtesy of NISSAN NORTH AMERICA, INC.

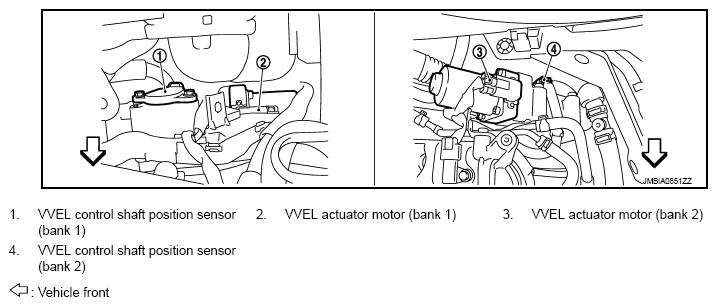

Fig 9: Automatic Speed Control Device Components Location (10 Of 22)

G09498975

Courtesy of NISSAN NORTH AMERICA, INC.

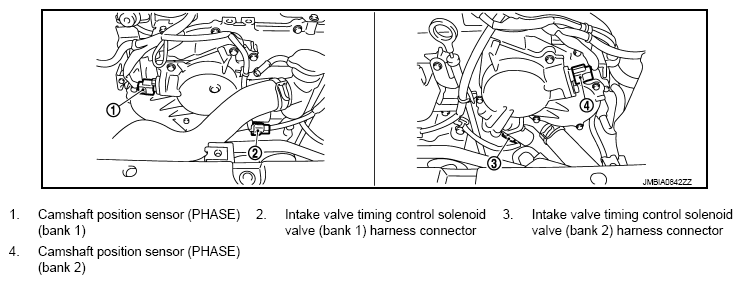

Fig 10: Automatic Speed Control Device Components Location (11 Of 22)

G09498976

Courtesy of NISSAN NORTH AMERICA, INC.

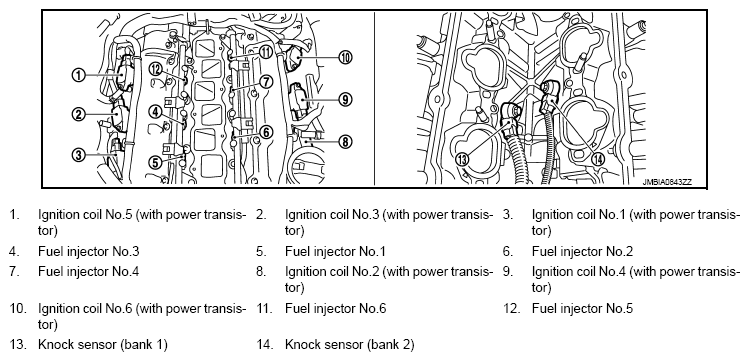

Fig 11: Automatic Speed Control Device Components Location (12 Of 22)

G09498977

Courtesy of NISSAN NORTH AMERICA, INC.

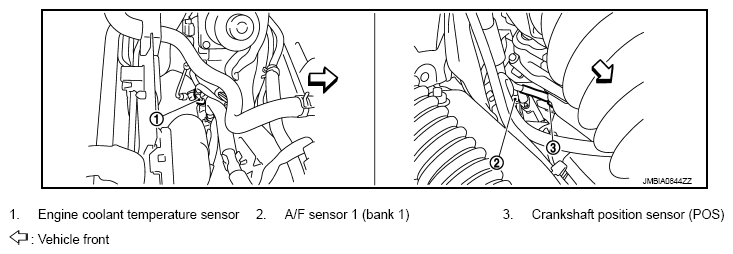

Fig 12: Automatic Speed Control Device Components Location (13 Of 22)

G09498978

Courtesy of NISSAN NORTH AMERICA, INC.

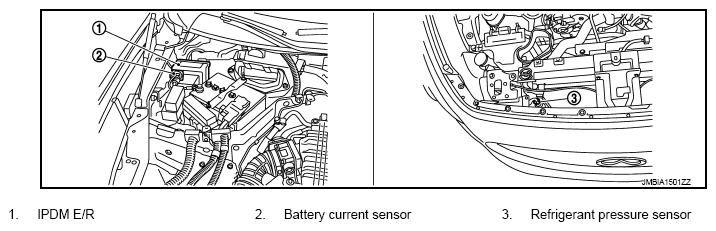

Fig 13: Automatic Speed Control Device Components Location (14 Of 22)

G09498979

Courtesy of NISSAN NORTH AMERICA, INC.

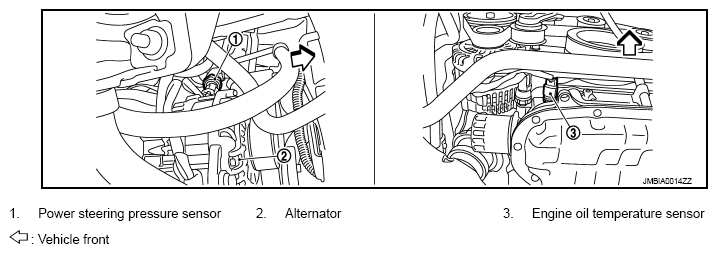

Fig 14: Automatic Speed Control Device Components Location (15 Of 22)

G09498980

Courtesy of NISSAN NORTH AMERICA, INC.

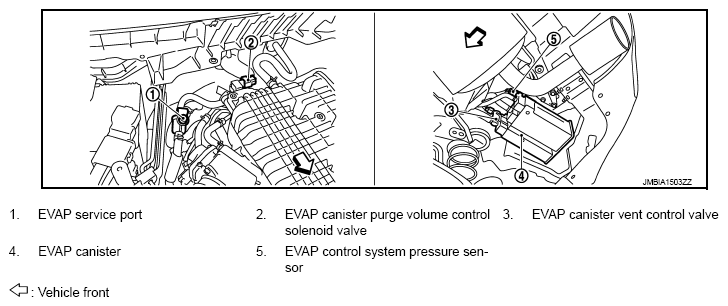

Fig 15: Automatic Speed Control Device Components Location (16 Of 22)

G09498981

Courtesy of NISSAN NORTH AMERICA, INC.

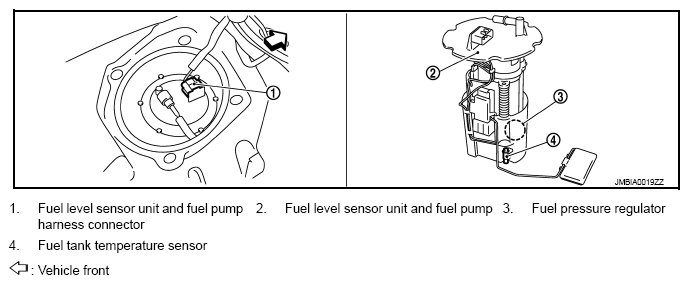

Fig 16: Automatic Speed Control Device Components Location (17 Of 22)

G09498982

Courtesy of NISSAN NORTH AMERICA, INC.

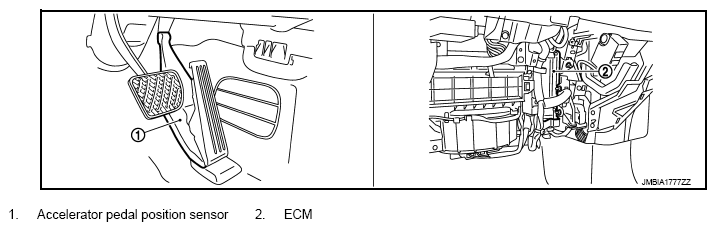

Fig 17: Automatic Speed Control Device Components Location (18 Of 22)

G09498983

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Automatic Speed Control Device Components Location (19 Of 22)

G09498984

Courtesy of NISSAN NORTH AMERICA, INC.

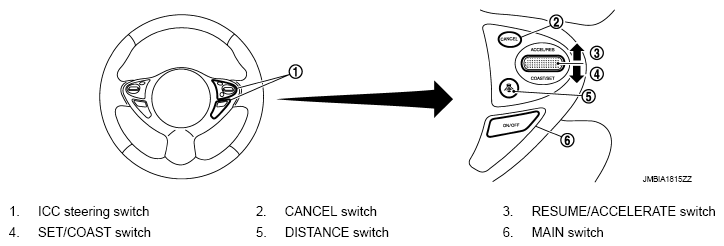

Fig 19: Automatic Speed Control Device Components Location (20 Of 22)

G09498985

Courtesy of NISSAN NORTH AMERICA, INC.

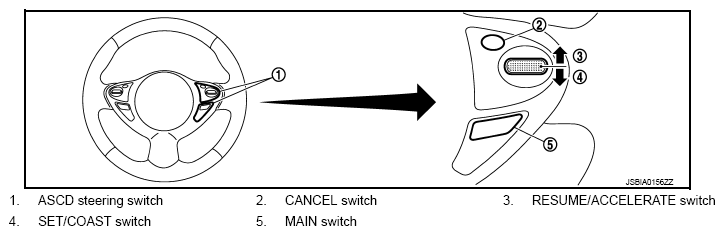

Fig 20: Automatic Speed Control Device Components Location (21 Of 22)

G09498986

Courtesy of NISSAN NORTH AMERICA, INC.

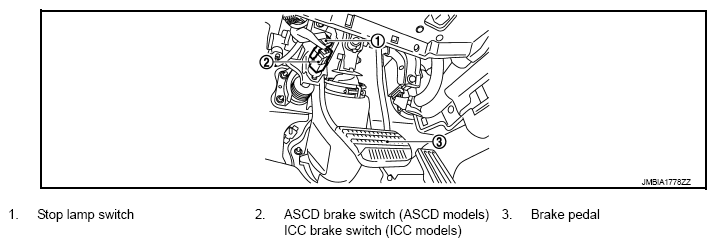

Fig 21: Automatic Speed Control Device Components Location (22 Of 22)

G09498987

Courtesy of NISSAN NORTH AMERICA, INC.
