Component Parts Location

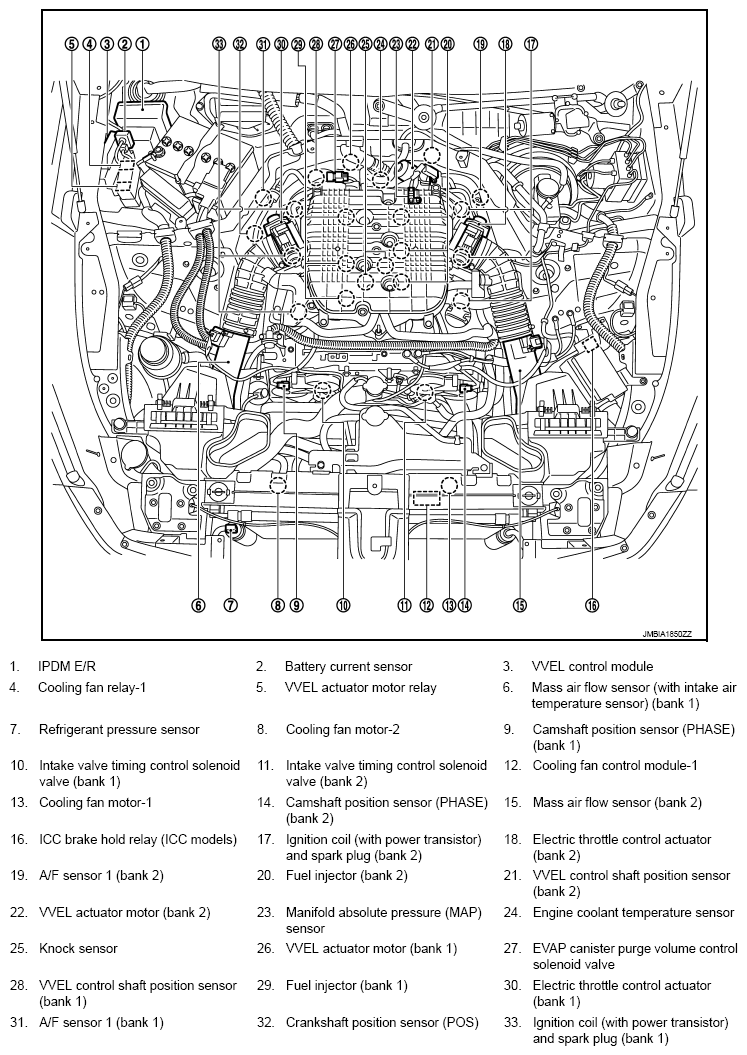

Fig 1: Engine Control System Components Location (1 Of 22)

G09498878

Courtesy of NISSAN NORTH AMERICA, INC.

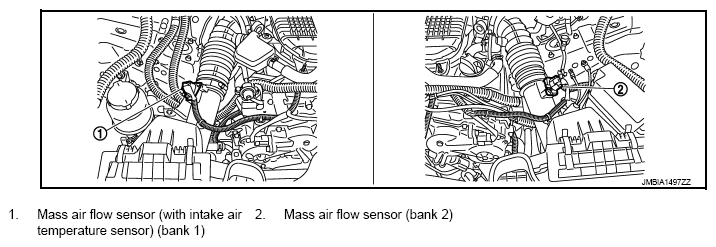

Fig 2: Engine Control System Components Location (2 Of 22)

G09498879

Courtesy of NISSAN NORTH AMERICA, INC.

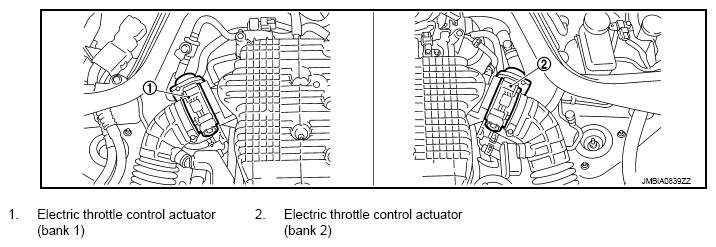

Fig 3: Engine Control System Components Location (3 Of 22)

G09498880

Courtesy of NISSAN NORTH AMERICA, INC.

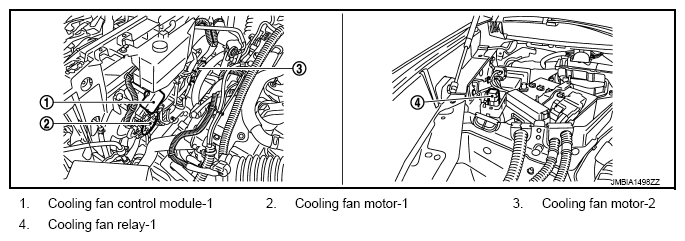

Fig 4: Engine Control System Components Location (4 Of 22)

G09498881

Courtesy of NISSAN NORTH AMERICA, INC.

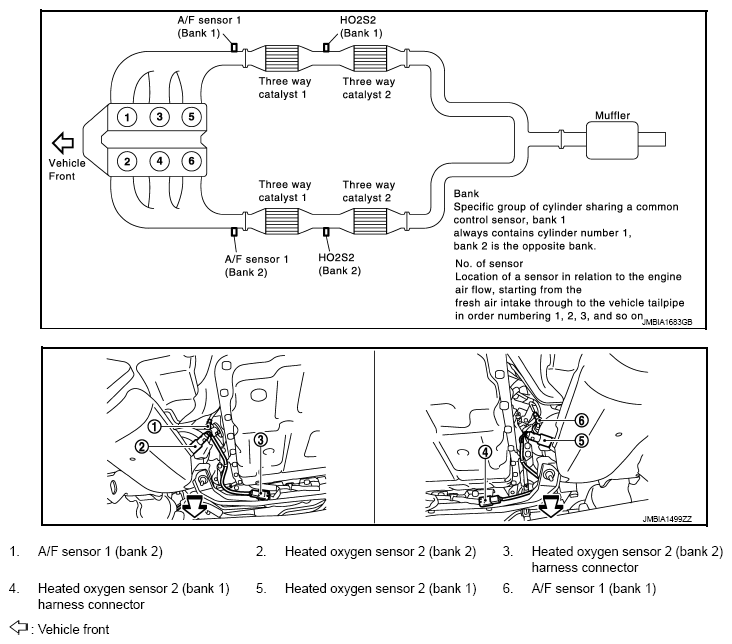

Fig 5: Engine Control System Components Location (5 Of 22)

G09498882

Courtesy of NISSAN NORTH AMERICA, INC.

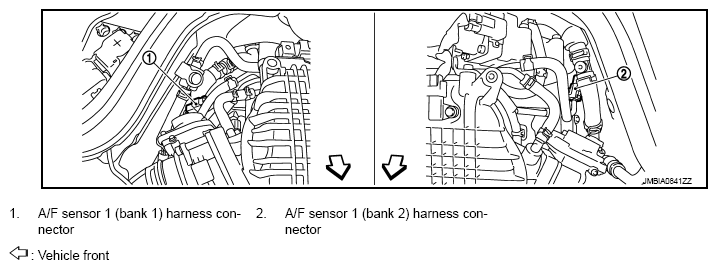

Fig 6: Engine Control System Components Location (6 Of 22)

G09498883

Courtesy of NISSAN NORTH AMERICA, INC.

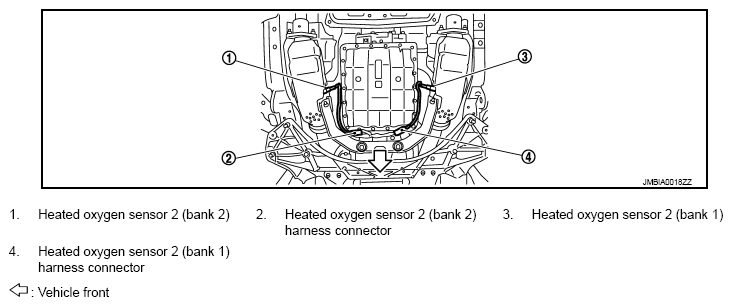

Fig 7: Engine Control System Components Location (8 Of 22)

G09498884

Courtesy of NISSAN NORTH AMERICA, INC.

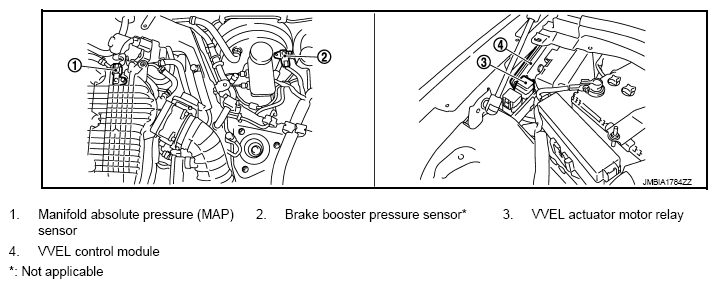

Fig 8: Engine Control System Components Location (9 Of 22)

G09498885

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Engine Control System Components Location (10 Of 22)

G09498886

Courtesy of NISSAN NORTH AMERICA, INC.

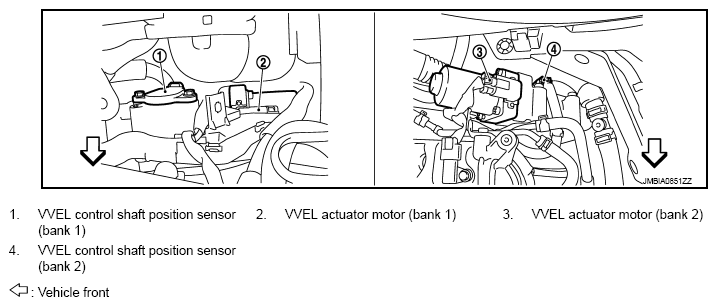

Fig 10: Engine Control System Components Location (11 Of 22)

G09498887

Courtesy of NISSAN NORTH AMERICA, INC.

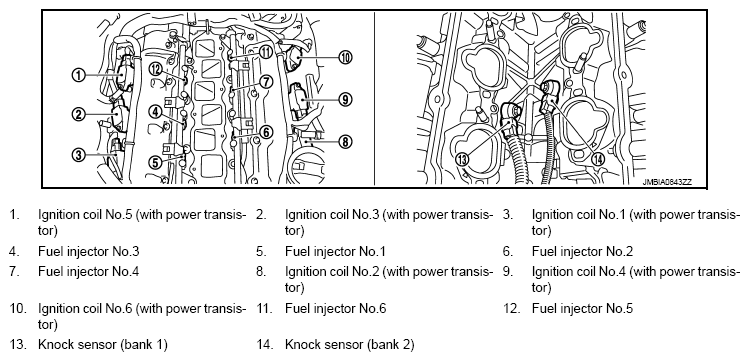

Fig 11: Engine Control System Components Location (12 Of 22)

G09498888

Courtesy of NISSAN NORTH AMERICA, INC.

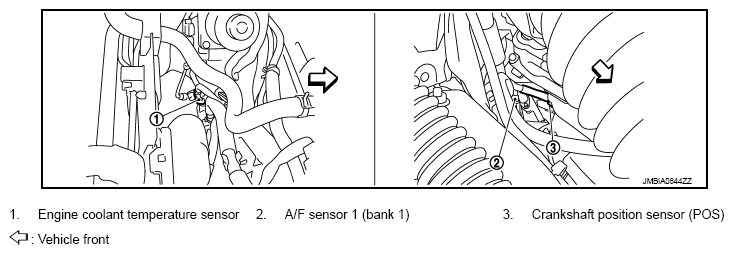

Fig 12: Engine Control System Components Location (13 Of 22)

G09498889

Courtesy of NISSAN NORTH AMERICA, INC.

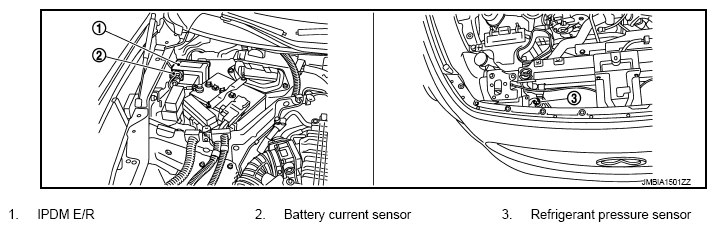

Fig 13: Engine Control System Components Location (14 Of 22)

G09498890

Courtesy of NISSAN NORTH AMERICA, INC.

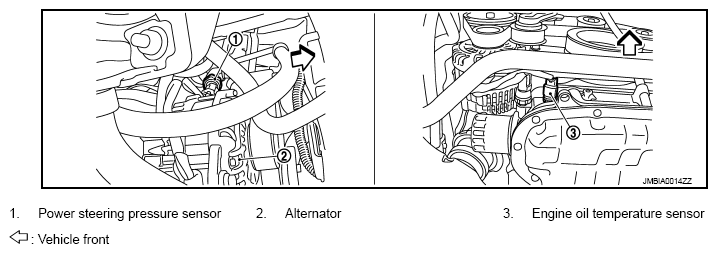

Fig 14: Engine Control System Components Location (15 Of 22)

G09498891

Courtesy of NISSAN NORTH AMERICA, INC.

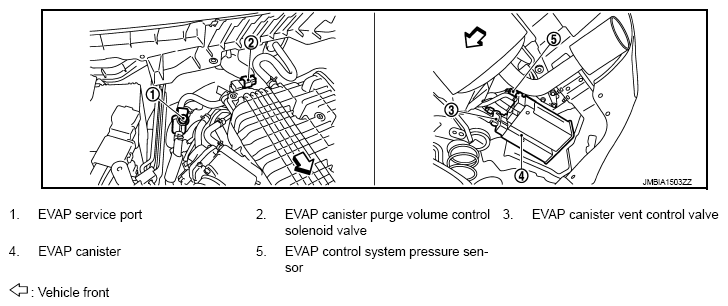

Fig 15: Engine Control System Components Location (16 Of 22)

G09498892

Courtesy of NISSAN NORTH AMERICA, INC.

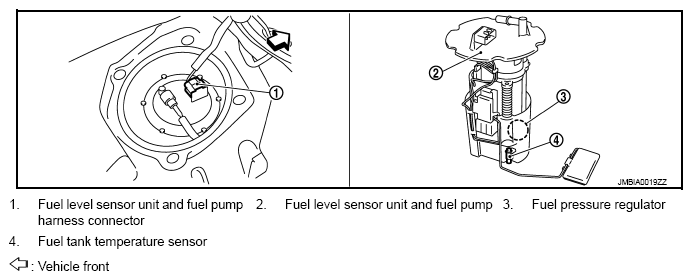

Fig 16: Engine Control System Components Location (17 Of 22)

G09498893

Courtesy of NISSAN NORTH AMERICA, INC.

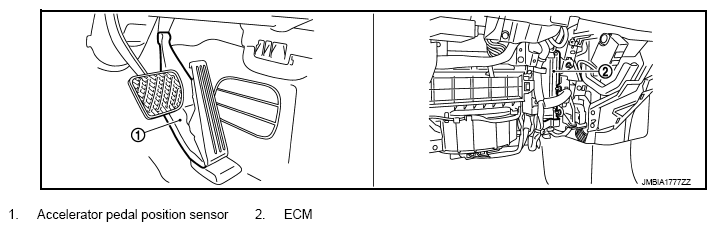

Fig 17: Engine Control System Components Location (18 Of 22)

G09498894

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Engine Control System Components Location (19 Of 22)

G09498895

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Engine Control System Components Location (20 Of 22)

G09498896

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Engine Control System Components Location (21 Of 22)

G09498897

Courtesy of NISSAN NORTH AMERICA, INC.

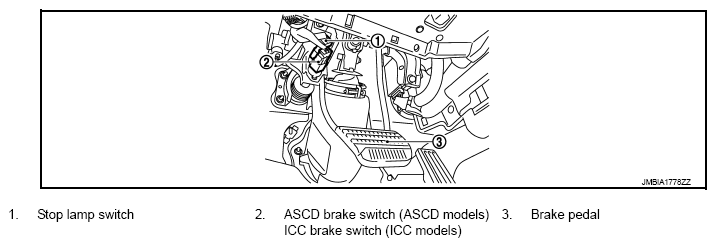

Fig 21: Engine Control System Components Location (22 Of 22)

G09498898

Courtesy of NISSAN NORTH AMERICA, INC.
