Connector End View

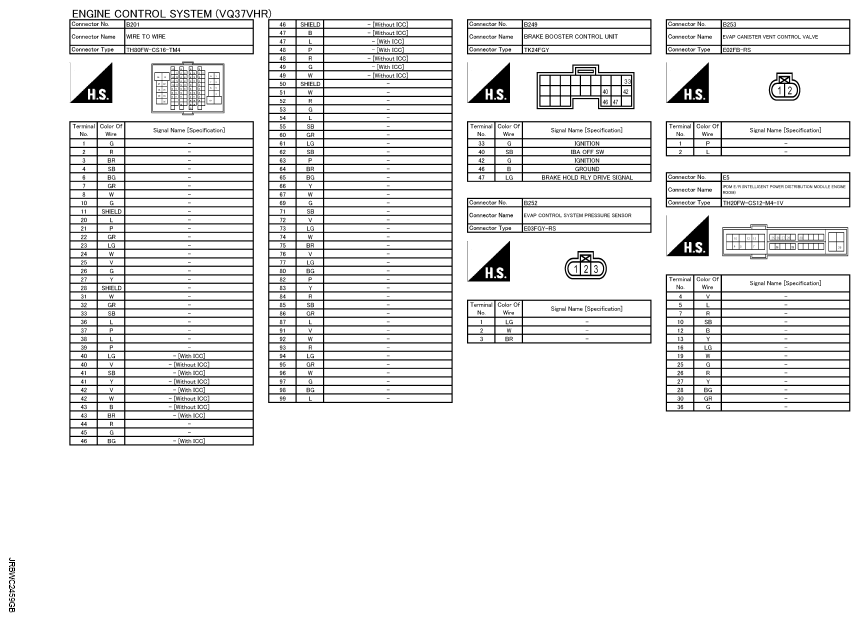

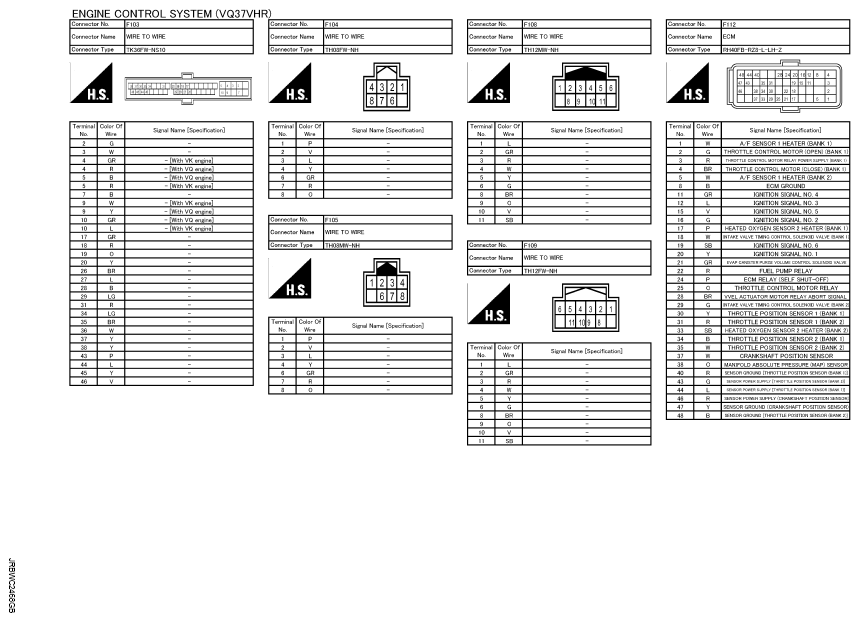

Fig 1: Engine Control System Connector End View (VQ37VHR; 1 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

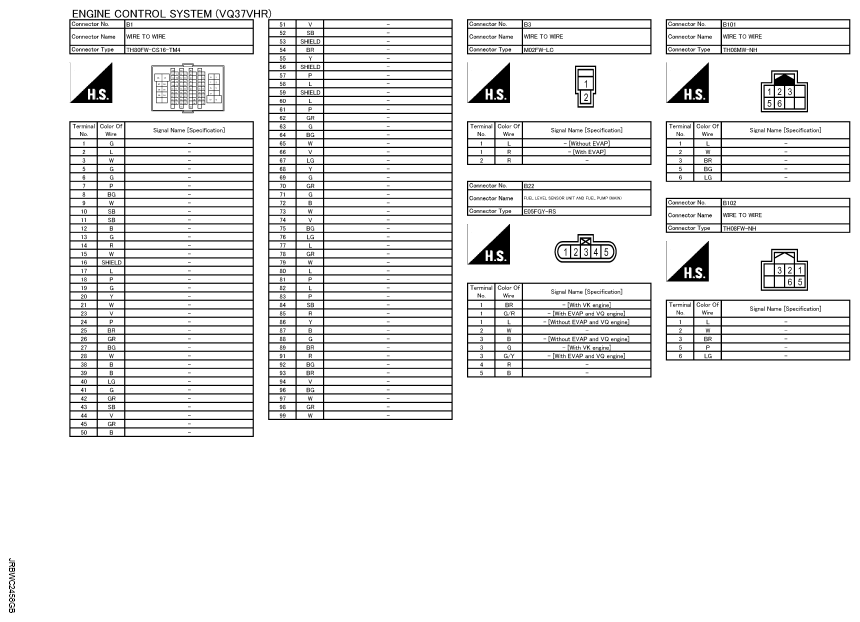

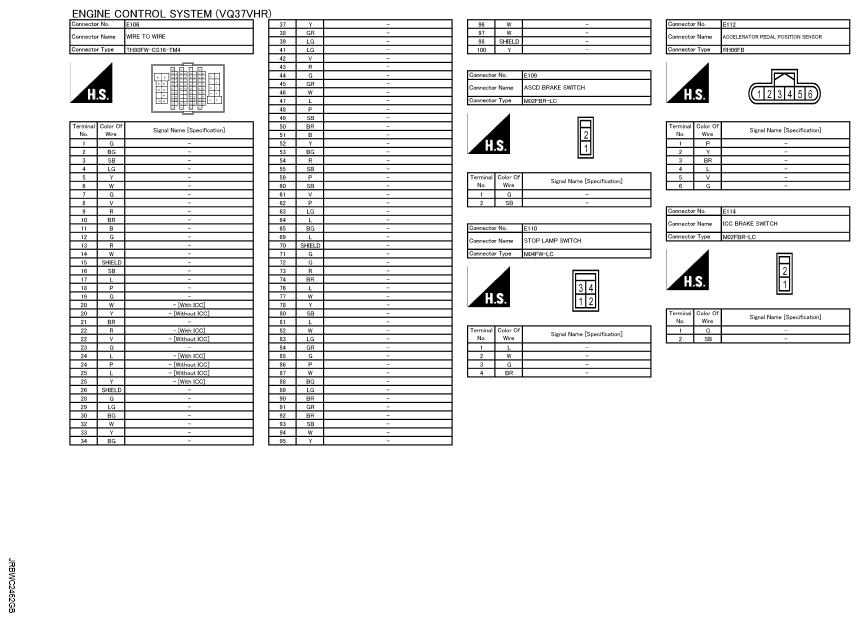

Fig 2: Engine Control System Connector End View (VQ37VHR; 2 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

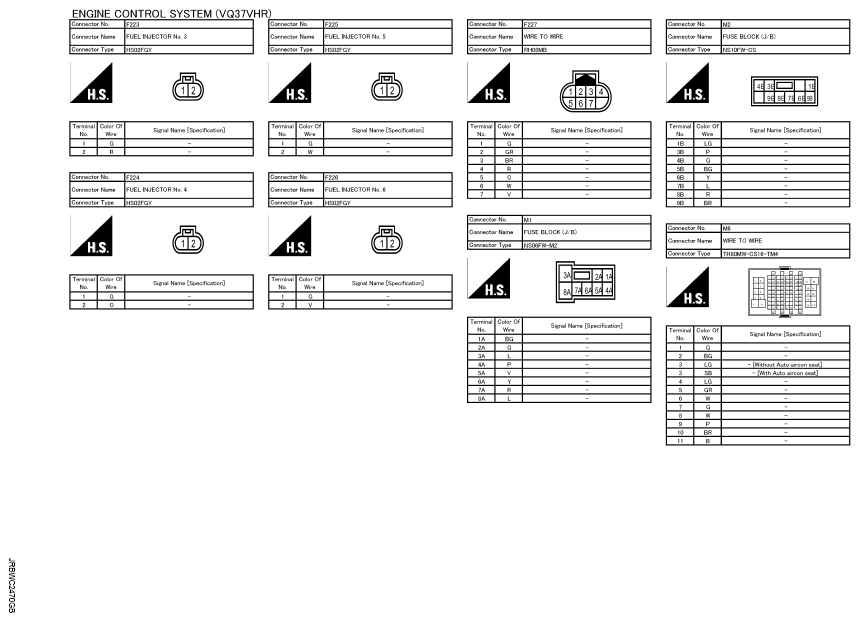

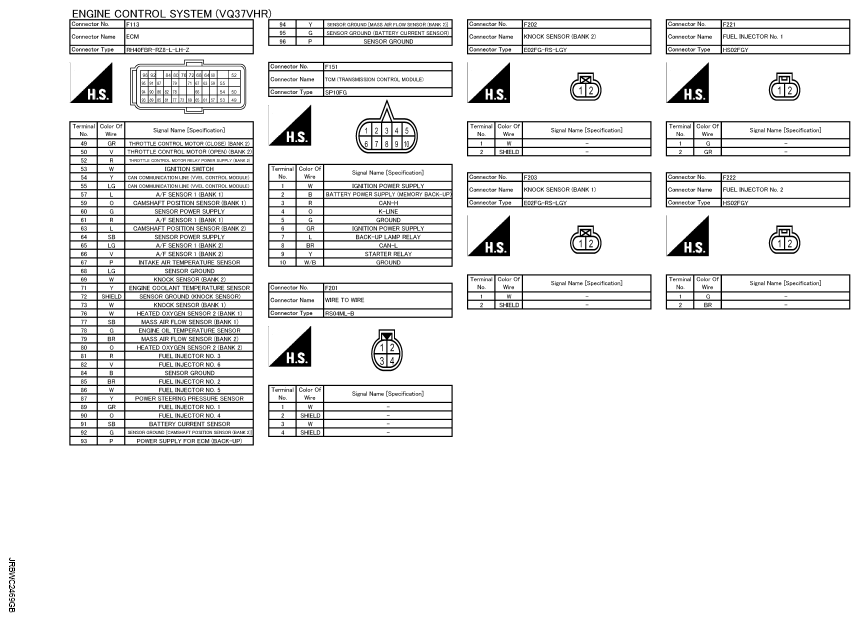

Fig 3: Engine Control System Connector End View (VQ37VHR; 3 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

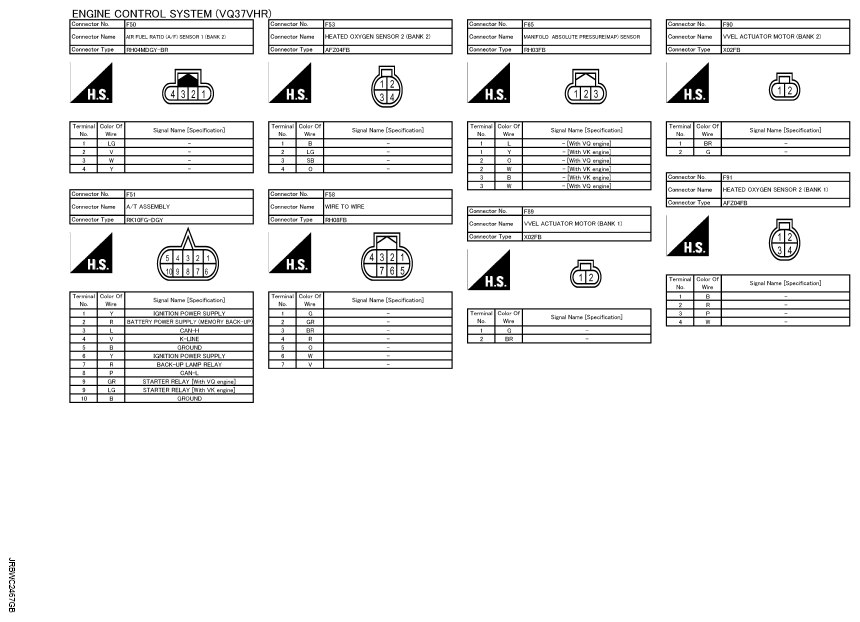

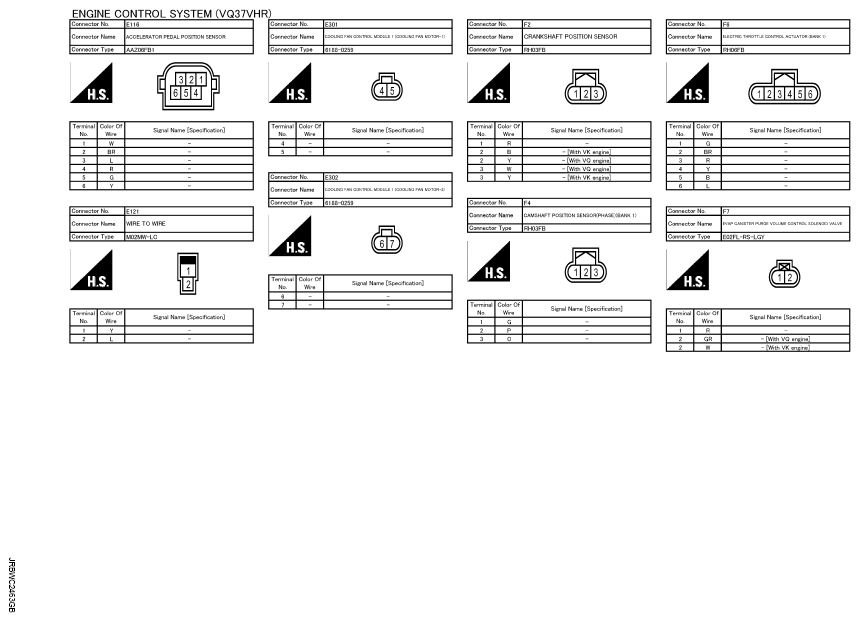

Fig 4: Engine Control System Connector End View (VQ37VHR; 4 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

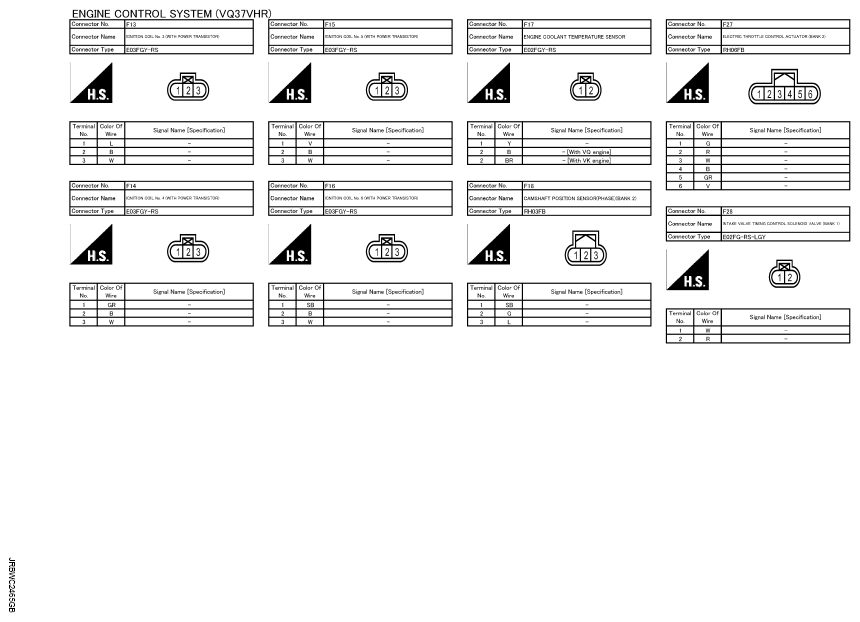

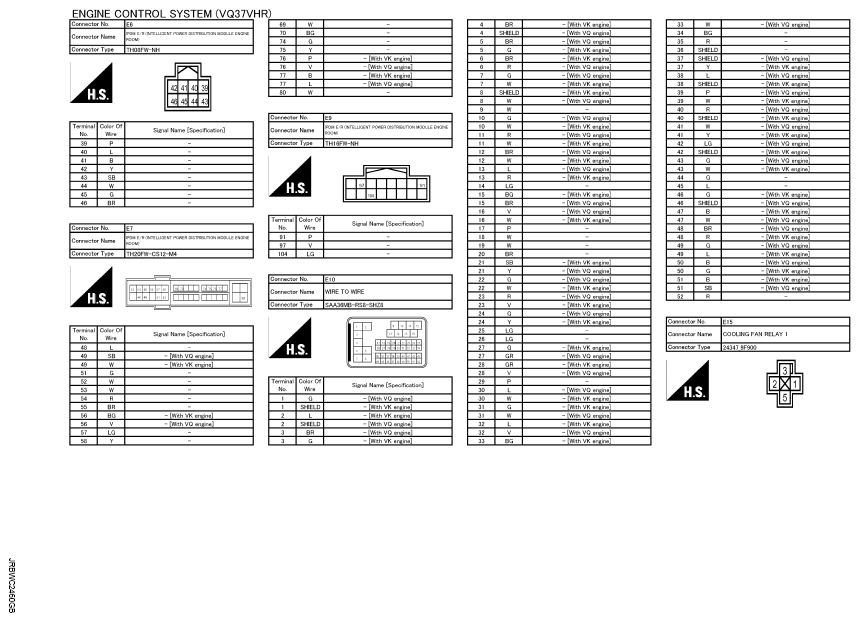

Fig 5: Engine Control System Connector End View (VQ37VHR; 5 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

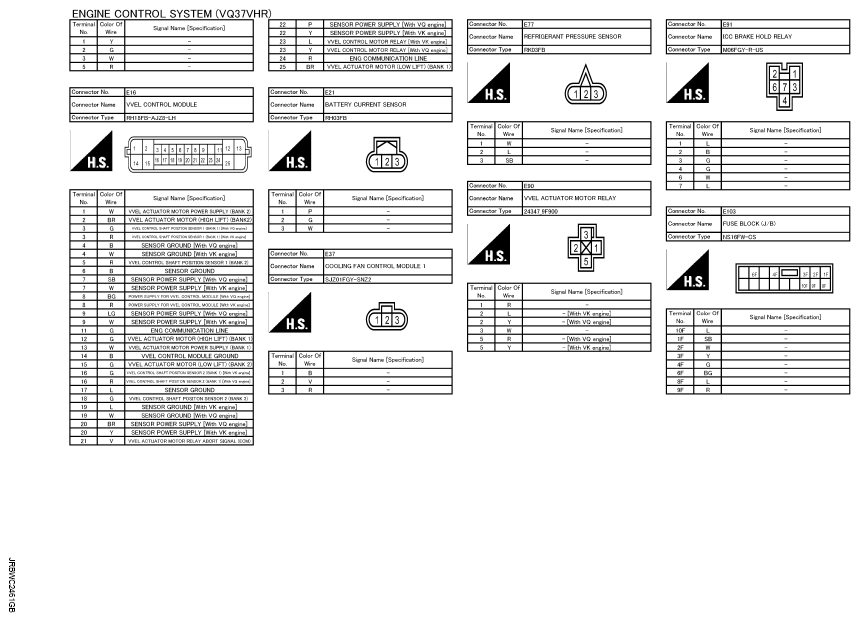

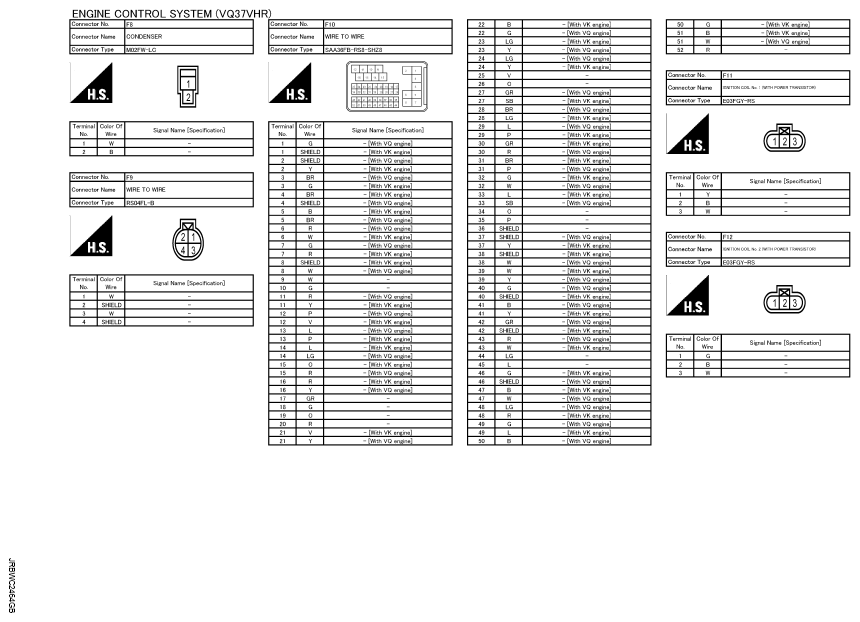

Fig 6: Engine Control System Connector End View (VQ37VHR; 6 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

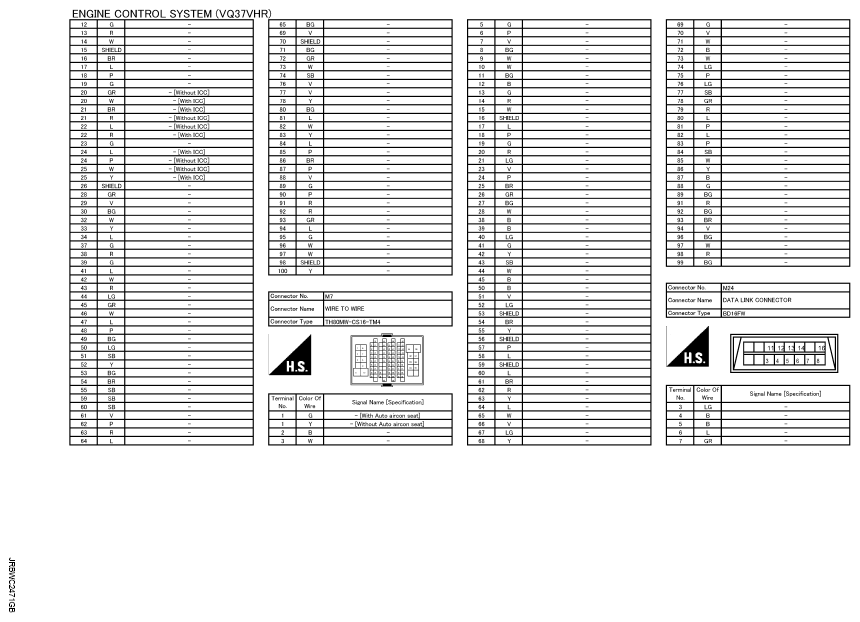

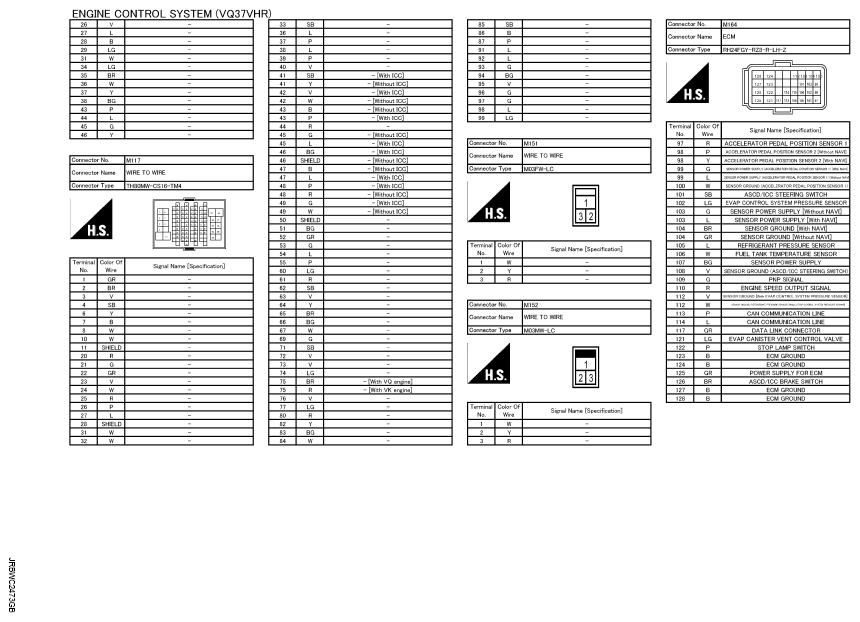

Fig 7: Engine Control System Connector End View (VQ37VHR; 7 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

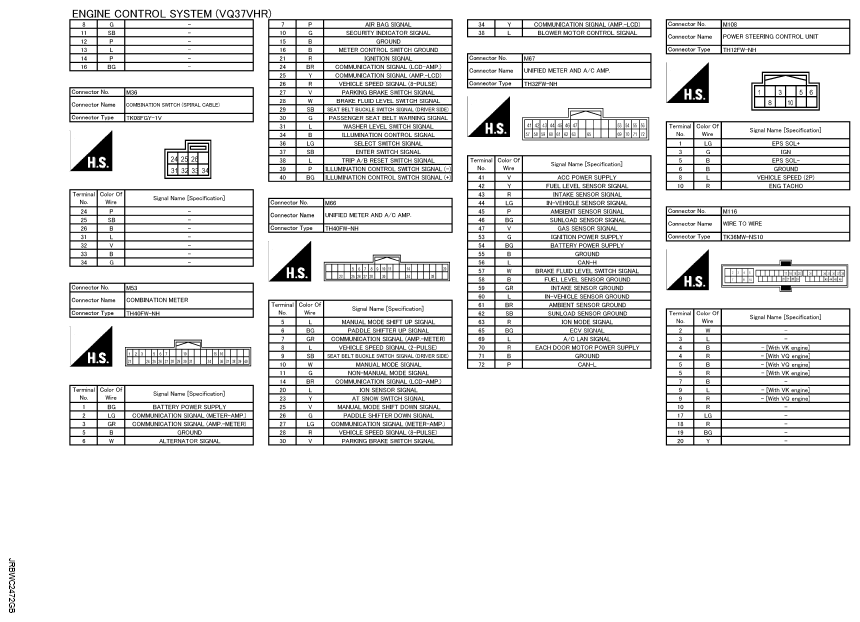

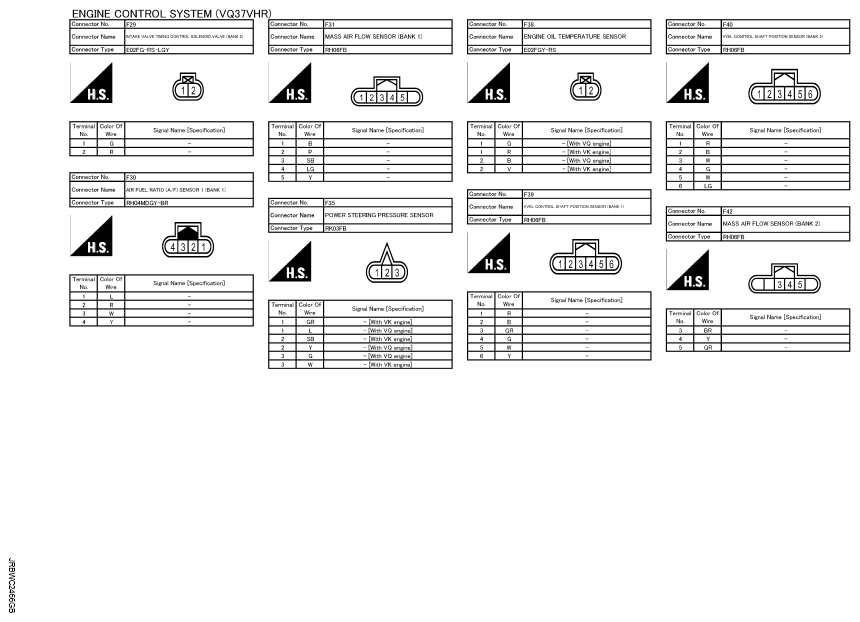

Fig 8: Engine Control System Connector End View (VQ37VHR; 8 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Engine Control System Connector End View (VQ37VHR; 9 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Engine Control System Connector End View (VQ37VHR; 10 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Engine Control System Connector End View (VQ37VHR; 11 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Engine Control System Connector End View (VQ37VHR; 12 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Engine Control System Connector End View (VQ37VHR; 13 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Engine Control System Connector End View (VQ37VHR; 14 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Engine Control System Connector End View (VQ37VHR; 15 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Engine Control System Connector End View (VQ37VHR; 16 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Engine Control System Connector End View (VQ37VHR; 17 Of 17)

Courtesy of NISSAN NORTH AMERICA, INC.
