Brake Control System (With Preview Function)
›
System Description
›
Component Parts
›
Component Description
Component Description

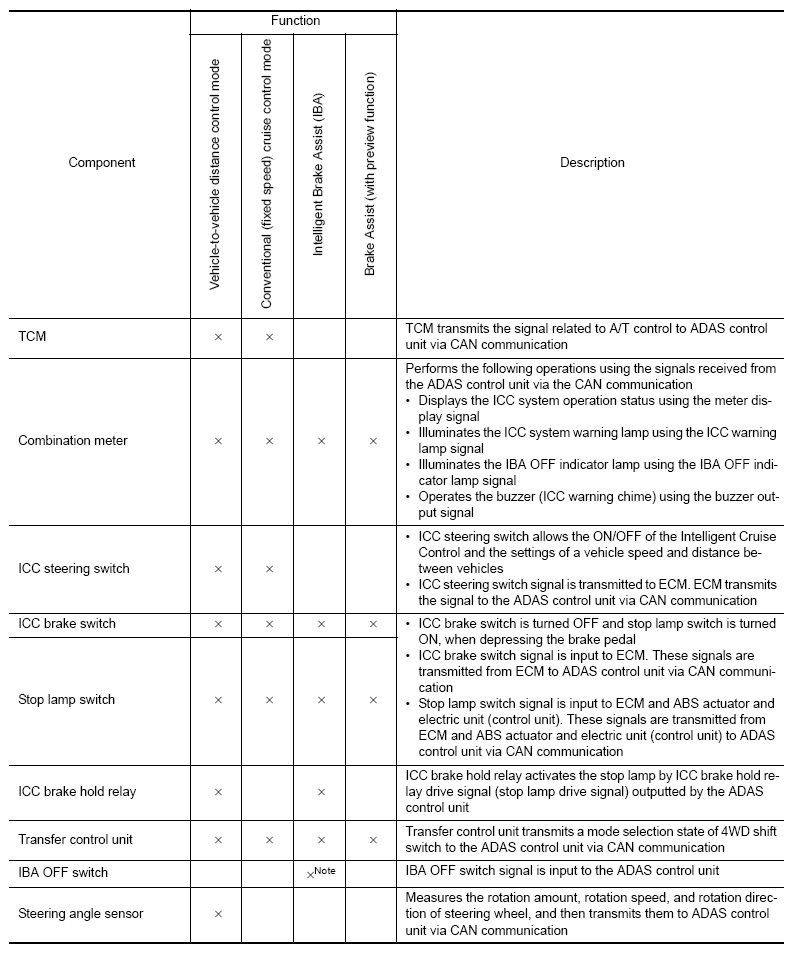

Fig 1: Identifying Brake Assist Function Related Components Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

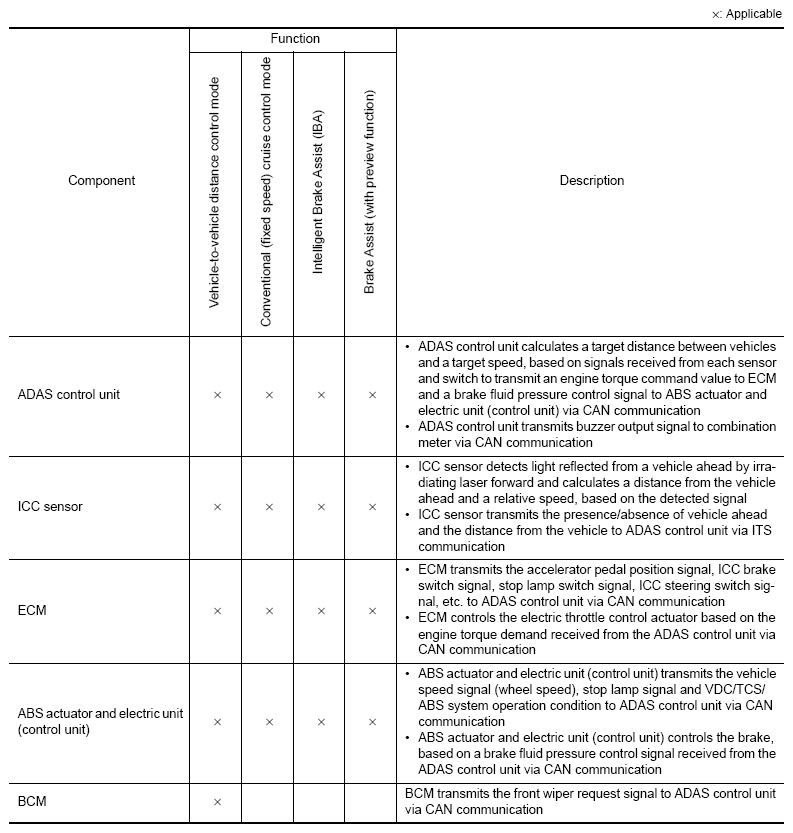

Fig 2: Identifying Brake Assist Function Related Components Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Only IBA system uses
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
