RELAY CONTROL SYSTEM: System Diagram
RELAY CONTROL SYSTEM: System Diagram

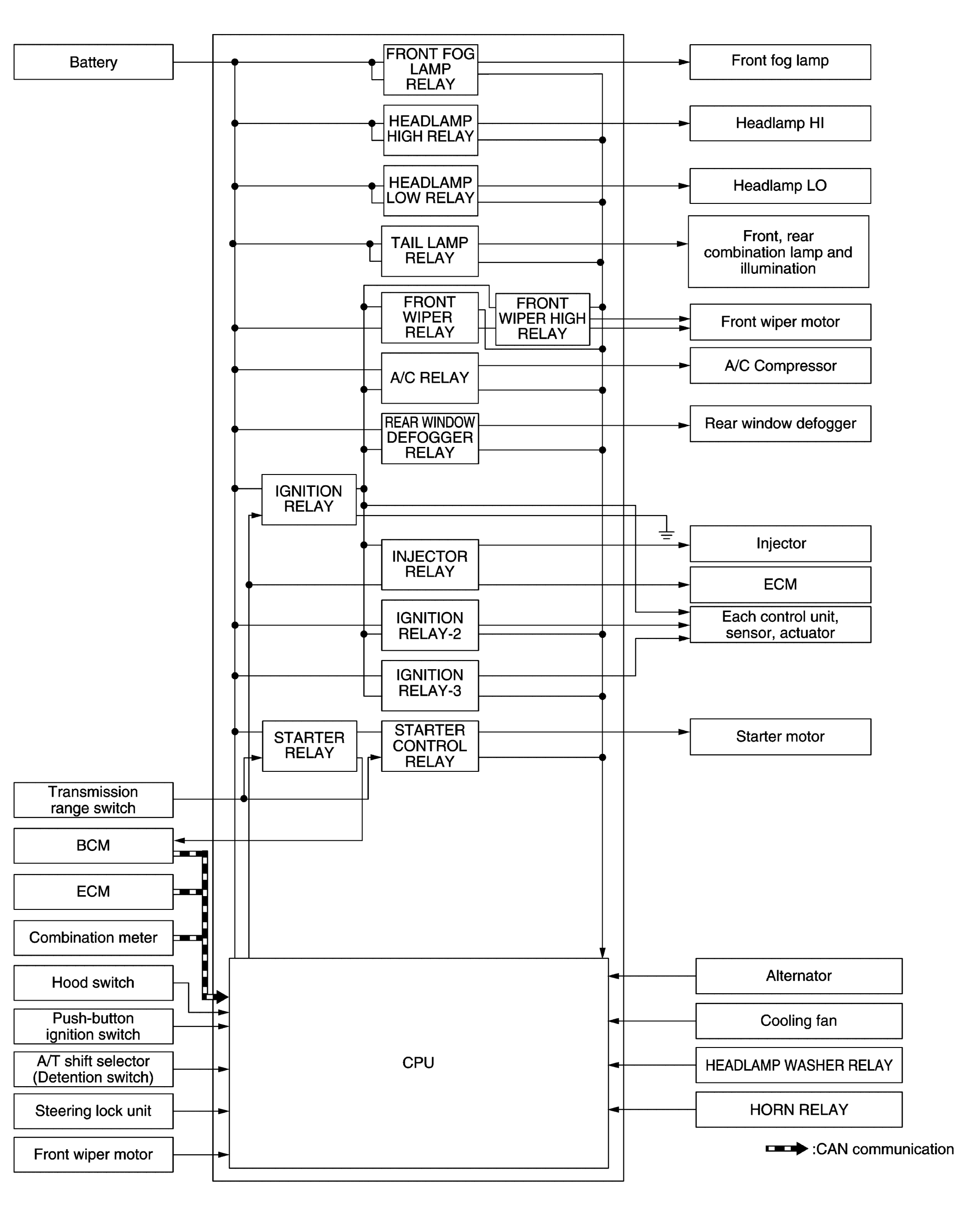

Fig 1: Relay Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
