Exploded View

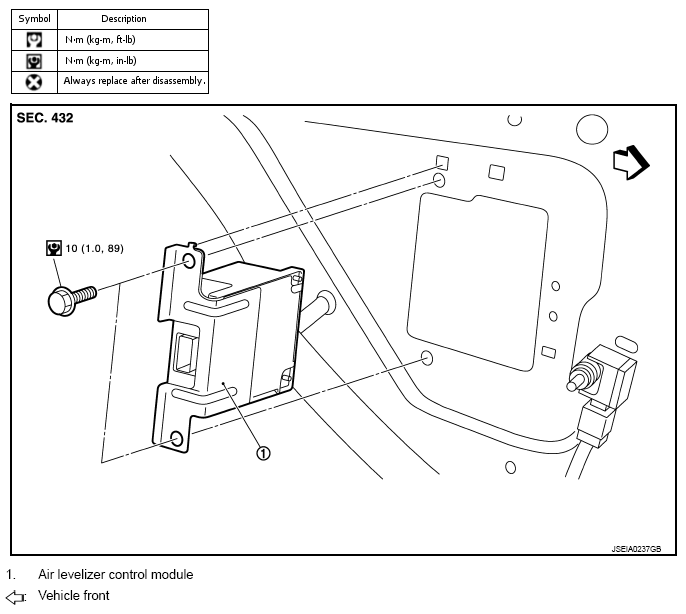

Fig 1: Exploded View Of Air Levelizer Control Module With Torque Specifications
G09179298Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
