With HBMC

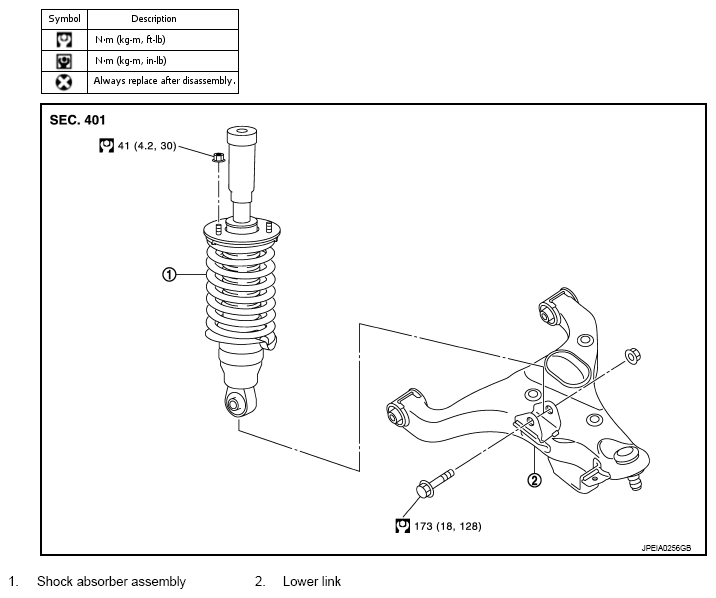

Fig 1: Exploded View Of Front Coil Spring And Shock Absorber With Torque Specifications (With HBMC)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
