Removal and Installation: Removal

  1. Remove center console assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove cluster lid C cover and instrument center finisher LH. Refer to "REMOVAL AND INSTALLATION ".
  3. Shift selector lever in "P" position.
  4. Remove control cable from A/T shift selector assembly.
  5. Remove control cable from manual lever and control cable mounting bracket.
  6. Remove retainer mounting bolts (←) according to the following procedure.
    1. Separate propeller shaft assembly (front). Refer to "REMOVAL AND INSTALLATION ". (For 4WD models)
    2. Disconnect heated oxygen sensor 2 connectors (bank 1 and bank 2). Refer to "EXPLODED VIEW ".
    3. Remove exhaust front tube (RH and LH). Refer to "EXPLODED VIEW ".
    4. Remove heat plates above three way catalyst (RH and LH).
    5. Remove control cable mounting bracket from A/T assembly.
    6. Remove retainer mounting bolts from dash panel.

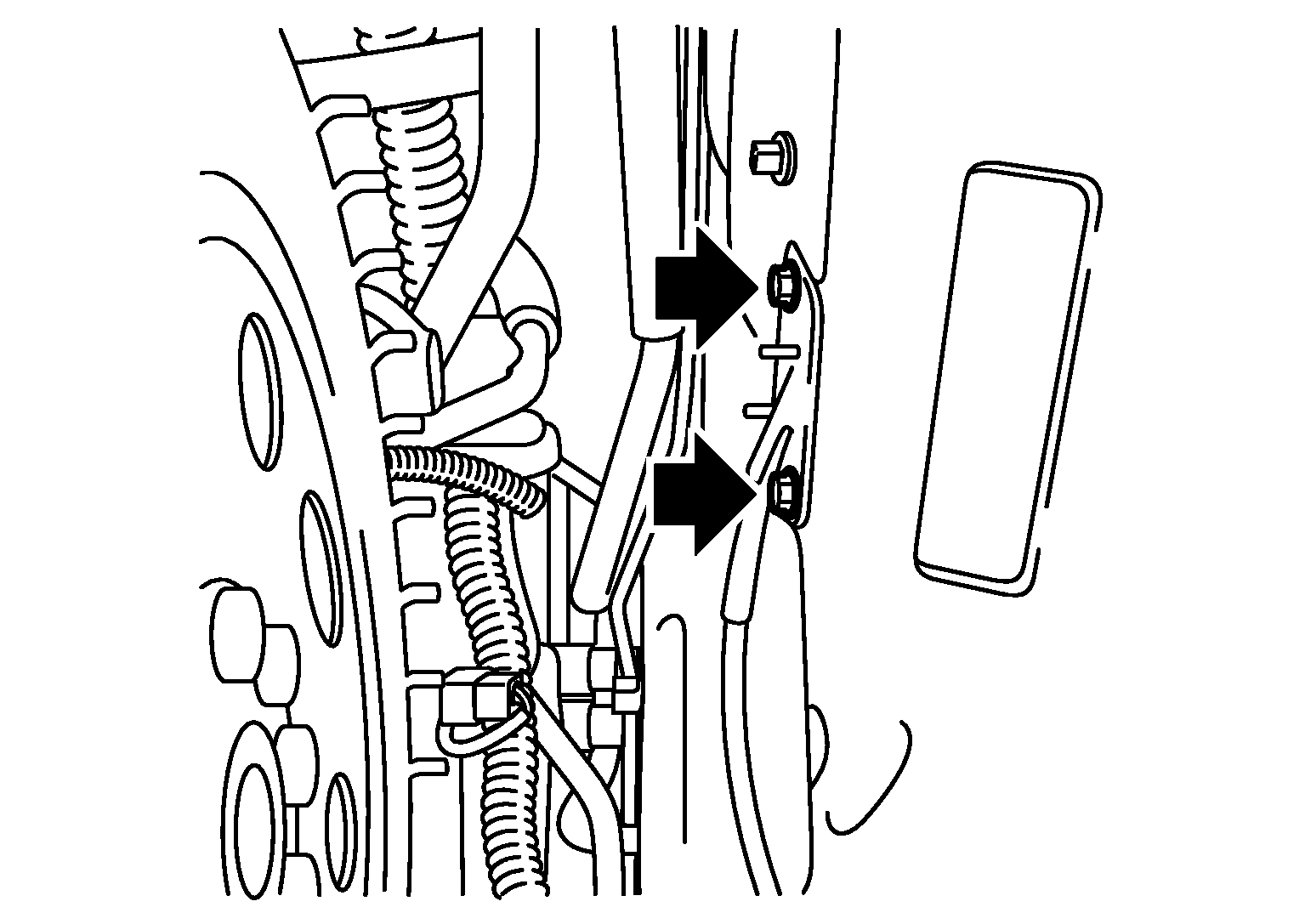

    Fig 1: Locating Control Cable Retainer Mounting Bolts
    G07023044Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove control cable from the vehicle.
