Outside Mirror
›
Exploded View
Exploded View

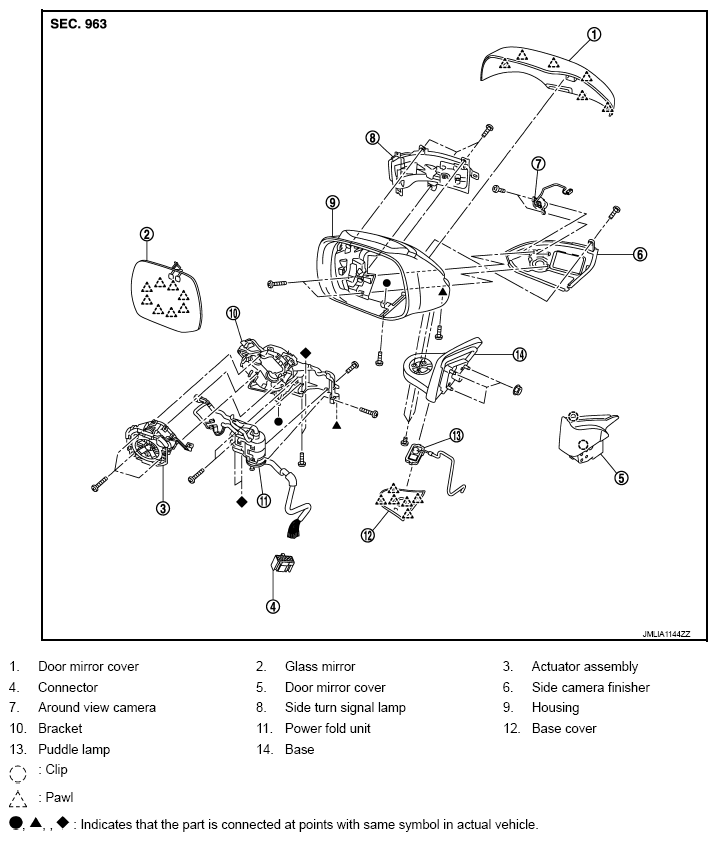

Fig 1: Exploded View Of Outside Mirror With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
