Body Control System
›
System Description
›
Combination Switch Reading System
›
System Diagram
System Diagram

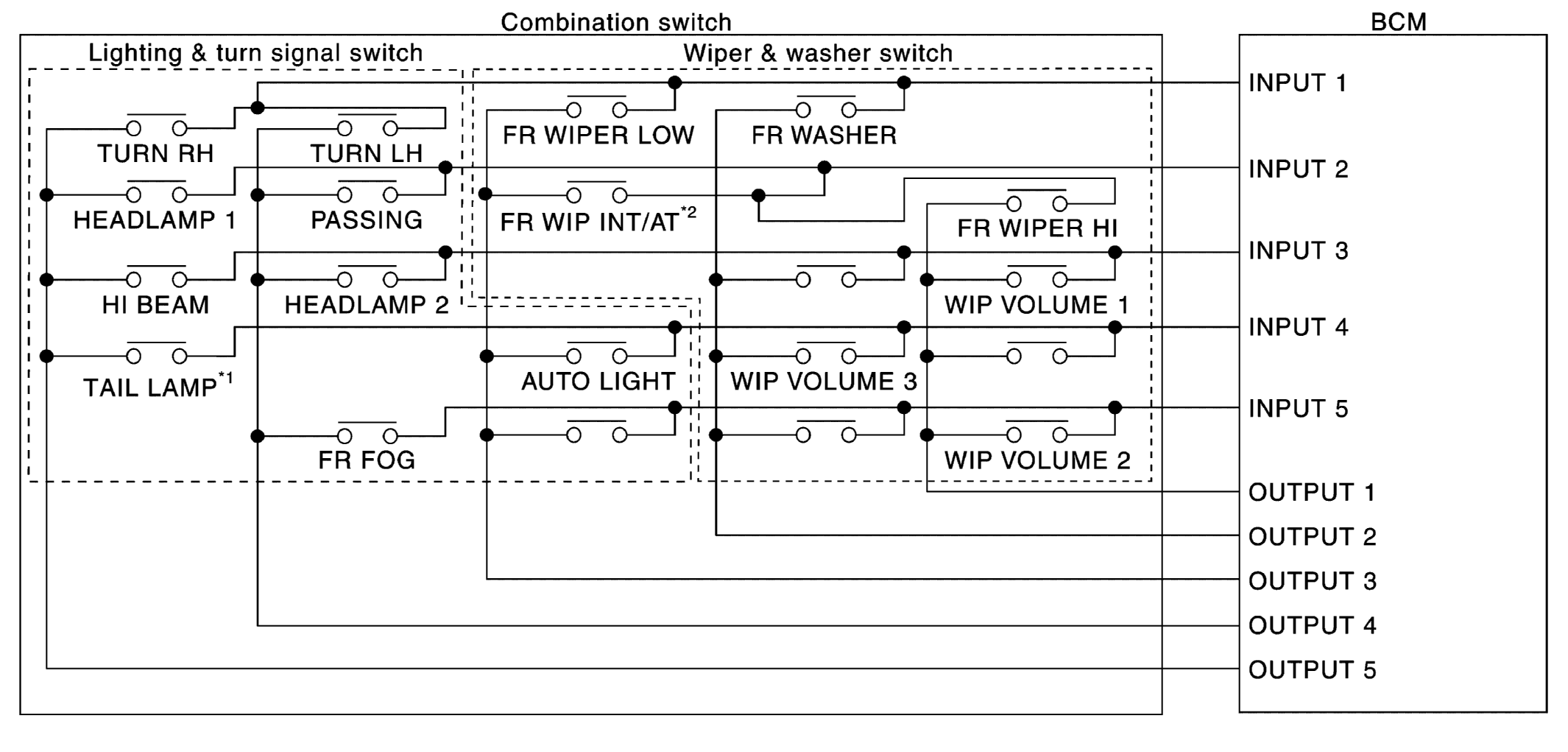

Fig 1: Combination Switch Reading System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
* 1: TAIL LAMP switch links lighting switch 1ST position.
* 2: "FR WIP INT/AT" is FR WIPER INT/AUTO.
Courtesy of NISSAN NORTH AMERICA, INC.
