Exploded View With Torque Specifications

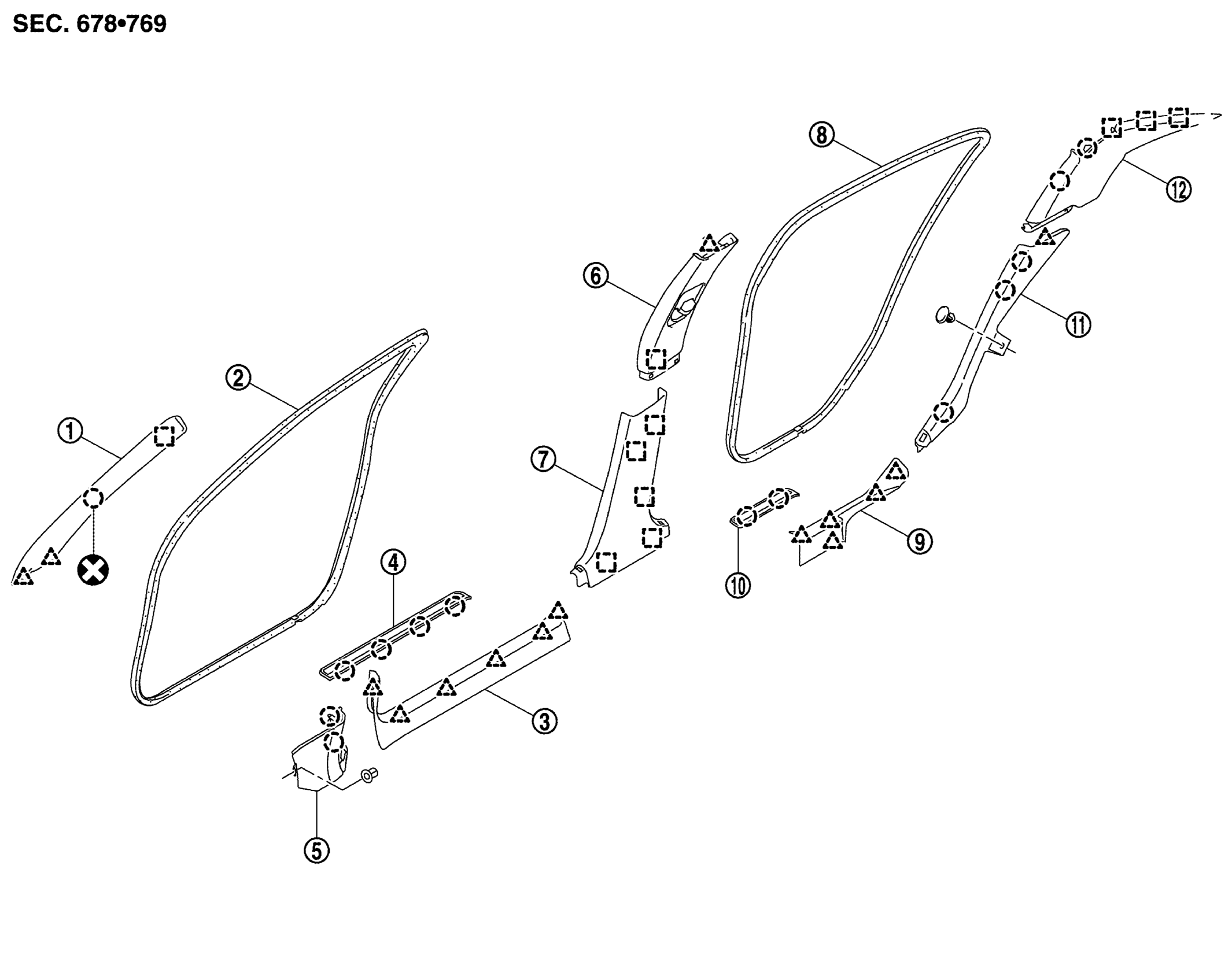

Fig 1: Exploded View Of Body Side Trim

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front pillar garnish	2.	Front body side welt	3.	Front kicking plate inner
4.	Front kicking plate outer	5.	Dash side finisher	6.	Center pillar upper garnish
7.	Center pillar lower garnish	8.	Rear body side welt	9.	Rear kicking plate inner
10.	Rear kicking plate outer	11.	Rear wheel house garnish	12.	Rear pillar finisher
	: Clip
	: Pawl
	: Metal clip
	: Always replace after every disassembly.
