Exploded View With Torque Specifications

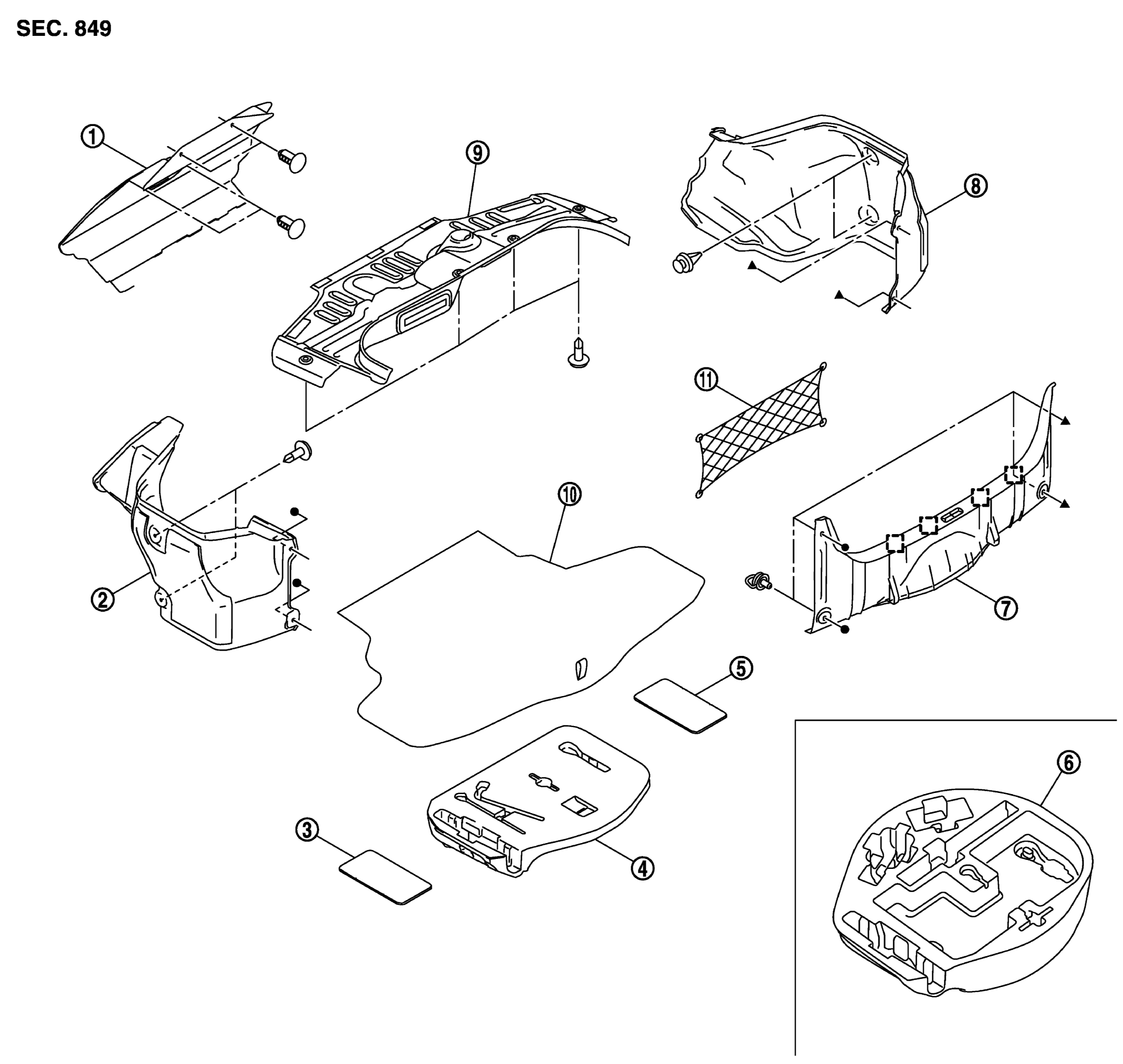

Fig 1: Exploded View Of Trunk Room Trim

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Trunk front finisher	2.	Rear wheel house finisher LH	3.	Trunk floor felt LH
4.	Trunk center box	5.	Trunk floor felt RH	6.	Trunk center box (For temporary spire tire)
7.	Trunk rear plate	8.	Rear wheel house finisher RH	9.	Trunk front finisher upper
10.	Trunk floor carpet	11.	Trunk net
	: Metal clip
, : Indicates that the part is connected at points with same symbol in actual vehicle.
