Power Window Control System
›
Ecu Diagnosis Information
›
BCM (Body Control Module)
›
BCM Wiring Diagram
BCM Wiring Diagram

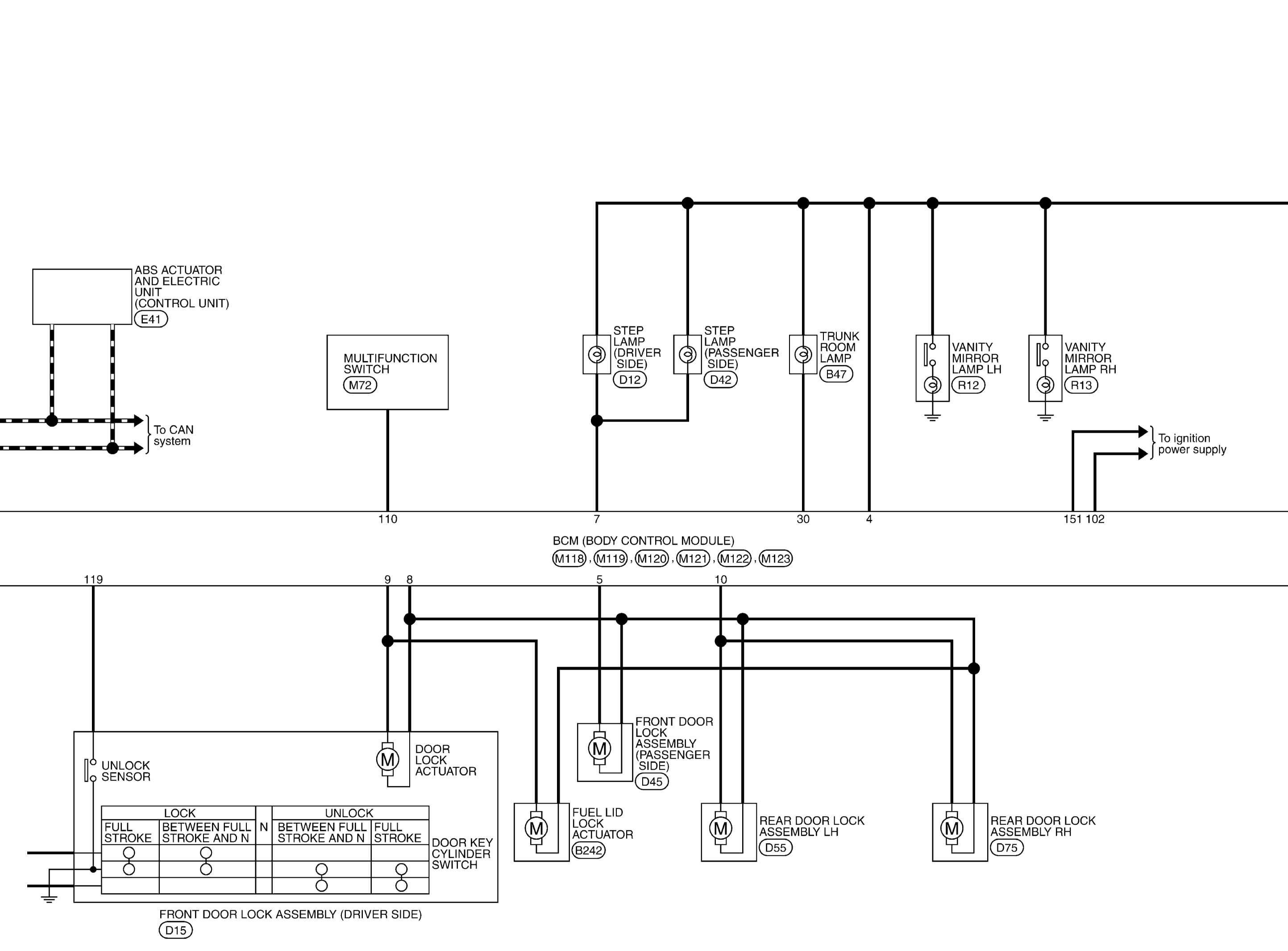

Fig 1: BCM Wiring Diagram (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

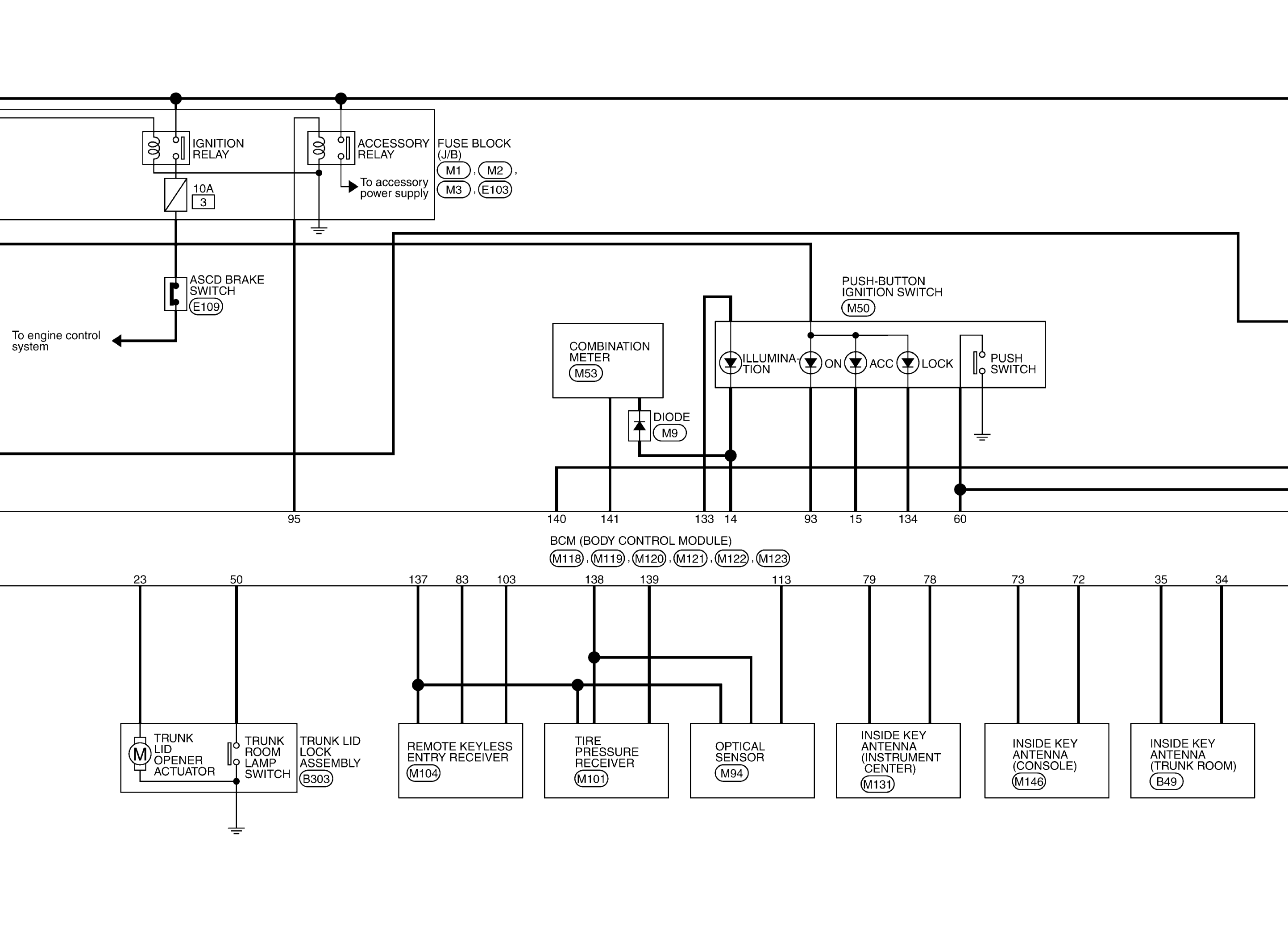

Fig 2: BCM Wiring Diagram (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

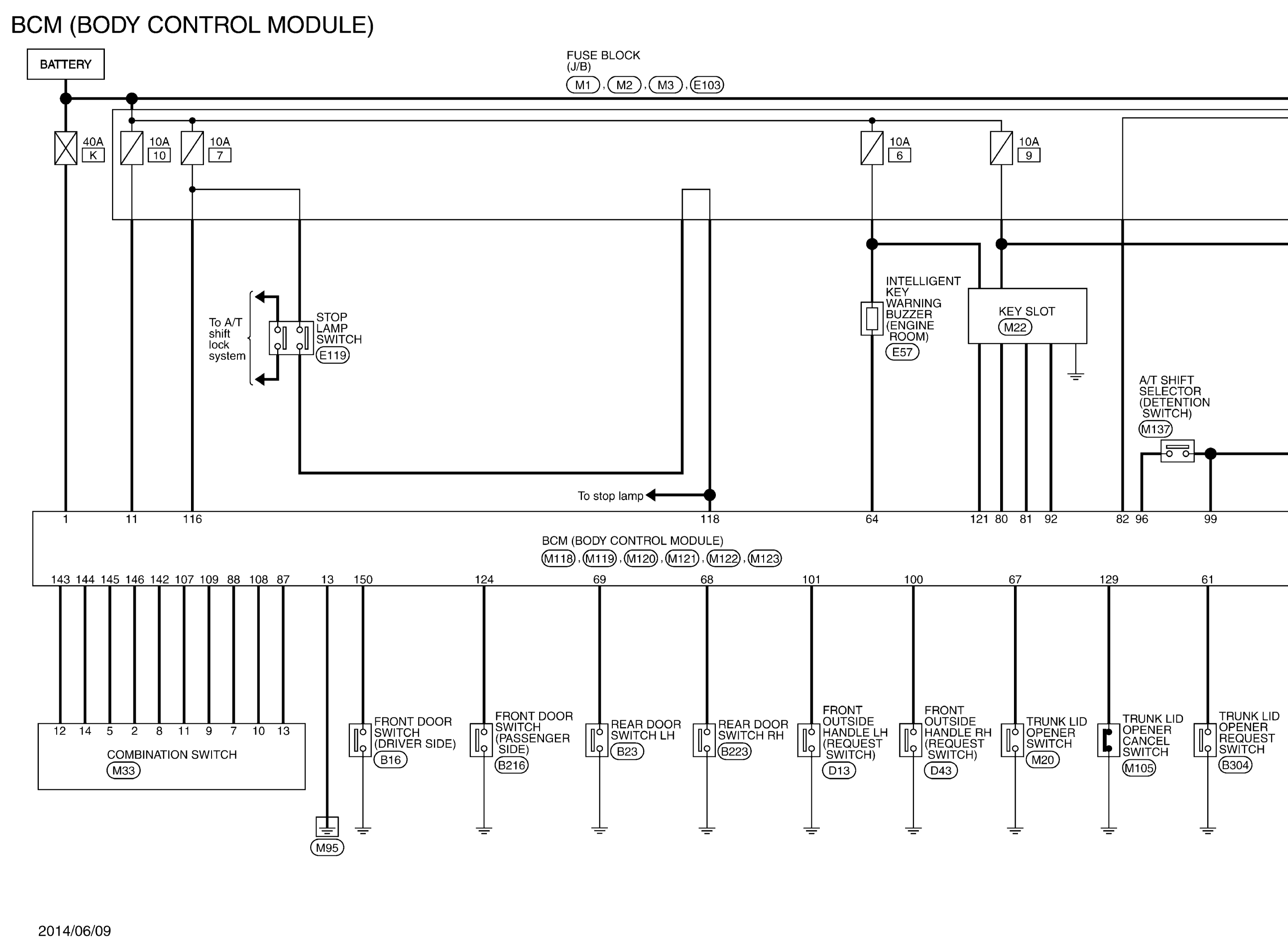

Fig 3: BCM Wiring Diagram (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

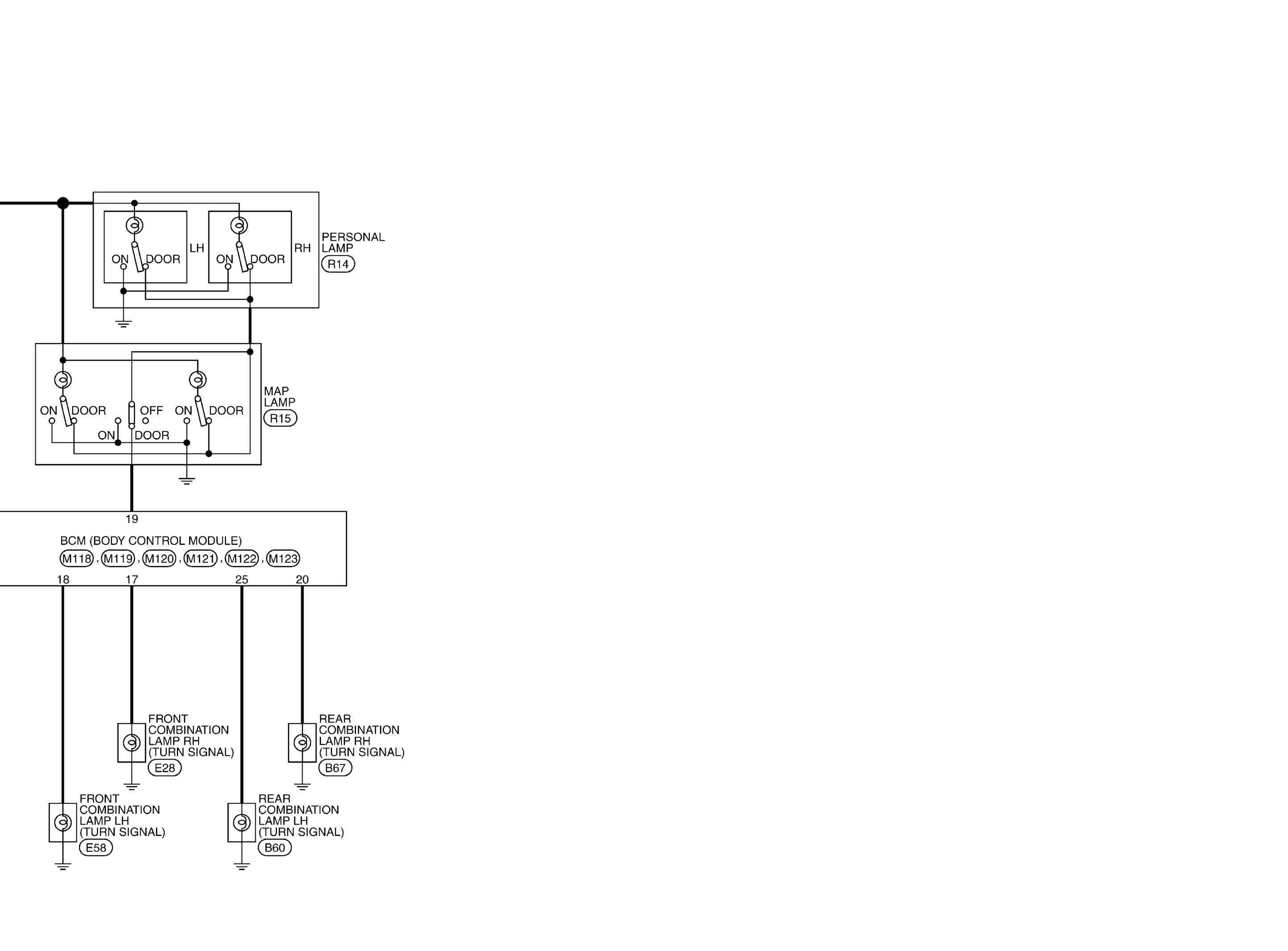

Fig 4: BCM Wiring Diagram (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

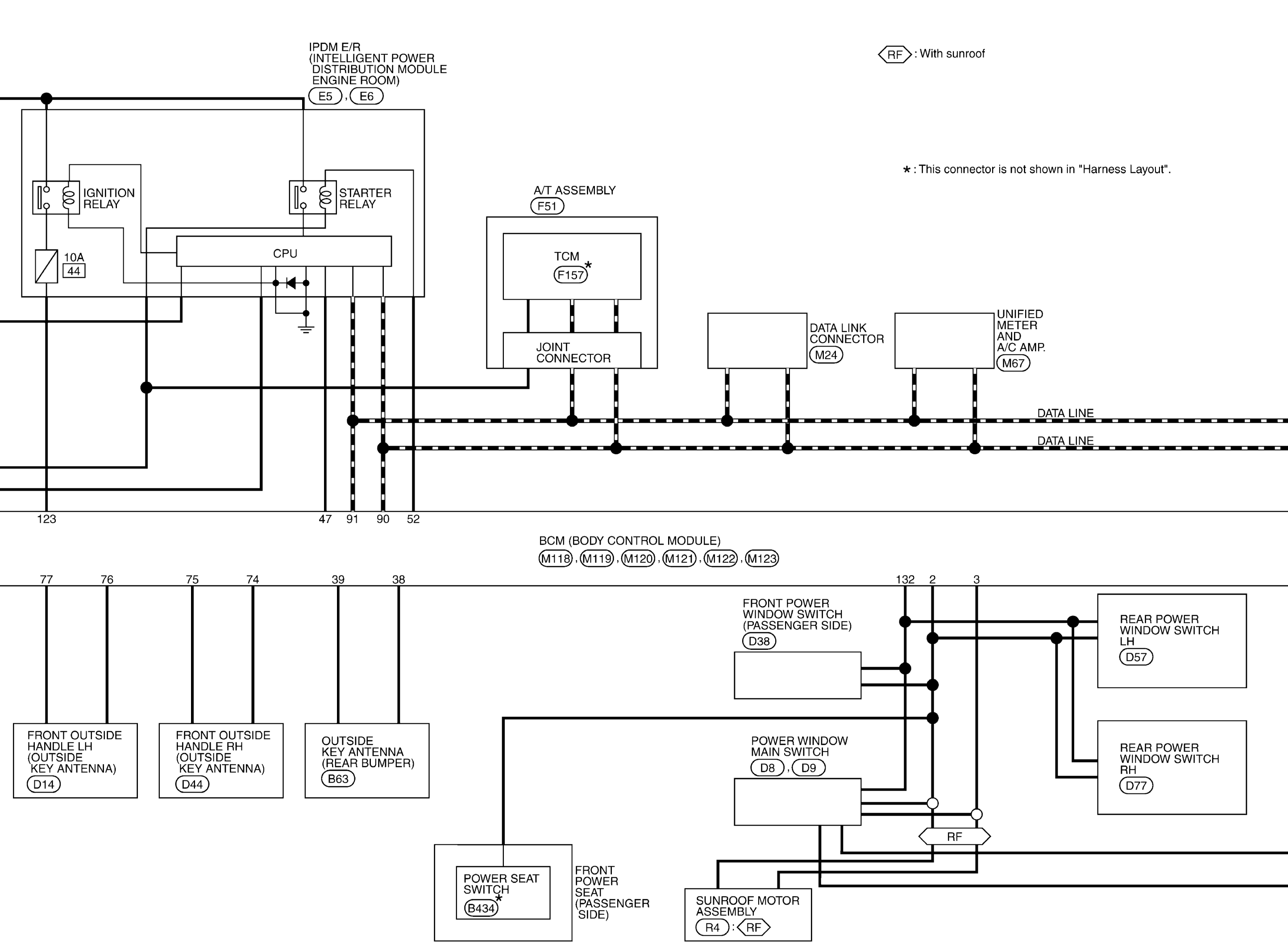

Fig 5: BCM Wiring Diagram (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
