Component Parts Location

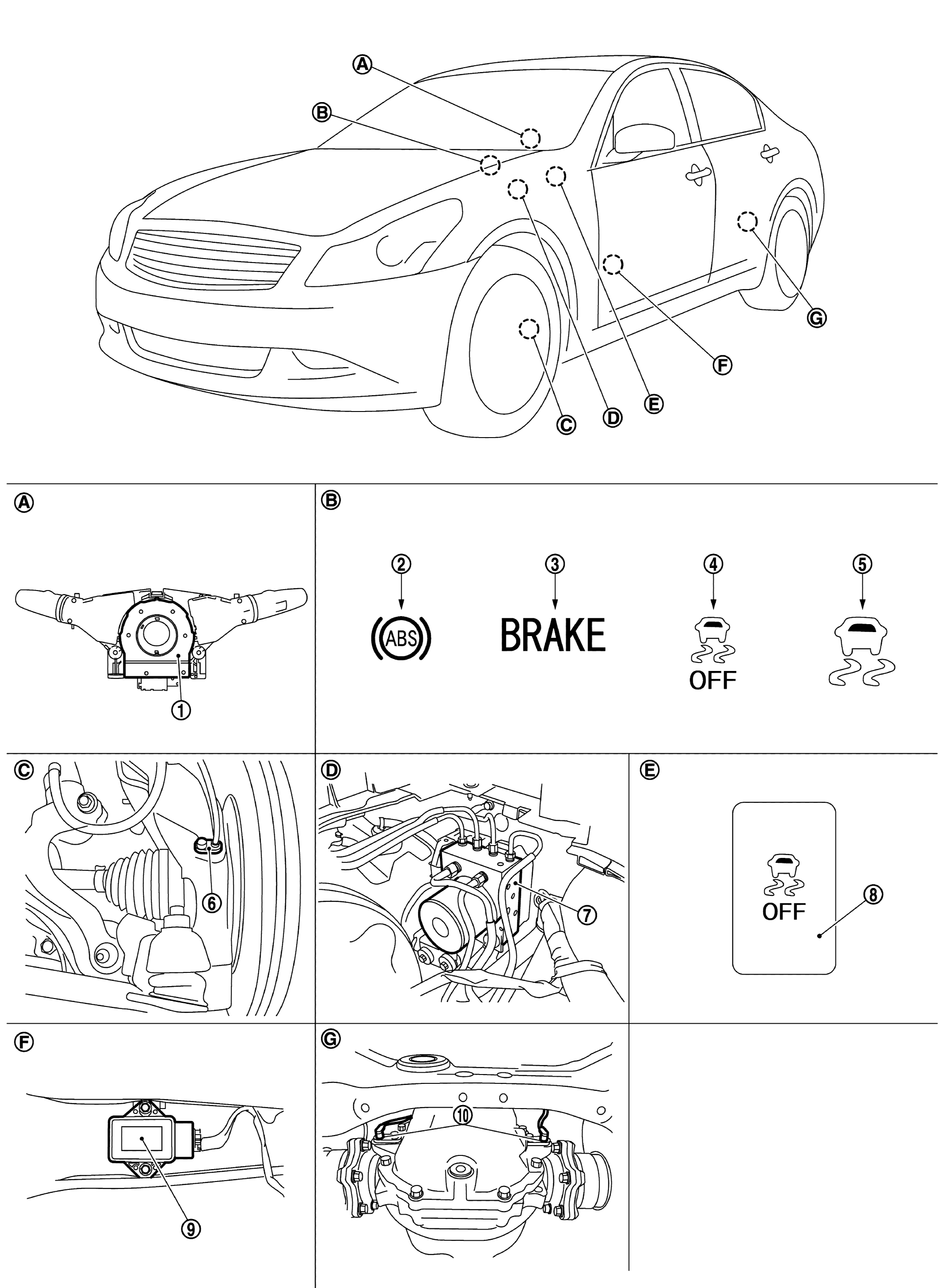

For USA
| 1. | Steering angle sensor | 2. | ABS warning lamp | 3. | Brake warning lamp |
| 4. | VDC OFF indicator lamp | 5. | VDC warning lamp | 6. | Front wheel sensor |
| 7. | ABS actuator and electric unit (control unit) | 8. | VDC OFF switch | 9. | Yaw rate/side G sensor |
| 10. | Rear wheel sensor | ||||
| A. | Back of spiral cable assembly | B. | Combination meter | C. | Steering knuckle |
| D. | Inside brake master cylinder cover | E. | Instrument driver lower panel | F. | Under center console |
| G. | Rear final drive assembly |

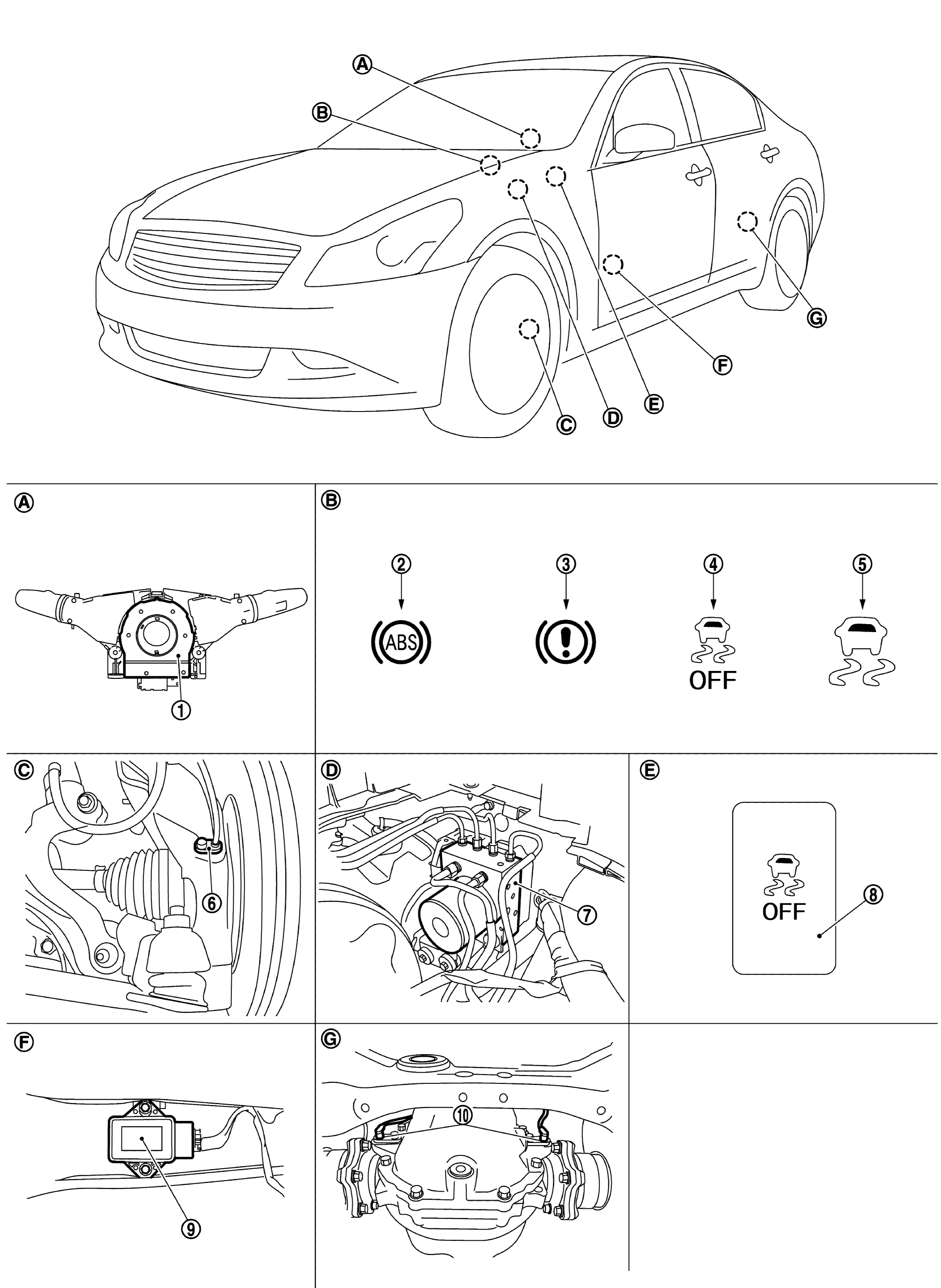

Except for USA
| 1. | Steering angle sensor | 2. | ABS warning lamp | 3. | Brake warning lamp |
| 4. | VDC OFF indicator lamp | 5. | VDC warning lamp | 6. | Front wheel sensor |
| 7. | ABS actuator and electric unit (control unit) | 8. | VDC OFF switch | 9. | Yaw rate/side G sensor |
| 10. | Rear wheel sensor | ||||
| A. | Back of spiral cable assembly | B. | Combination meter | C. | Steering knuckle |
| D. | Inside brake master cylinder cover | E. | Instrument driver lower panel | F. | Under center console |
| G. | Rear final drive assembly |
