Component Parts Location

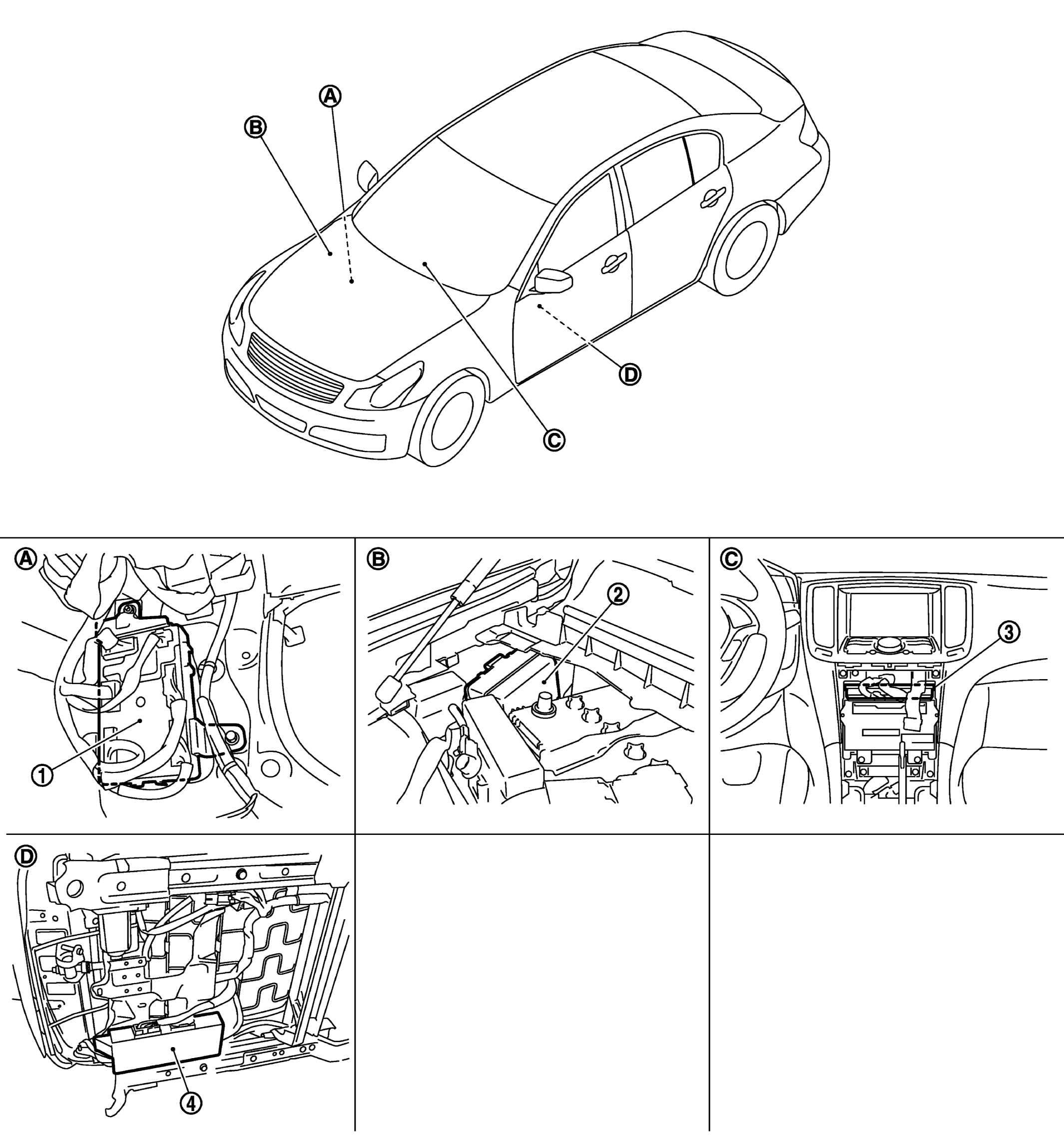

Fig 1: Power Consumption Control System Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	BCM	2.	IPDM E/R	3.	Unified meter and A/C amp.
4.	Driver seat control unit
A.	Dash side lower (passenger side)	B.	Engine room dash panel (RH)	C.	Behind Cluster lid C
D.	Backside of the seat cushion (driver seat)
