Component Parts Location

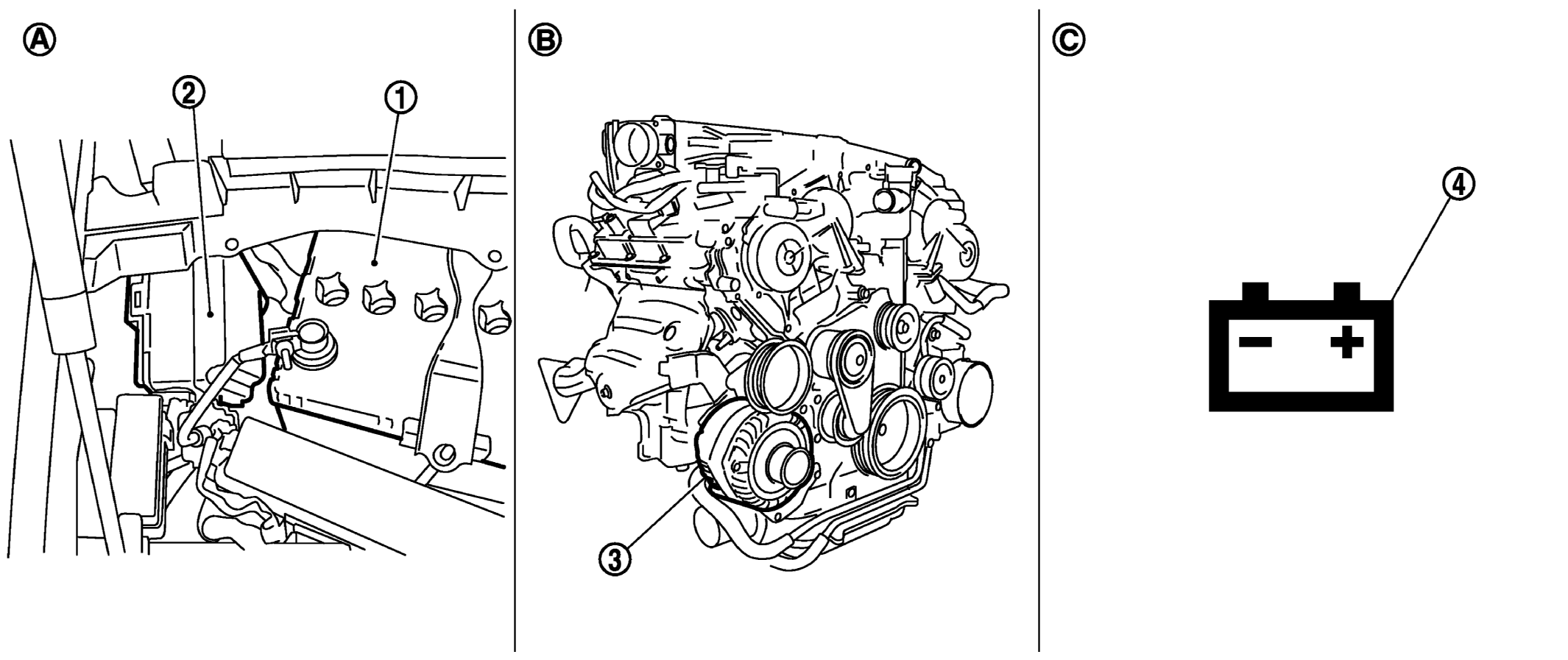

Fig 1: Charging System Components Location
G08448127Courtesy of NISSAN NORTH AMERICA, INC.
1. Battery 2. IPDM E/R 3. Alternator
4. Charge warning lamp
A. Engine room dash panel RH B. Engine C. Combination meter
