Disassembly And Assembly: Disassembly

Remove center console assembly. Refer to REMOVAL AND INSTALLATION .
Remove console mask.

Fig 1: Removing Console Mask
Courtesy of NISSAN NORTH AMERICA, INC.
- Open the console lid.
- Remove console mask (1) fixing pawls with remover tool (A).
: Pawl
Remove console lid assembly (1) fixing screws (A), and then remove console lid assembly.

Fig 2: Identifying Console Lid Assembly And Fixing Screws
Courtesy of NISSAN NORTH AMERICA, INC.
Remove console front bracket.

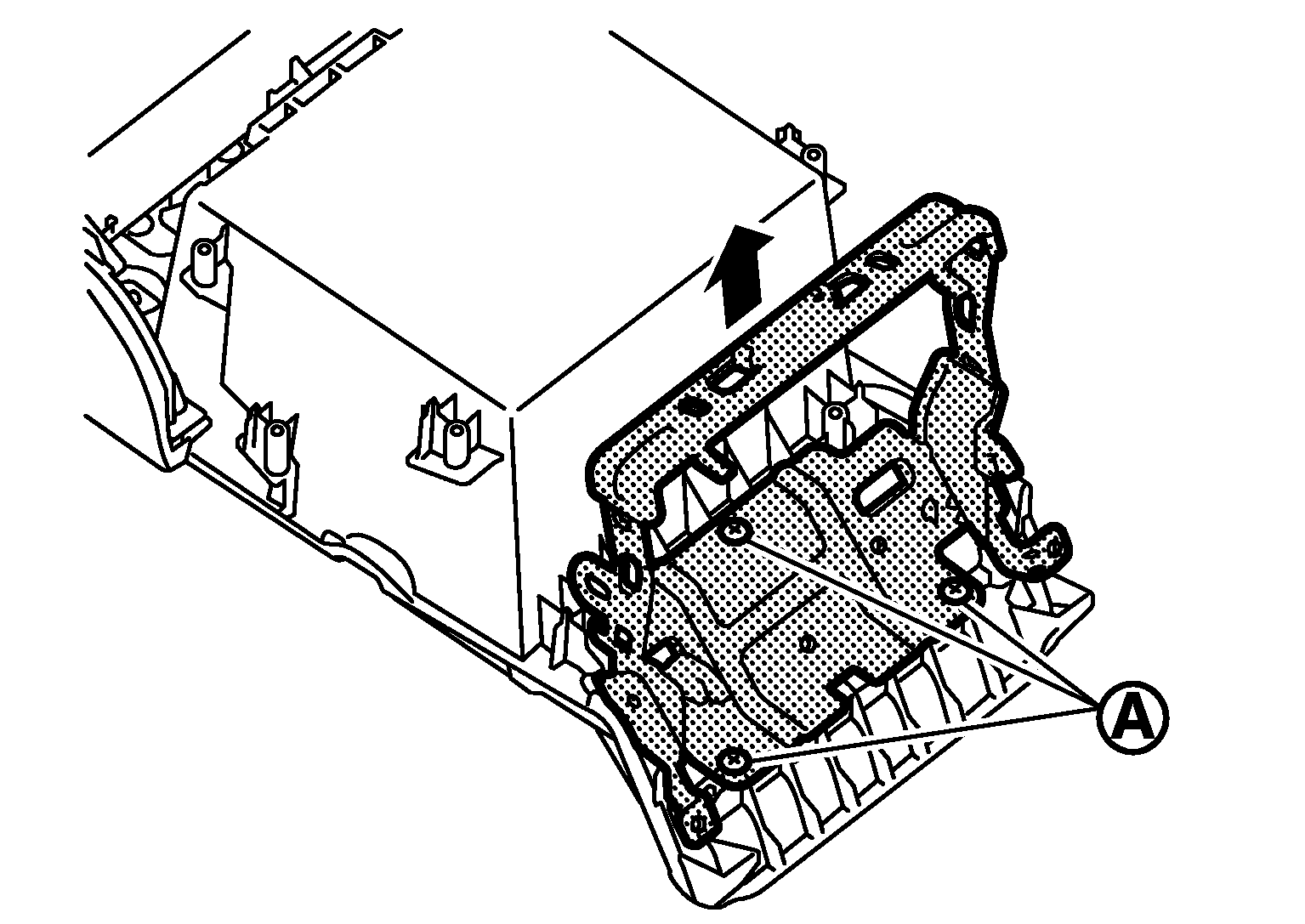

Fig 3: Removing Console Front Bracket
Courtesy of NISSAN NORTH AMERICA, INC.
- Remove console front bracket fixing screws (A).
- Pull the console front bracket toward the direction of the arrow.
Remove console body RH.

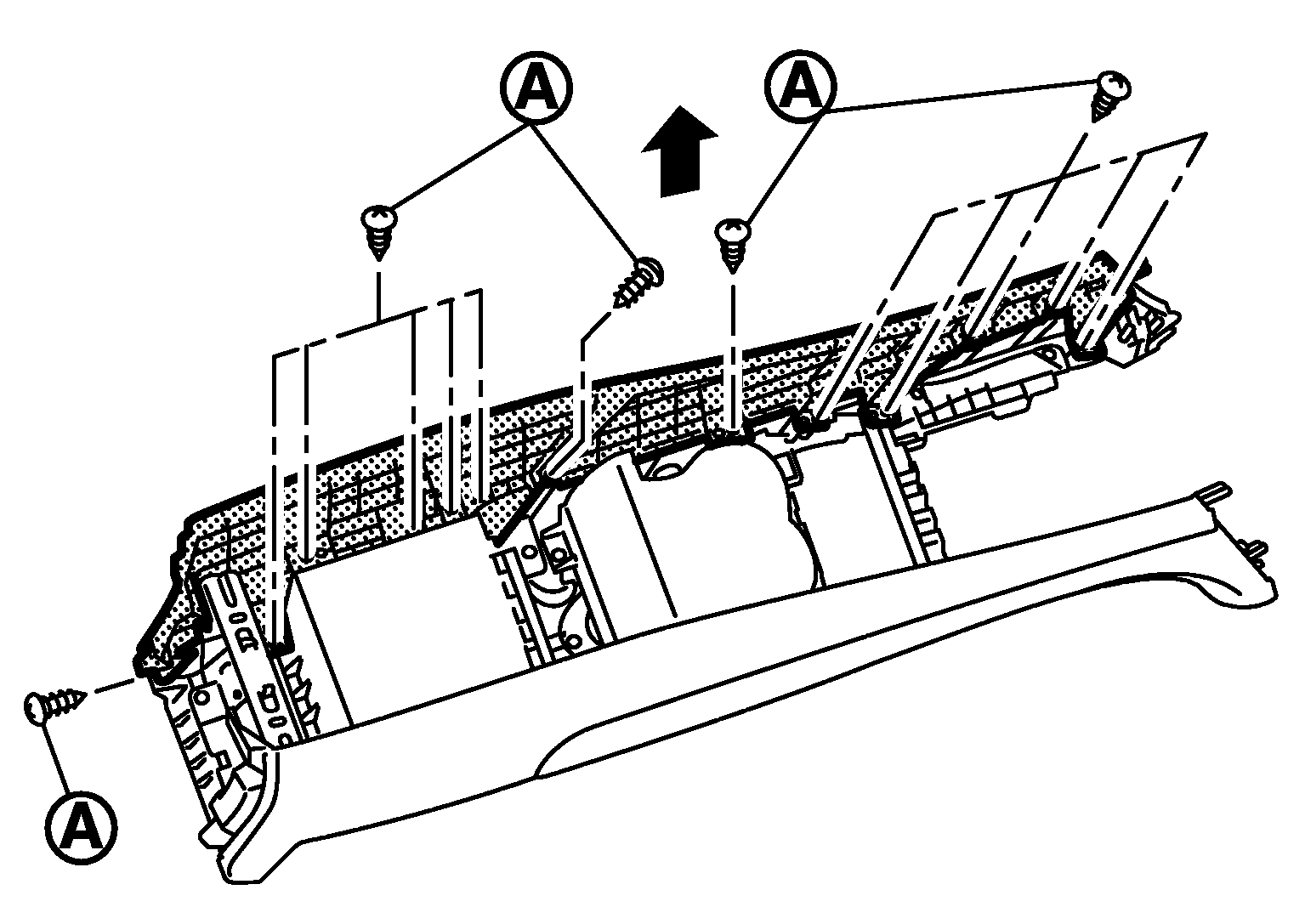

Fig 4: Removing Console Body RH
Courtesy of NISSAN NORTH AMERICA, INC.
- Remove console body RH fixing screws (A).
- Pull the console body RH toward the direction of the arrow.
Remove console body LH.

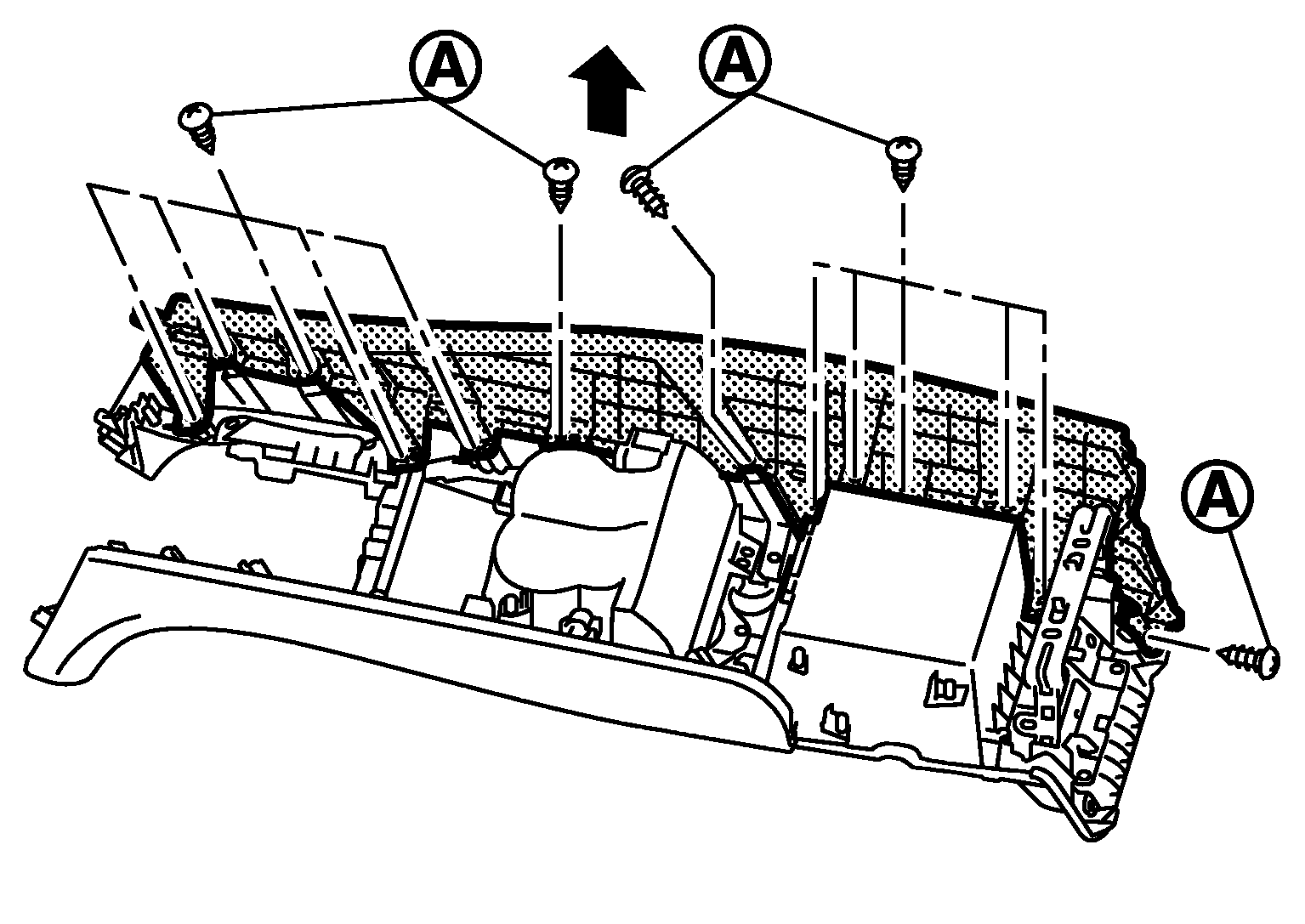

Fig 5: Removing Console Body LH
Courtesy of NISSAN NORTH AMERICA, INC.
- Remove console body LH fixing screws (A).
- Pull the console body LH toward the direction of the arrow.
Remove console reinforcement.

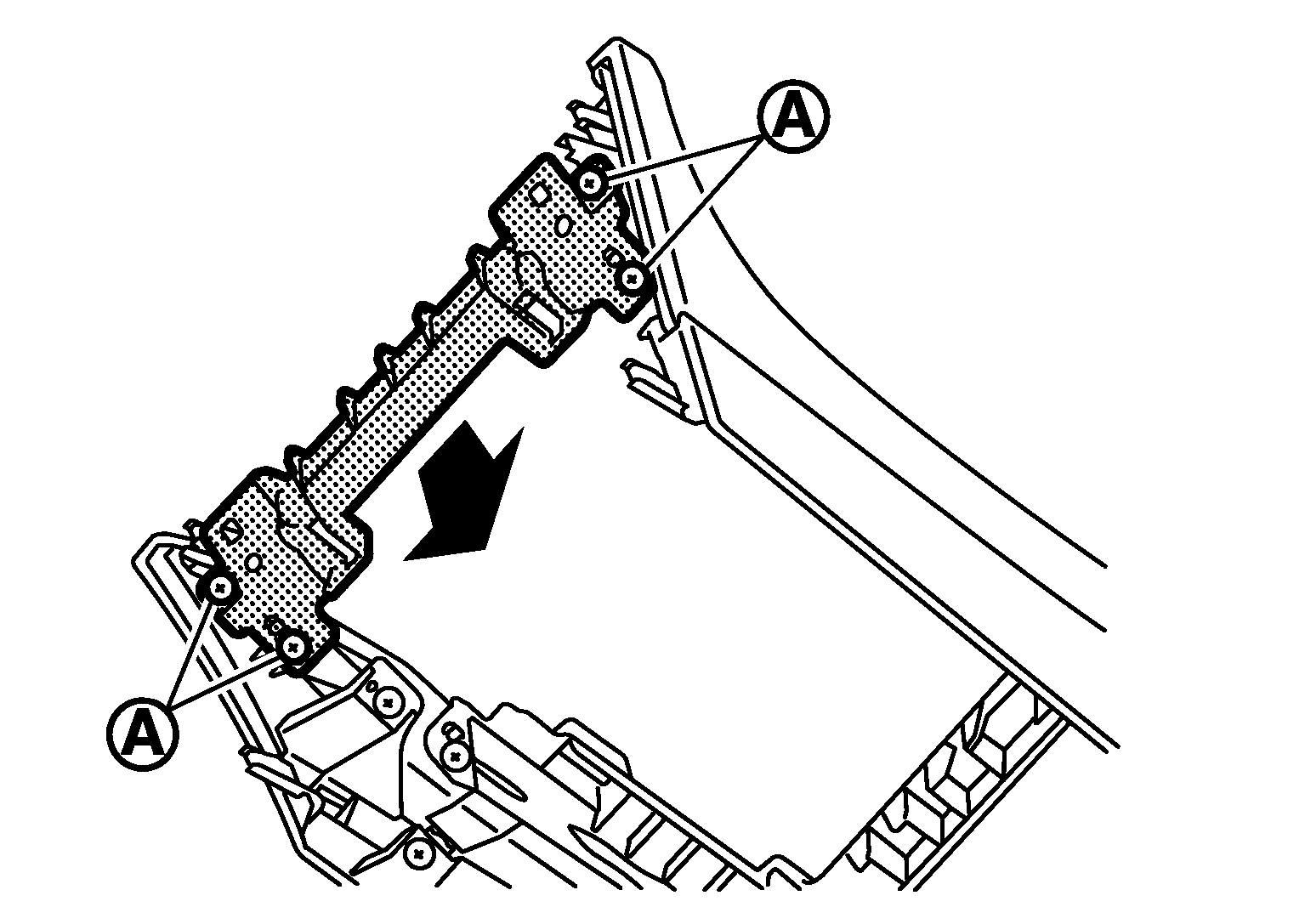

Fig 6: Removing Console Reinforcement
Courtesy of NISSAN NORTH AMERICA, INC.
- Remove console reinforcement fixing screws (A).
- Pull the console reinforcement toward the direction of the arrow.
Remove console box assembly.

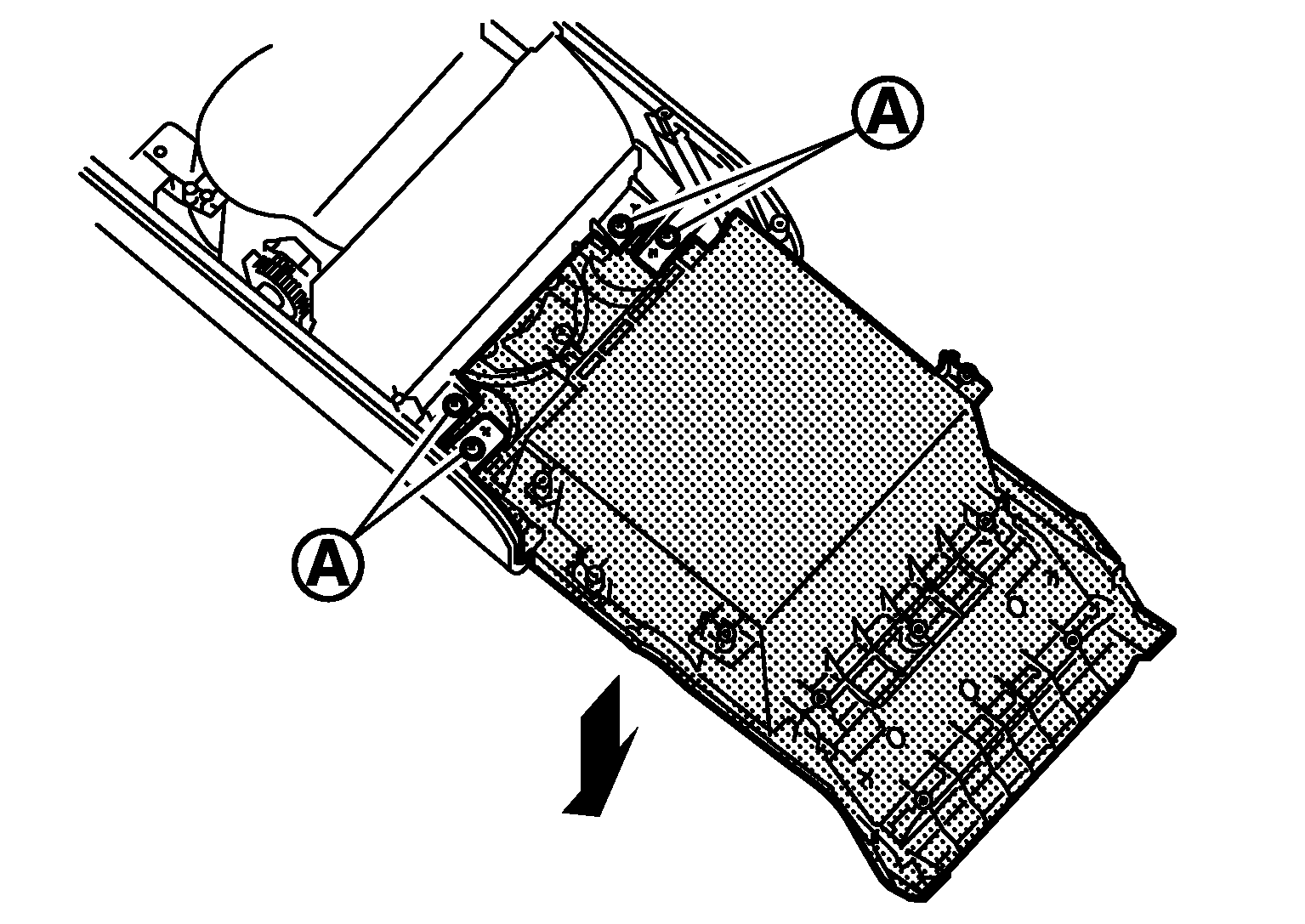

Fig 7: Removing Console Box Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
- Remove console box assembly fixing screws (A).
- Pull the console box assembly toward the direction of the arrow.
Remove cup holder assembly.

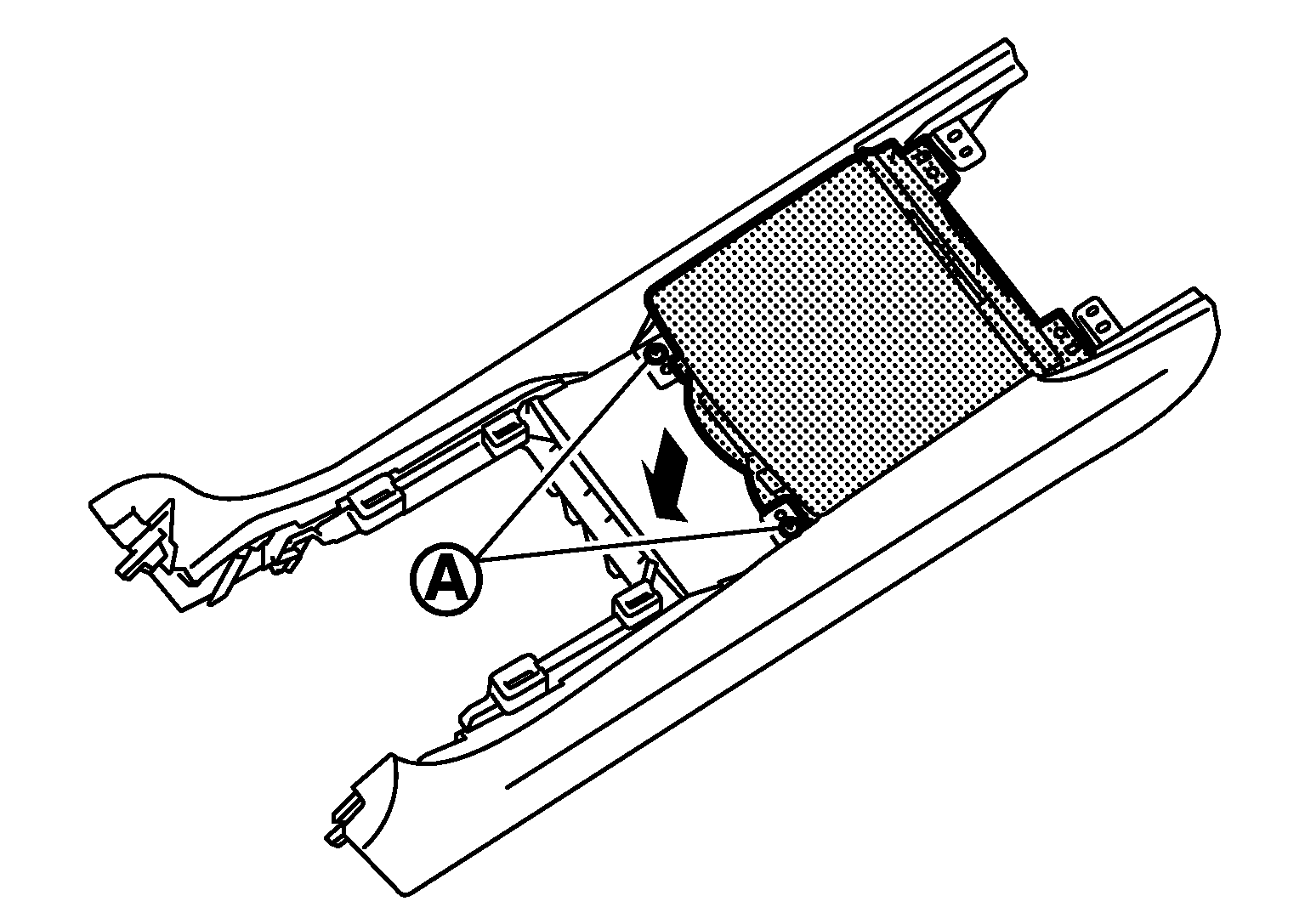

Fig 8: Removing Cup Holder Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
- Remove cup holder assembly fixing screws (A).
- Pull the cup holder assembly toward the direction of the arrow.
