Exploded View With Torque Specifications

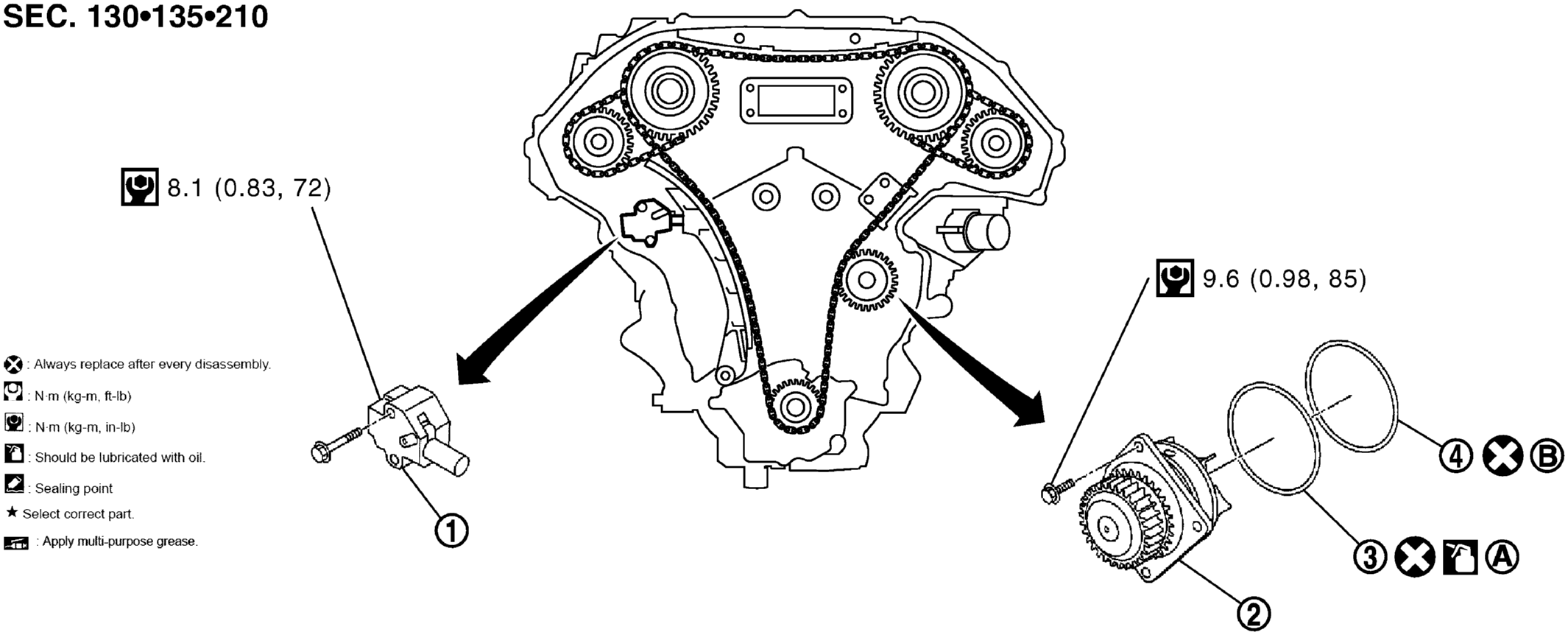

Fig 1: Exploded View Of Water Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Timing chain tensioner (primary)	2.	Water pump	3.	O-ring
4.	O-ring
A.	Identify with yellow paint mark	B.	Identify with light blue paint mark Apply engine coolant
Refer to COMPONENTS for symbols in the figure.
