System Description
›
Occupant Classification System
›
Component Parts Location
Component Parts Location

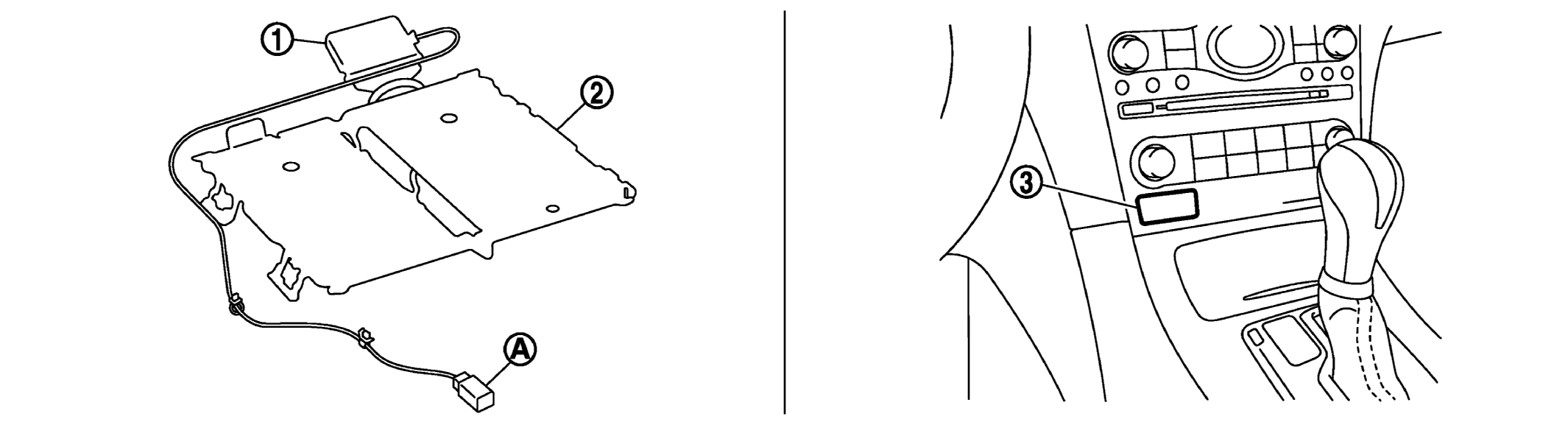

Fig 1: Occupant Classification System Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Occupant Classification System control unit
2.
Occupant Classification System seat sensor mat
3.
Front passenger air bag OFF indicator
A.
Occupant Classification System harness connector
