Exploded View With Torque Specifications

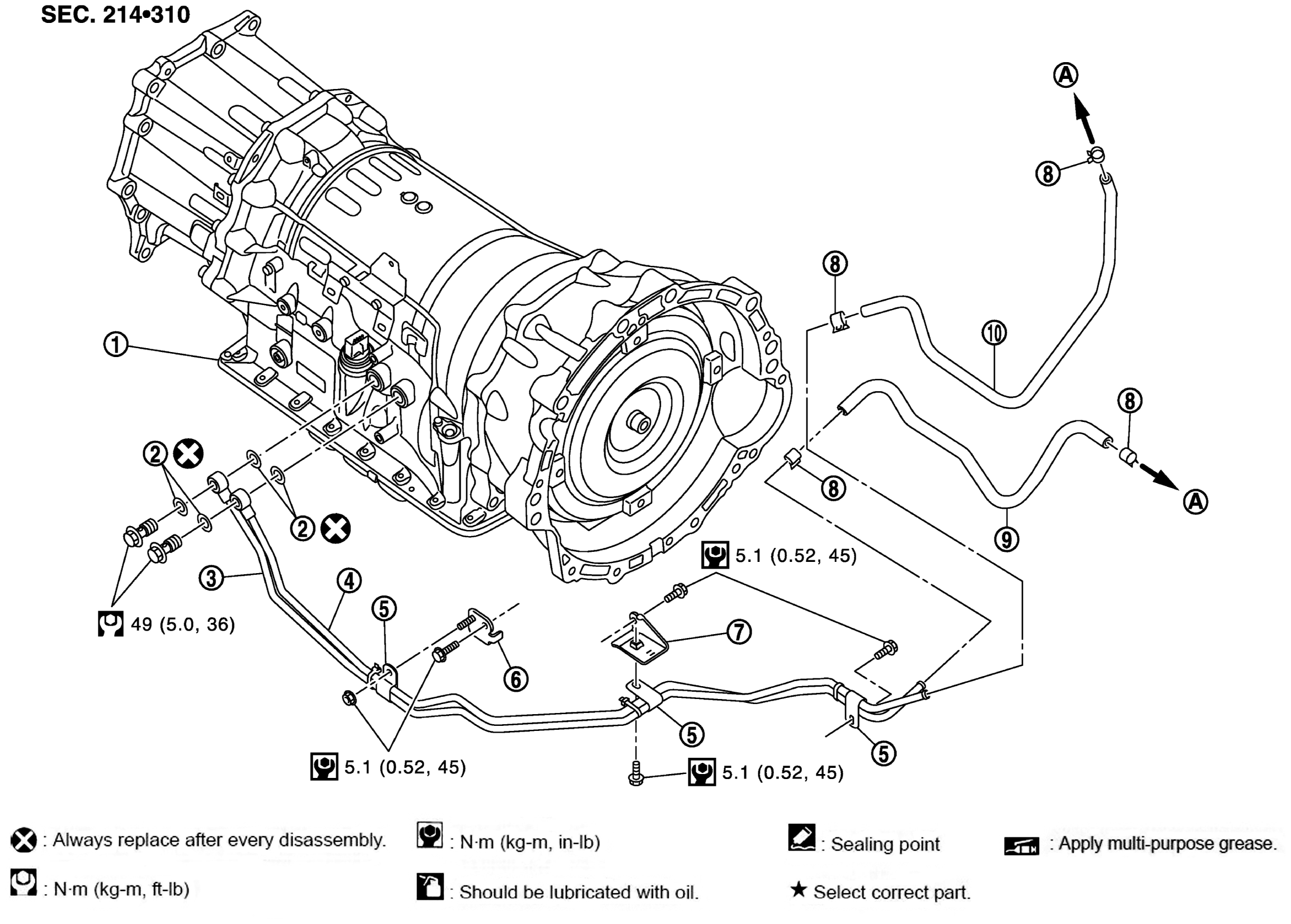

Fig 1: Exploded View Of Fluid Cooler System With Torque Specifications (AWD)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/T assembly	2.	Copper washer	3.	A/T fluid cooler tube
4.	A/T fluid cooler tube	5.	Clip	6.	Bracket
7.	Bracket	8.	Hose clamp	9.	A/T fluid cooler hose B
10.	A/T fluid cooler hose A
A.	To radiator
Refer to COMPONENTS for symbols in the figure.
