Exploded View With Torque Specifications

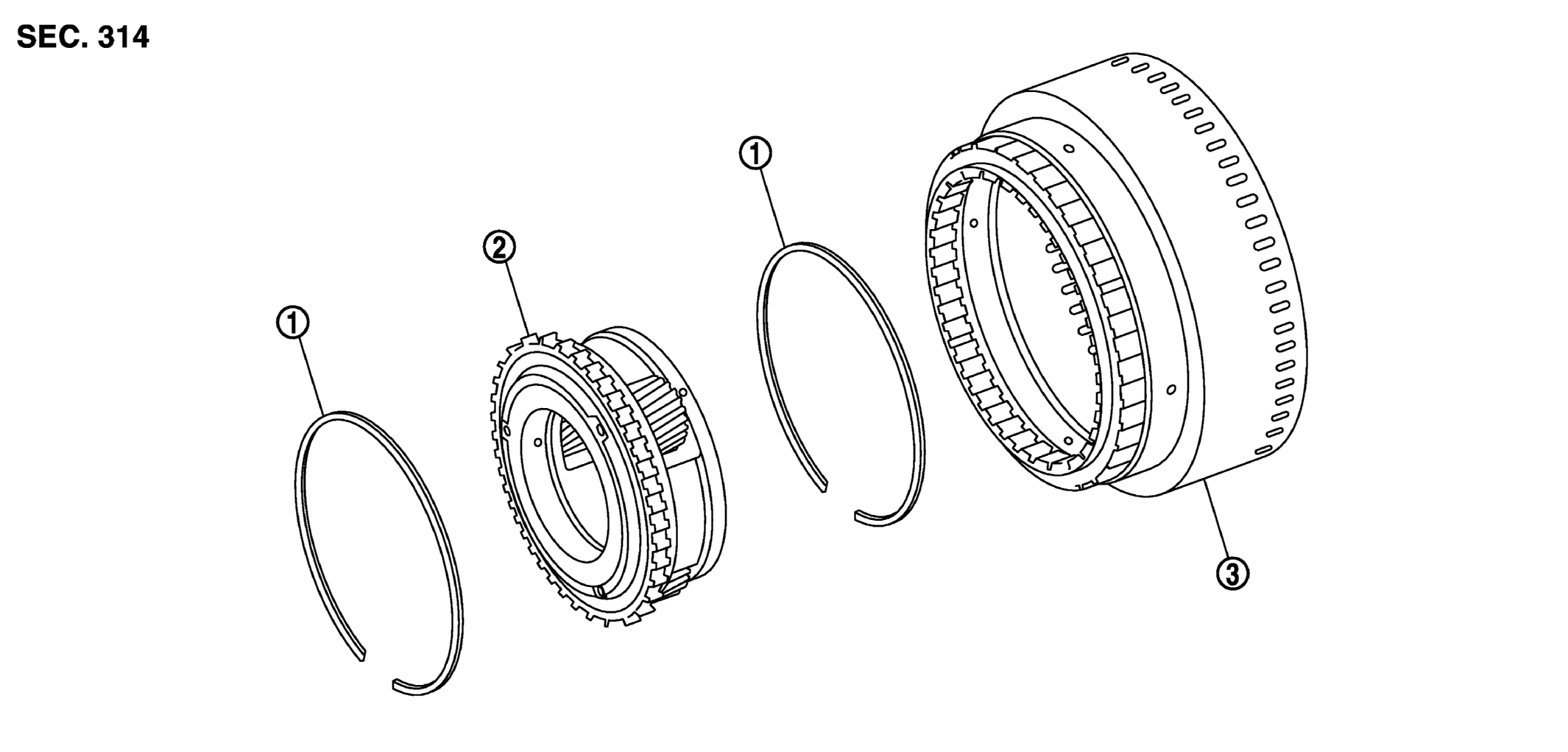

Fig 1: Exploded View Of Under Drive Carrier, Front Brake Hub

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Snap ring	2.	Under drive carrier assembly	3.	Front brake hub
Refer to COMPONENTS for symbols in the figure.
