System Description
›
System
›
Vehicle Security System
›
Circuit Diagram
Circuit Diagram

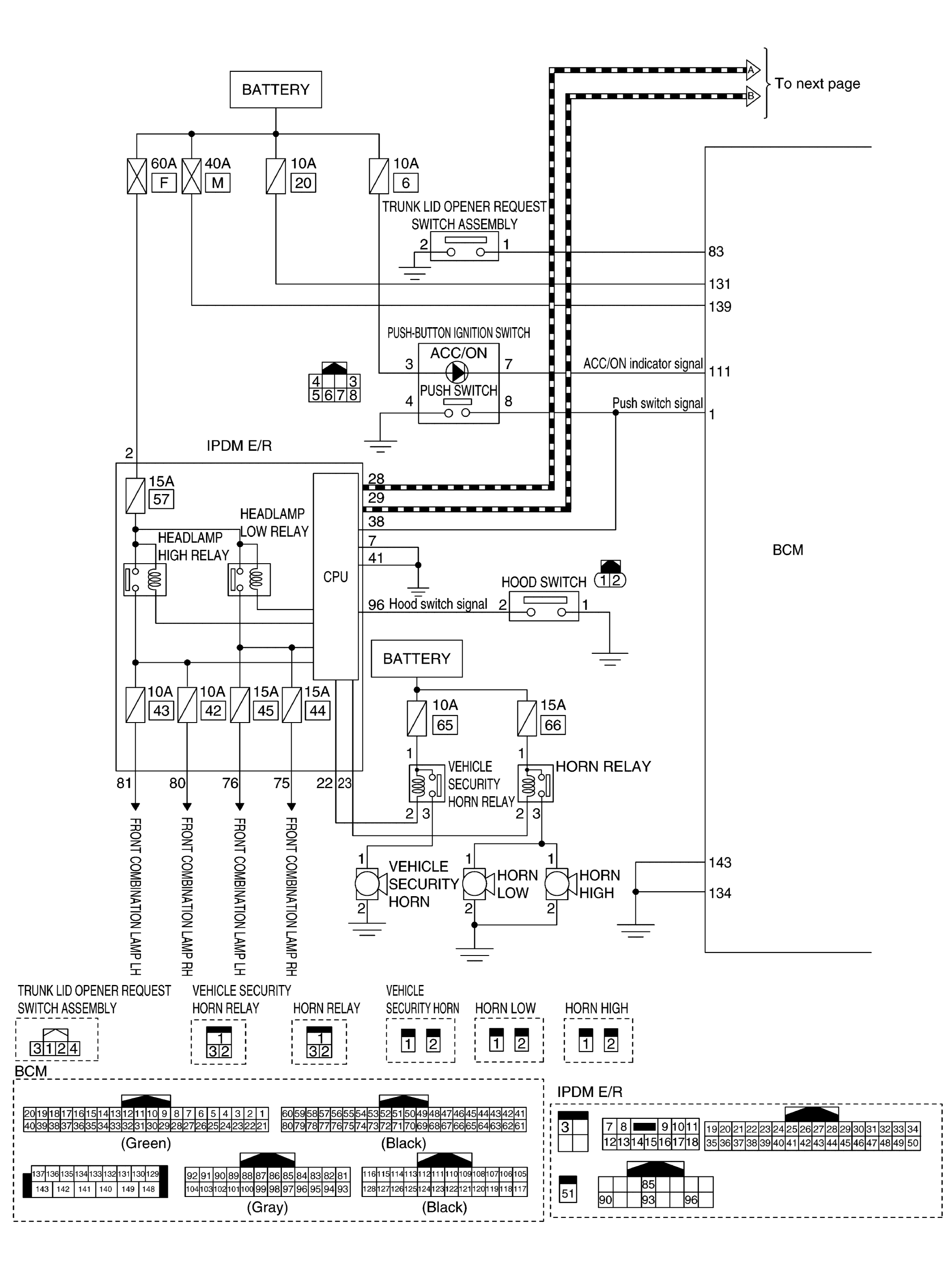

Fig 1: Vehicle Security System Circuit Diagram With Connectors (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Vehicle Security System Circuit Diagram With Connectors (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
