Security Control System Connectors

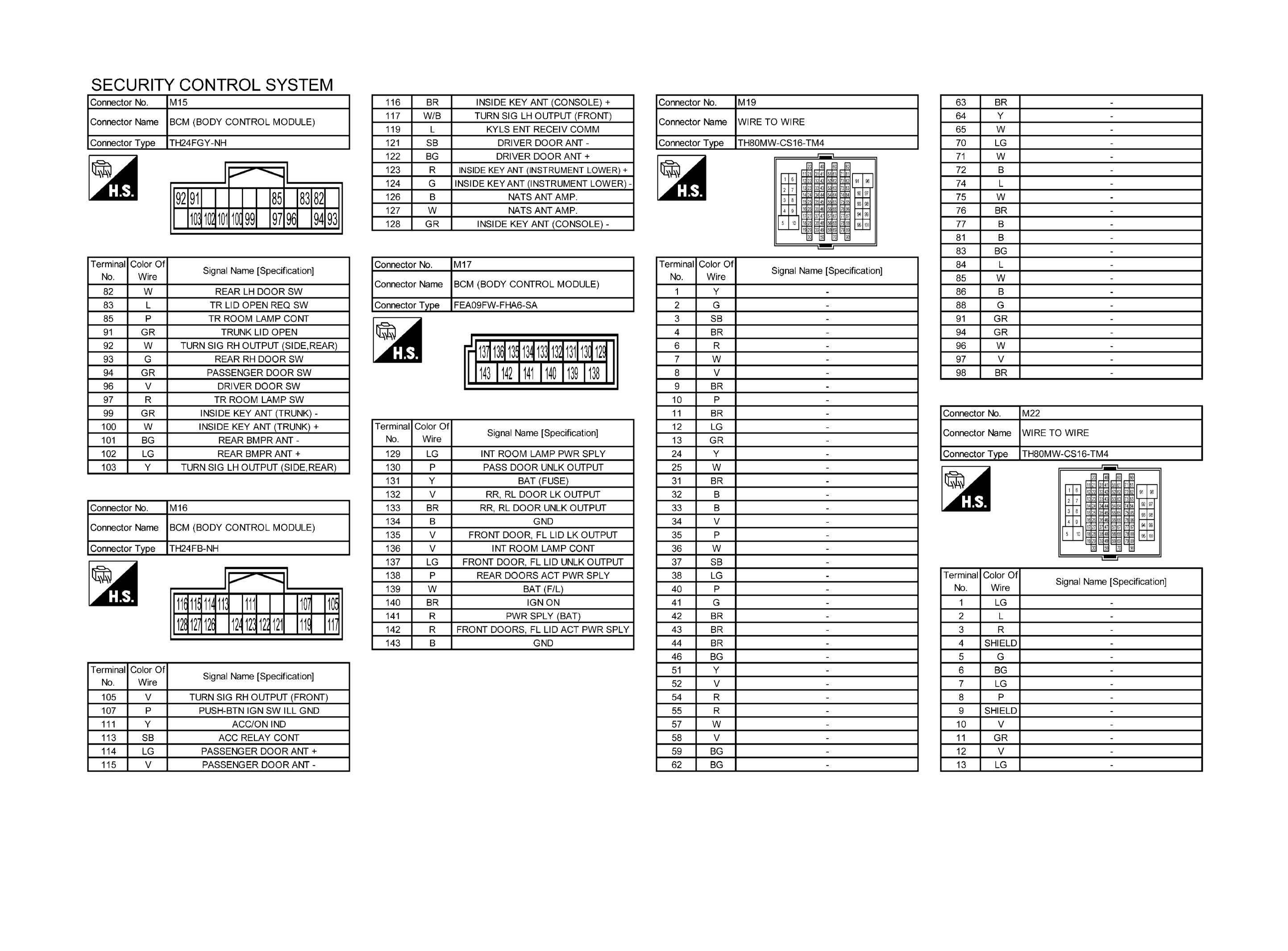

Fig 1: Security Control System Connectors (1 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

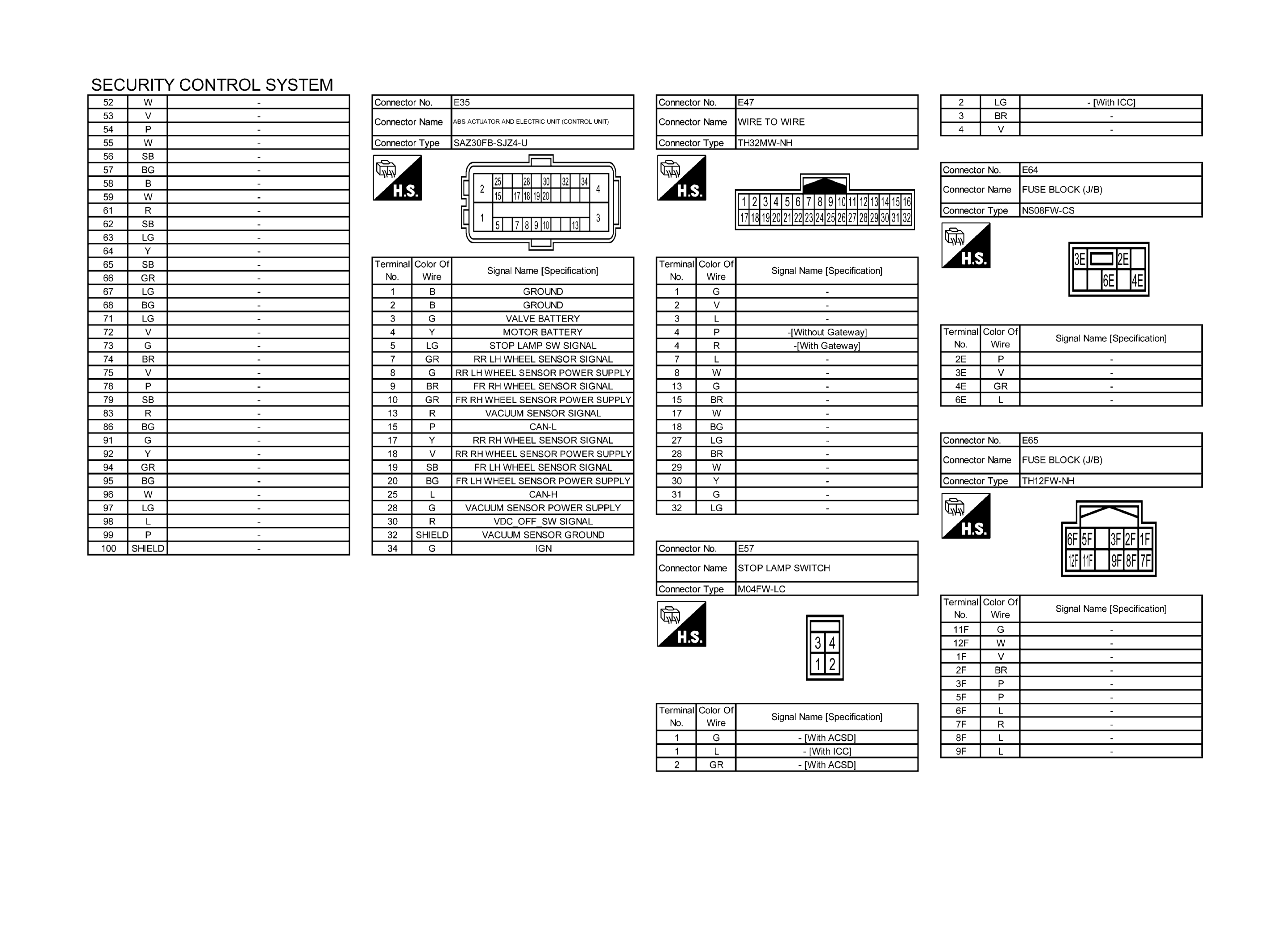

Fig 2: Security Control System Connectors (2 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

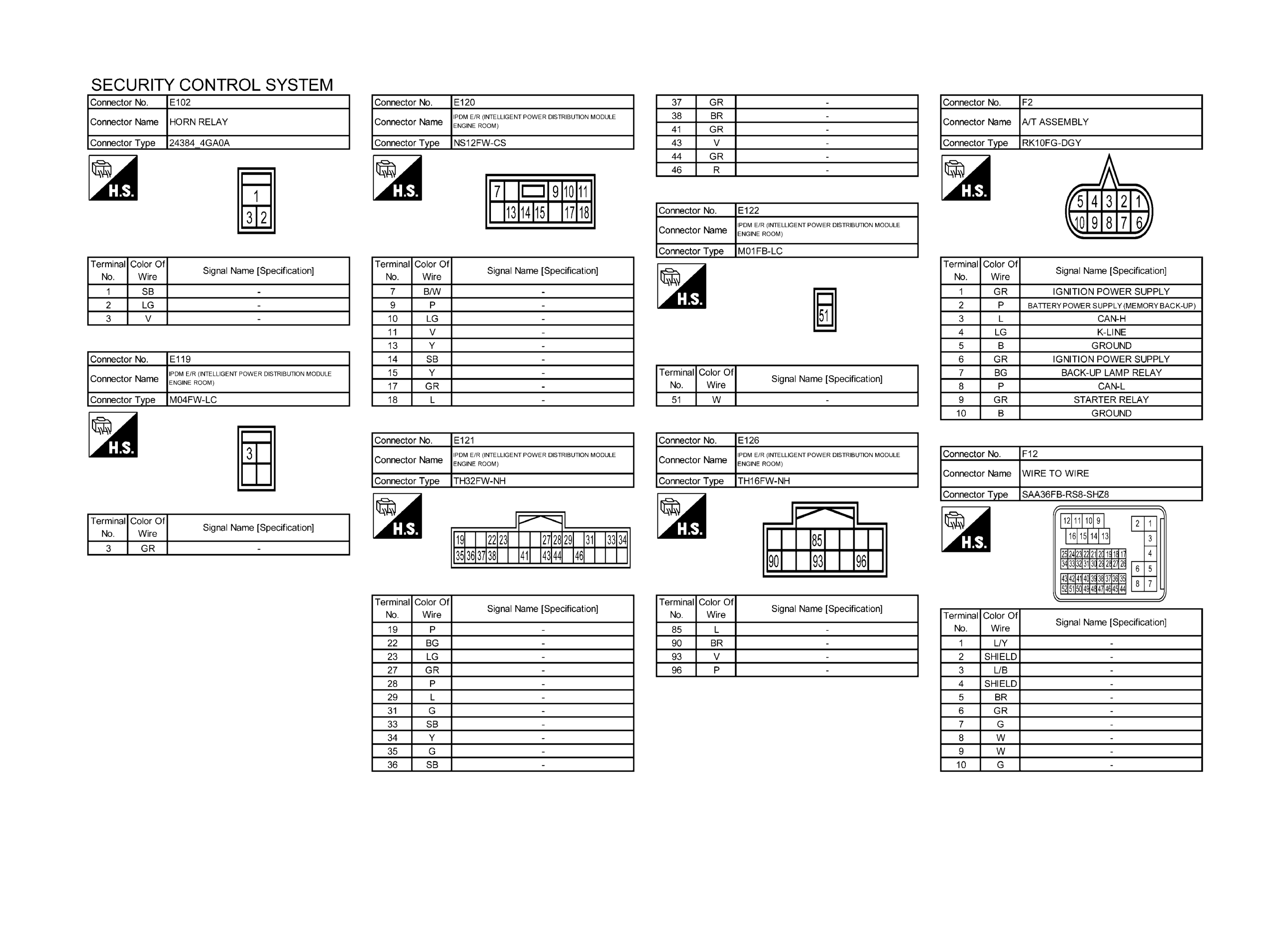

Fig 3: Security Control System Connectors (3 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

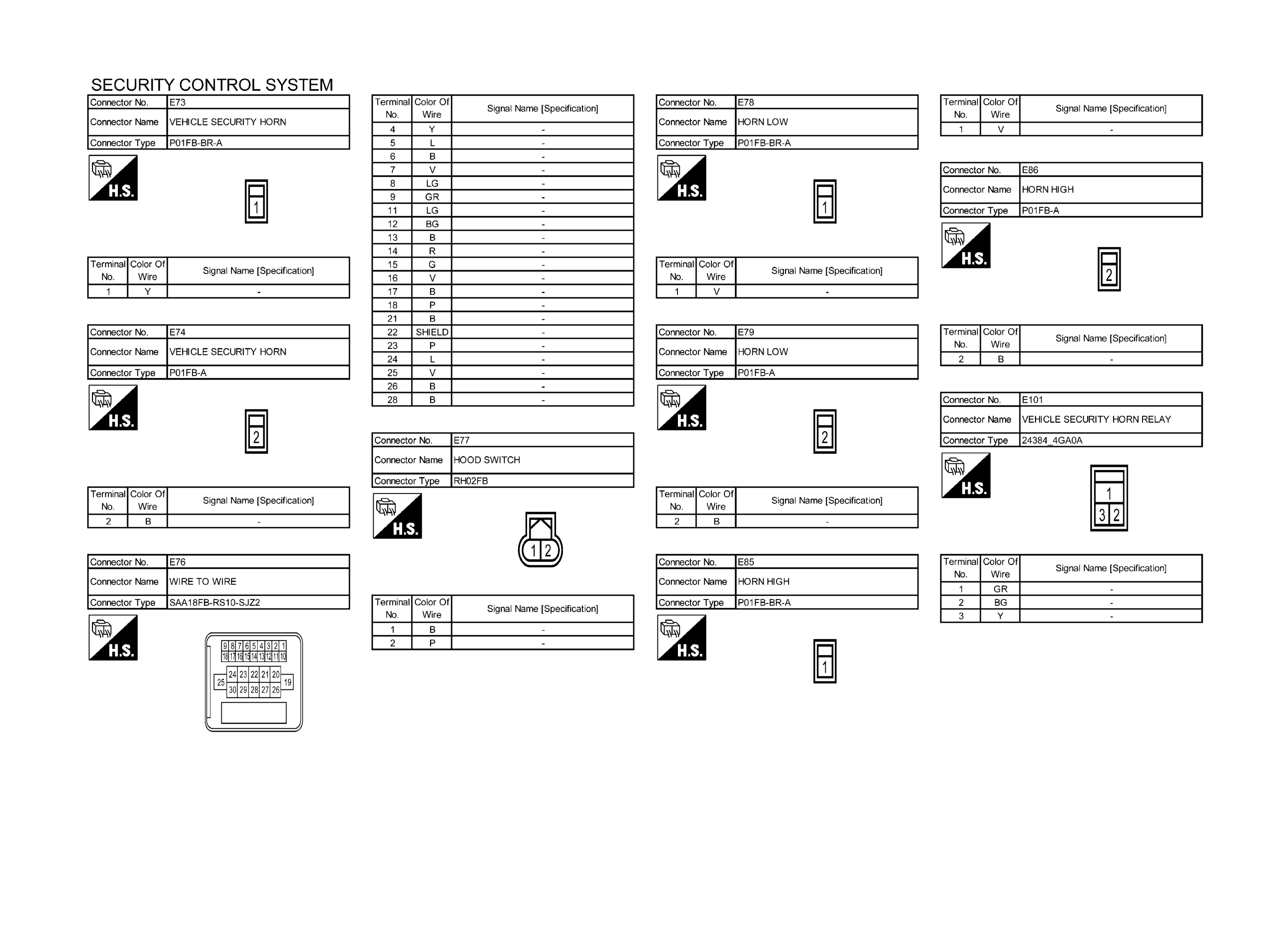

Fig 4: Security Control System Connectors (4 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

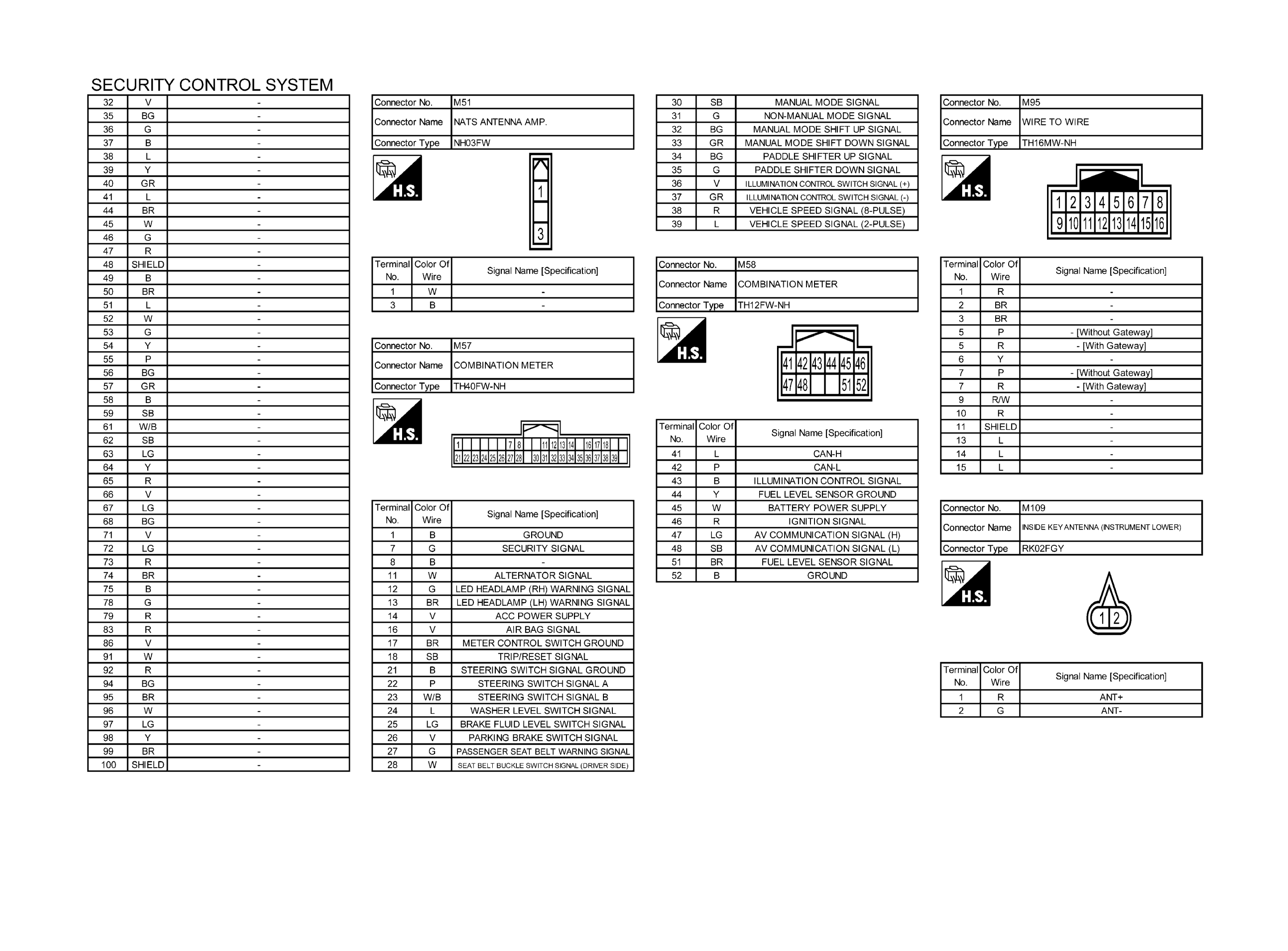

Fig 5: Security Control System Connectors (5 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

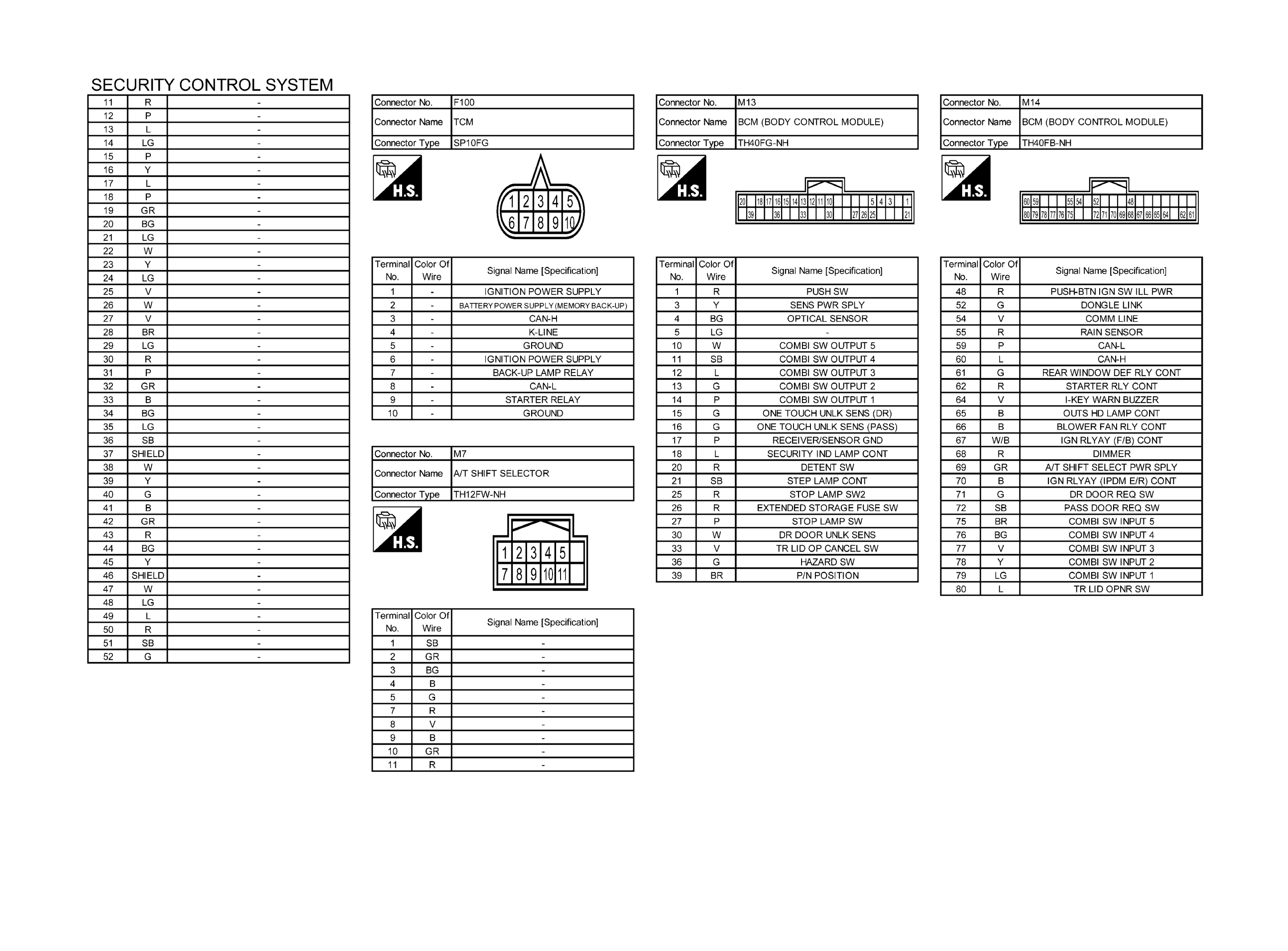

Fig 6: Security Control System Connectors (6 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

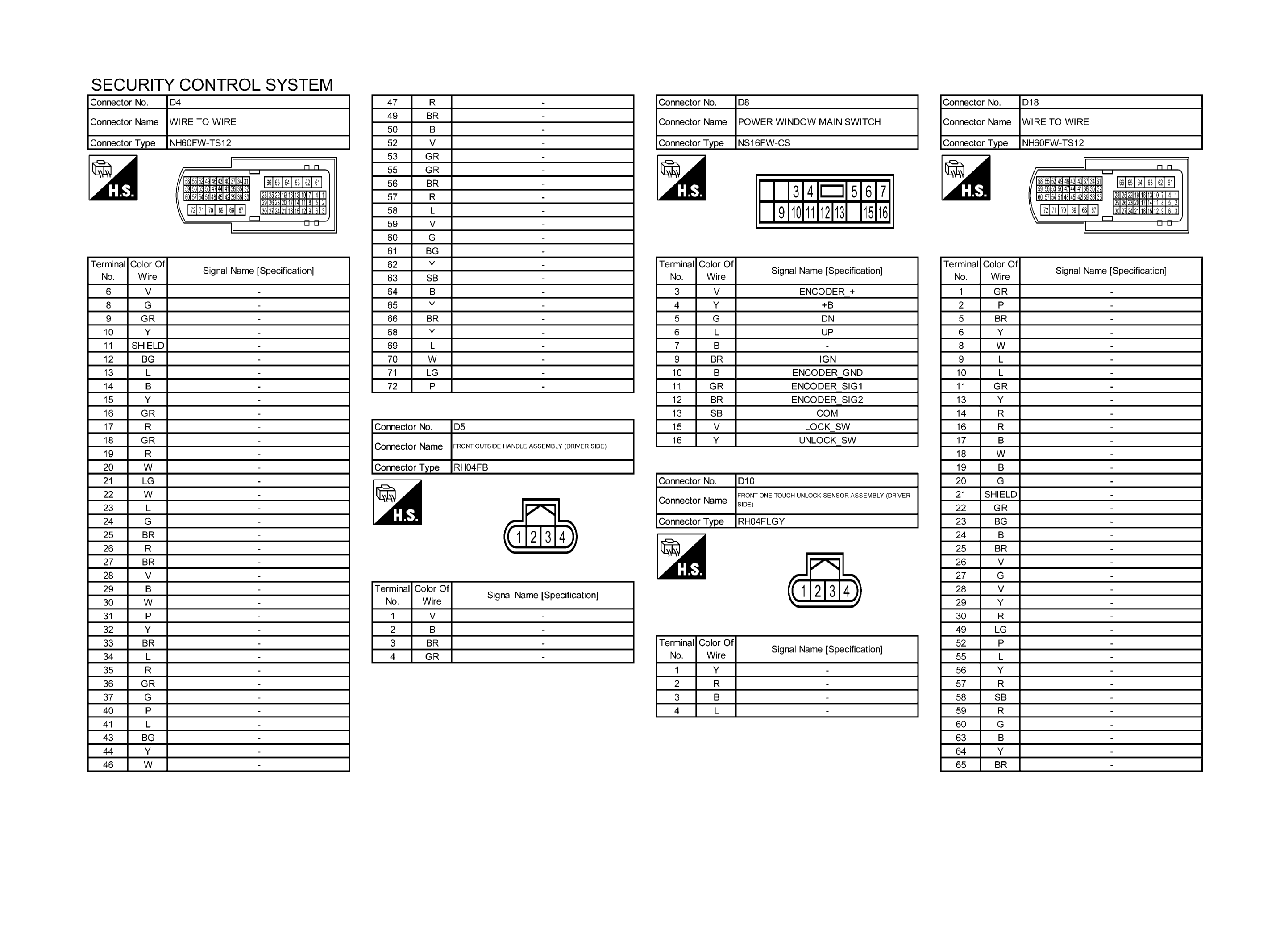

Fig 7: Security Control System Connectors (7 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Security Control System Connectors (8 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Security Control System Connectors (9 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Security Control System Connectors (10 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Security Control System Connectors (11 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Security Control System Connectors (12 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Security Control System Connectors (13 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Security Control System Connectors (14 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.
