System Diagram

NOTE:

Steering force control module is applied to models with Direct adaptive steering system.

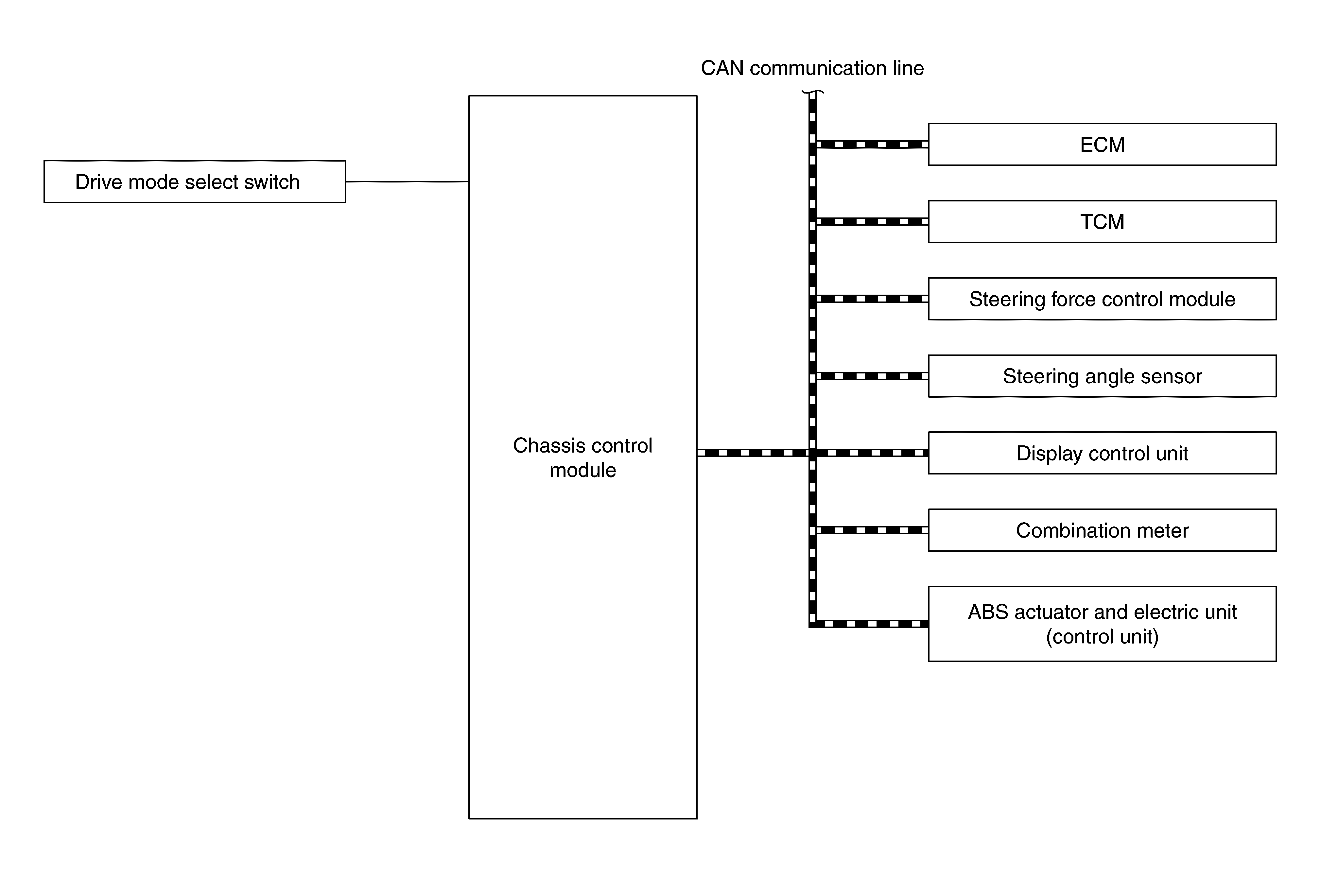

Fig 1: Active Trace Control System Diagram
G09159314Courtesy of NISSAN NORTH AMERICA, INC.
